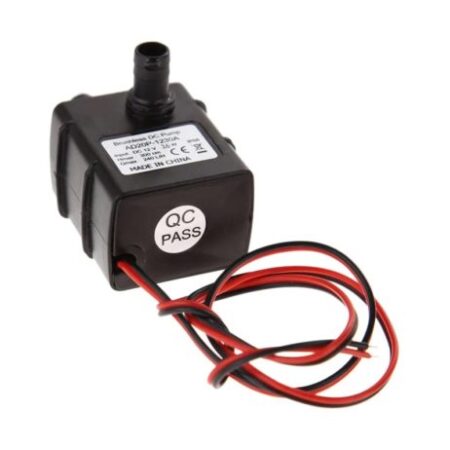

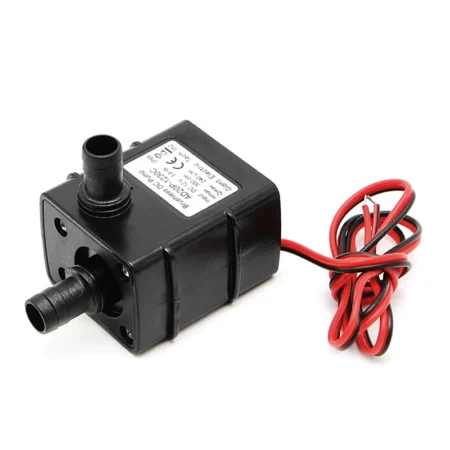

AD20P-1230C Ultra-Quiet DC 12V 3M 240L/H Brushless Submersible Water Pump with Cable 45cm
- Product: Water Pump
- Model: AD20P-1230C
- Voltage: 12V
- Current: 350mA.
- Power consumption: 3.6W.
- الوصف
الوصف
AD20P-1230C Ultra-Quiet DC 12V 3M 240L/H Brushless Submersible Water Pump with Cable 45cm
A brushless dc pump is a 12v or 24v mini bldc motor drive dc water pump that uses magnetic force to rotate its impeller to pressurize and transport water for fluid lifting, booster, and circulation system. It is a kind of typical mechatronic product.
You might be searching for a pump that operates on 12 V and gives an output of above 240L/H then this could be the best choice for your project.
This Ultra-Quiet DC 12V 3M 240L/H Brushless Submersible Water Pump is a low-cost, small size Submersible Pump. It can take up to 240 liters per hour with a very low current consumption from 300mA. Just connect the tube pipe to the motor outlet, submerge it in water, and power it. The black color pump comes with a heavy-duty cable and a 5mm DC female jack at the end to connect directly to the 12V power supply. It is widely used in prototype projects as well as for decoration purposes.
Features:
- Brand new and high quality.
- Brushless, permanent magnetic rotor.
- Super long working life(more than 30000 hours).
- Adopt high performance ceramic shaft.
- The axis is enclosed with static sealing, not dynamic, which can avoid leaking problems.
Amphibious design. - Submersible installation and entirely waterproof.
- low consumption
Packages Includes:
1 x Brushless Submersible Water Pump
| Noise | less than35db |
| Pump material | ABS Pastic |
| Condition of use | continuously |
| Fluids | Water, oil, gasoline, acid and alkali solution. |
| Working tempereture | 0 ~ 75c. |
| Power Consumption | 3.6W |
| Rated Voltage | 12V DC |
| Max Current | 350mA |
| Max flow rate | 4L/MIN(1.06G/MIN) |
| Max Head(lift height) | 3M |
| Water proof class | IP68(can be submersible installed). |
| Shipment Weight | 0.076 kg |
| Shipment Dimensions | 7 × 7 × 5 cm |
