RELIFE RL-601L Card Slot Mobile Phone Motherboard Repair Fixture

RELIFE RL-601L Card Slot Mobile Phone Motherboard Repair Fixture is a professional multi-purpose fixture designed for mobile phone motherboard repair, soldering, chip removal, camera maintenance, fingerprint repair, board positioning, and accurate clamping during delicate repair work. It provides a stable working platform for technicians who need to secure small and irregular phone motherboards without movement while working with hot air, soldering stations, microscopes, or precision repair tools.

Product Overview

The RELIFE RL-601L is built for repair benches that require stable, repeatable, and accurate motherboard holding. Unlike simple flat holders, this fixture uses a double-slot and three-axis clamping design that allows the technician to position different board shapes more precisely. The adjustable card slots and step sliders make it suitable for a wide range of mobile phone motherboards, small electronic boards, fingerprint modules, camera modules, and component-level repair tasks.

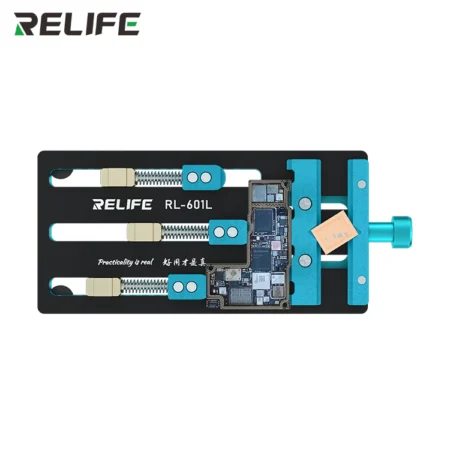

The fixture supports motherboard soldering, chip deglue, board repair, fingerprint maintenance, camera maintenance, and general clamping work. Its structure helps keep the board steady while the technician works with heat, solder, flux, tweezers, grinding tools, or inspection equipment. Stable clamping is especially important when removing shields, reworking chips, replacing connectors, cleaning pads, or handling small board sections that must not move during repair.

The double-slot and three-axis design gives the fixture better flexibility. The board can be held using multiple card positions, while the active splint and fixed shaft help lock the workpiece in place. The push rod and buffer spring system provide controlled pressure, helping to hold the motherboard firmly without sudden rebound. This makes the tool practical for daily mobile repair work where different motherboard sizes and shapes are handled frequently.

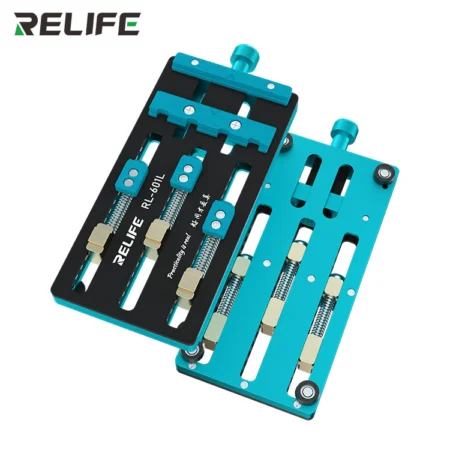

The bottom plate uses an alloy steel structure for strength and stability. This base gives the fixture a solid feel on the bench and helps resist deformation during repeated use. The surface is designed for practical repair work, while the silicone anti-slip foot pads help keep the holder stable on the table. The high temperature resistant and anti-corrosion design makes the RELIFE RL-601L suitable for professional workshops where hot air and soldering tools are used regularly.

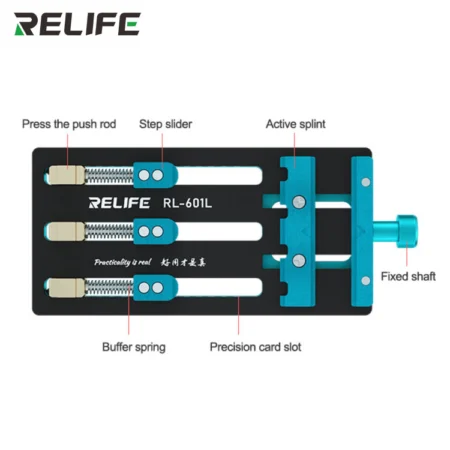

The fixture includes precise card slots, step sliders, a push rod structure, buffer springs, an active splint, a fixed shaft, an alloy steel bottom plate, and silicone wear-resistant foot pads. These details make it easier to secure the motherboard and reduce movement during delicate work. It is a useful tool for mobile phone repair technicians, electronics service centers, motherboard repair workshops, and professional maintenance benches.

Key Features

• Professional motherboard repair fixture: designed for mobile phone motherboard clamping, soldering, chip removal, and board maintenance.
• Double-slot design: provides more card positions for different board shapes and repair scenarios.
• Three-axis clamping structure: improves positioning stability during precision repair work.
• Two-way precise clamping: helps hold the motherboard securely from multiple directions.
• Supports multiple maintenance needs: suitable for soldering, chip deglue, board repair, fingerprint repair, and camera maintenance.
• Precise card slots: make board positioning easier and more stable.
• Step sliders: allow smoother adjustment and practical daily use.
• Push rod structure: helps lock the board quickly and accurately.
• Buffer spring system: provides controlled pressure and helps reduce rebound.
• Spiral shaft fixing design: offers stable fixation and easy adjustment.
• Alloy steel bottom plate: strong, stable, high temperature resistant, and corrosion resistant.
• Silicone anti-slip pads: improve bench stability and reduce slipping during operation.
• Compact tool size: suitable for repair desks, service centers, and mobile technician kits.

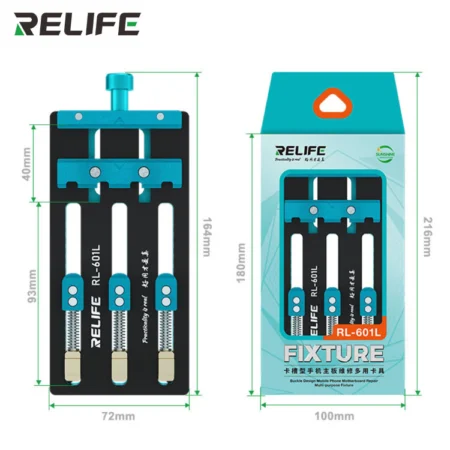

Technical Specifications

Applications

• Mobile phone motherboard repair and clamping.
• Chip removal, chip deglue, and hot air rework tasks.
• Board soldering and component-level repair.
• Fingerprint module maintenance and positioning.
• Camera module repair and small board fixation.
• Connector replacement and pad cleaning work.
• Microscope repair bench use.
• Professional service center and mobile repair workshop use.

Why This Fixture Is Useful for Repair Work

Motherboard movement during repair can cause damaged pads, inaccurate heat control, weak solder joints, or unnecessary rework. The RELIFE RL-601L helps solve this problem by holding the board in a stable position while allowing access to the repair area. The precise card slot structure is especially useful when working on small boards or irregular motherboard sections that cannot be held securely by hand.

The step sliders and push rod design allow quick positioning, while the active splint and fixed shaft provide stable clamping. This makes the fixture suitable for repeated daily use in repair environments where speed and accuracy matter. The tool is also compact enough to stay on the repair desk without taking too much space.

Package Contents

• 1 × RELIFE RL-601L Card Slot Mobile Phone Motherboard Repair Fixture

Important Notes

• Use the fixture on a flat and stable workbench.
• Adjust the clamping pressure carefully according to the board thickness and shape.
• Do not apply excessive pressure on thin or fragile motherboard sections.
• Keep the fixture clean from flux, solder residue, and dust after repair work.
• Allow the tool to cool naturally after nearby hot air use.
• Product color shade, packaging print, and minor visual details may vary slightly by batch while the main function remains the same.
