5V Micro USB DIY Step Up Power Bank Charging Module with Charging Protection

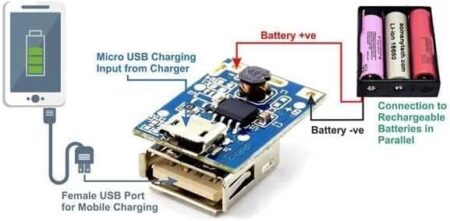

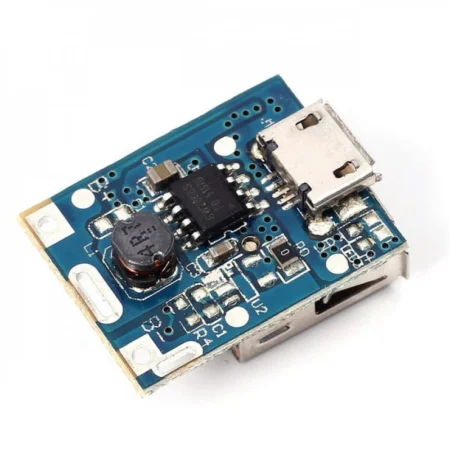

Make your own 5V (Approx) power bank from single-cell Li-po or Li-ion battery (18650 or 14500) with this Booster and Charger Power Bank Module. It is based on 134N3P IC.

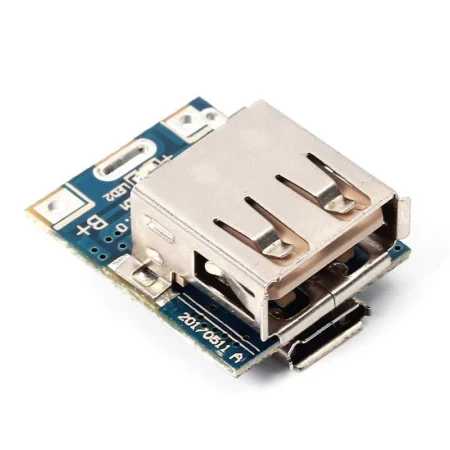

It comes with UBS A Receptor at one side (output) and another side is the USB Micro B receptor for the input charging source.

Features:

• 1A (Approx) Power Bank Module
• Support Single Cell Lithium Battery, including Lipo and Li-ion
• Support 18650 and 14500 Li-ion battery
• Charging and discharging indication
  • Charging: RED LED Blink fast
  • Full Charge: RED LED Blink Slow
• Internally installed charging and discharging power MOS
• Preset 4.2V charging voltage, precision ±1%
• Max 8uA standby current
• Integration charging management and discharging management
• Intelligent temperature control and overtemperature protection
• Integration output overvoltage protection, short circuit protection, overload protection
• Integration overcharging and over-discharging protection
• Support trickle mode and zero voltage charging
• Supply Voltage: 3.7V~5.5VDC
• Maximum Charging Current: 1A (max)
• Output Discharge Voltage (Boost): 5VDC (Approx)
• Maximum Discharge Current: 1A
• Battery Cutoff Discharge Voltage: 2.9V
• Discharging Efficiency: 85%
• Dimension: 23mm x 18mm x 10mm
• Weight: 3gm

Note: All the cells that are connected to the power bank module should be in a paraller, please don’t connect the cells in series as this will damage the power back module and cause a heating issue in it and eventually the power bank module will stop working.

Note: This module is not suitable for running a DC motor,  as the module is not able to handle the high current requirement of a DC motor but it can run a small DC Toy motor, whose current requirement is less than 100milli amp.
