Description

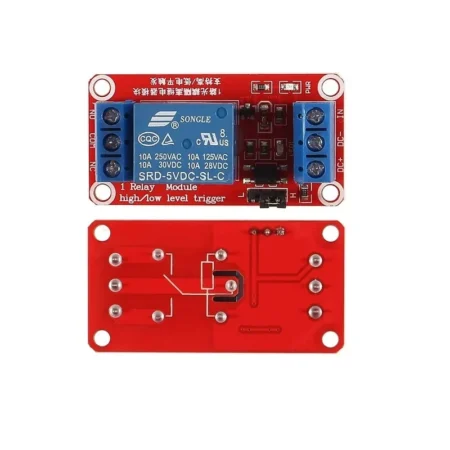

5V 1 Channel Relay Module High and Low Level Trigger Relay Module is small and easy to use. Use it to control one 240V power appliance directly from Arduino, Raspberry Pi, and other microcontrollers or low-voltage circuits. Perfect for switching 240V appliances—lights, fans, etc.—and even high-power motors at lower voltages.

The board uses a high-quality relay, which can handle a maximum of 10A/250 V AC or 15A/125 V AC. Each relay has all three connections—common, normally open, and normally closed—brought out to three-pin screw terminals, which make it easy to make and remove connections. The board has a power indication and a relay status LED to ease debugging. The board can accept control inputs within a wide range of voltages, from 3V to 5V. Power input and relay control signals are brought to header pins on the board. Hence, the board can be easily interfaced with our development boards using jumper wires.

Note: The actual product may vary slightly in color and components from the image shown, depending on quantity availability.

Specifications and Features of 5V 1 Channel Relay Module High and Low Level:

1. Trigger: High or Low  Level
2. Equipped with high-current relay : 15A @ 125V AC or 10A @ 250V AC
3. Standard interface that can be controlled directly by microcontroller (Arduino, 8051, AVR, PIC, DSP, ARM)

Package Includes:

1 x 1-Channel Relay Module 5V High and Low Level Trigger Relay Module
