Description

BT002 1/4 Inch Manual Hand Drill 0.6-6mm

The BT002 manual hand drill is a practical hand-operated drilling tool designed for controlled, low-speed drilling without electricity. Its geared hand-crank mechanism gives the user direct control, making it useful for electronics work, PCB drilling, model making, crafts, repairs and workshop applications where precision is more important than high speed.

The drill is equipped with a keyed 3-jaw chuck rated for drill bits from 0.6mm to 6mm. The quad-gear transmission shown on the product packaging transfers the turning motion of the crank to the chuck, while the main handle helps keep the tool stable during operation.

Key Features

• Fully manual operation with no electricity or battery required.
• 1/4-inch keyed 3-jaw chuck.
• Accepts drill bits from 0.6mm to 6mm.
• Quad-gear hand-crank transmission.
• Controlled low-speed drilling for delicate work.
• Carbon-steel construction with 45# steel stated by the supplier.
• Comfortable ABS main handle and crank grip.
• Suitable for clockwise or counterclockwise manual rotation.
• Chuck can be removed and installed using its threaded connection.
• Compact, portable and easy to use without a power source.

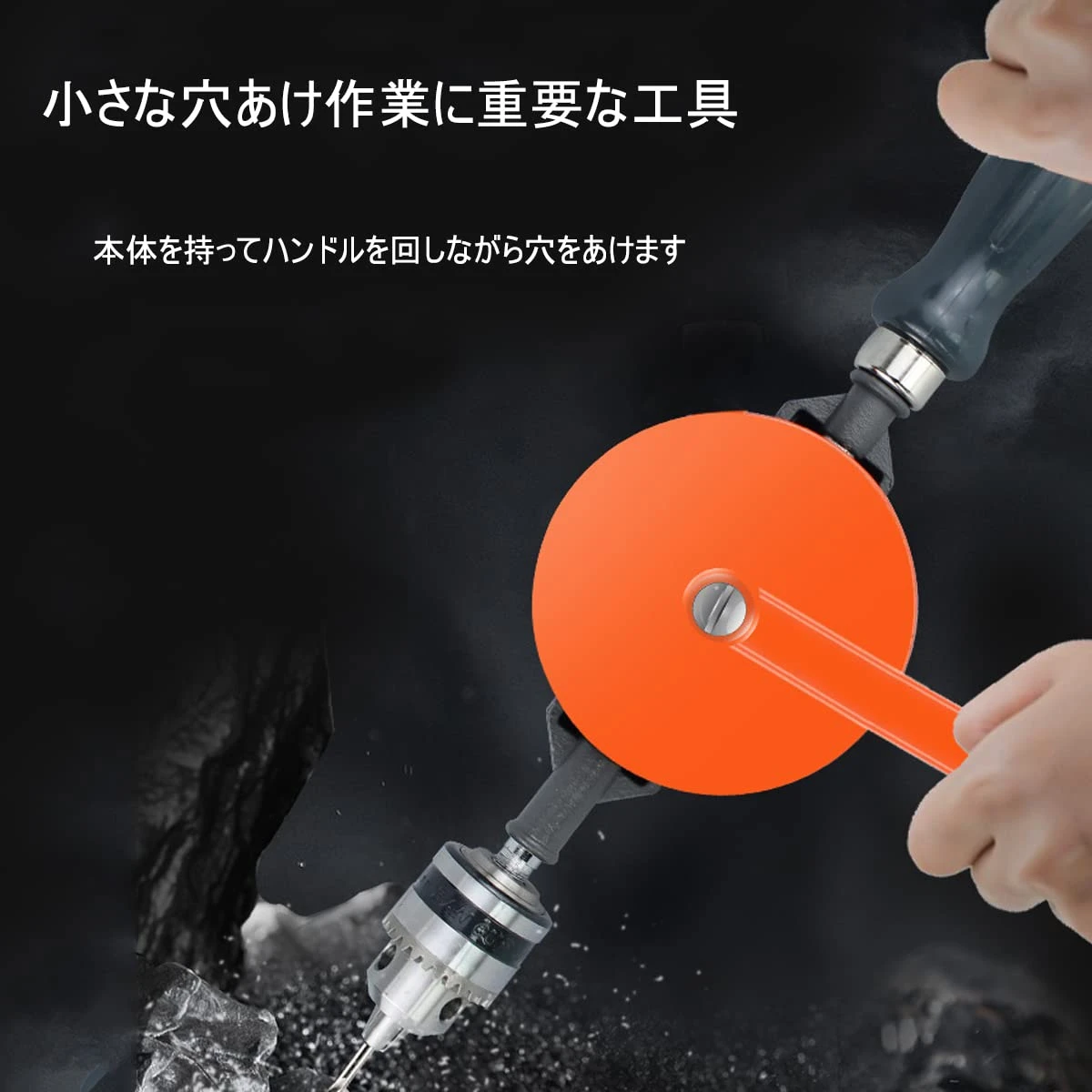

How It Works

Install a compatible drill bit in the chuck and tighten it securely with the supplied chuck key. Hold the main handle firmly with one hand, position the drill bit on the marked drilling point, then rotate the side crank with the other hand. Apply light, steady pressure and allow the bit to cut gradually.

Technical Specifications

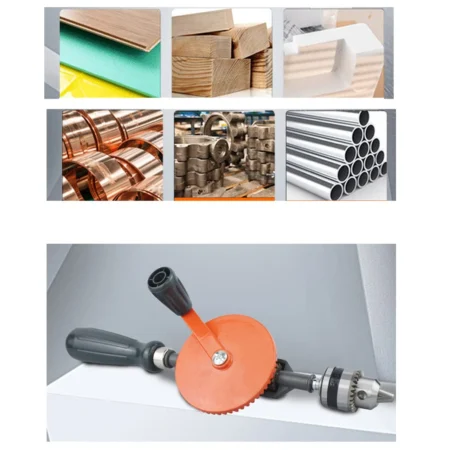

Compatible Materials

• PCB boards with a suitable small drill bit and backing surface.
• Wood and bamboo.
• Plastic and acrylic sheets.
• Foam board and craft materials.
• Fiberglass sheets.
• Brass, aluminum and other relatively soft metals.
• Light fabrication and model-making materials.

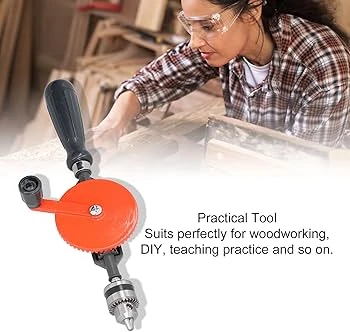

Applications

• Electronics prototyping and PCB work.
• DIY and handicraft projects.
• Model making and educational projects.
• Jewelry and small decorative work.
• Plastic and acrylic fabrication.
• Woodworking crafts.
• Small workshop repairs.
• Precision pilot-hole drilling.

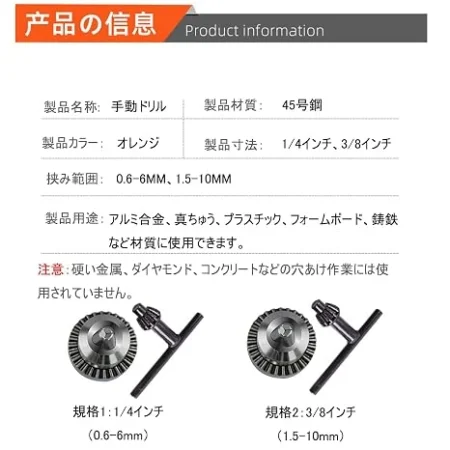

Chuck Installation and Drill Bit Replacement

1. Screw the keyed chuck securely onto the threaded drill shaft.
2. Open the chuck jaws using the supplied chuck key.
3. Insert a compatible drill bit straight into the center of the chuck.
4. Tighten the chuck evenly and confirm that the bit is centered.
5. After use, loosen the chuck with the key before removing the bit.

Important Usage Notes

• Drill bits are not included and must be purchased separately.
• Secure the workpiece before drilling.
• Use the correct drill-bit type and diameter for the material.
• Use light, controlled pressure; excessive force may damage the bit or workpiece.
• Not intended for concrete, stone, diamonds or extremely hard metals.
• Actual product color and minor finishing details may vary by production batch.

Package Contents

• 1 × BT002 manual hand drill body.
• 1 × 1/4-inch keyed 3-jaw chuck.
• 1 × Chuck key.

Note: Drill bits are not included.
