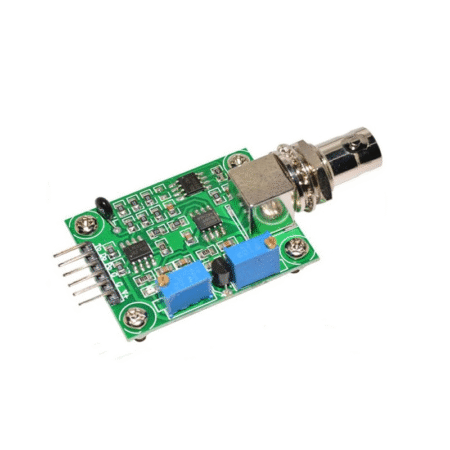

Save -23% Liquid PH Value Detection Sensor E-201-9 Ph0-14 With PH Electrode Probe BNC Monitoring Control Board

Liquid PH Value Detection Sensor E-201-9 Ph0-14 With PH Electrode Probe BNC Monitoring Control Board

Original price was: 2,200.00 EGP.Current price is: 1,700.00 EGP.

Liquid PH Value Detection Sensor E-201-9 Ph0-14 With PH Electrode Probe BNC Monitoring Control Board

  1. PH range: 0-14 PH
  2. Temperature range: 0-6=80℃
  3. Zero-point: 7 ± 1PH
  4. Alkali Error: 0.2PH
  5. Theoretical Percentage Slope: ≧98.5%
  6. Internal Resistance: ≦250MΩ
  7. Response Time: ≦1min
SKU PH Value Detection Sensor E-201-9 0-14 SKU SYS x3604 Availability In stock
Quantities are confirmed after reviewing your order. Orders are normally prepared and shipped within 3–5 business days. Online availability does not necessarily mean the product is currently available at the branch.
تحتاج مساعدة؟ تواصل معنا
☎ Need help? Call us 0104 453 9059
Add to wishlist
Share
Fast shipping Delivery across Egypt
Flexible payment Cash and online options
Quantity confirmation Confirmed after order review
Technical support Help choosing compatible parts
Tags
Arduino Project E-201 PH Electrode Probe pH Meter PH Sensor PH Value Detection Sensor Ph0-14 Ramadan 2026

Description

Liquid PH Value Detection Sensor E-201 Ph0-14 With PH Electrode Probe BNC Monitoring Control Board

This is a Liquid pH Value Detection Sensor for Arduino. This is used in water quality testing and Aquaculture

The pH stands for the power of hydrogen, which is a measurement of the hydrogen ion concentration in the body. The total pH scale ranges from 1 to 14, with 7 considered to be neutral. A pH less than 7 is said to be acidic and solutions with a pH greater than 7 are basic or alkaline.

The PH electrode has a single cylinder that allows direct connection to the input terminal of a pH meter, controller, or any pH device which has a BNC input terminal. The pH electrode probe is accurate and reliable that can give almost instantaneous readings.

Connection Diagram of Liquid pH Value Detection Sensor for Arduino:

567

This is Electrode Probe for Liquid pH Value Detection Sensor Module. Need to measure water quality and other parameters but haven’t got any low-cost pH meter? Find it difficult to use with Arduino?

The electrode is made of a pH glass electrode and a reference electrode combined composite electrode, which is pH meter measuring sensor for measuring the concentration of an aqueous solution of H (pH value), it is widely used in various fields to be detected in the pH.

The PH electrode has a single cylinder that allows direct connection to the input terminal of a PH meter, controller, or any PH device which has a BNC input terminal. The PH electrode probe is accurate and reliable that can give almost instantaneous readings.

Features :

  1. BNC Connector is suitable for most PH meter and controller.
  2. Suitable for a wide range of application: Aquariums, Hydroponics, Laboratory, etc.

Specification of Electrode Probe :

pH Range0-14 pH
Operating Temperature (°C)0 to 80
Zero Point7±0.5 pH
Alkali Error0.2 pH
Theoretical Percentage Slope≧98.5%
Internal Resistance≦250MΩ
Response Time≦2min
Terminal BlocksBNC plug
Total Probe Length (m)Approx 1m
Weight (gm)56
Shipment Weight0.07 kg
Shipment Dimensions24 × 4 × 4 cm

Specification of Liquid pH Value Detection Sensor:

Heating Voltage (V)5±0.2
Working Current (mA)5 to 10
Detection Concentration RangePH0-14
Detection Range of Temperature (°C)0 to 60
Response Time (s)≤5
Stability Time (s)≤60
Power Consumption (W)≤0.5
Operating Temperature (°C)-10 to 50
Working Humidity (%RH)95
PCB Size ( L x W ) mm42 x 32
Height (mm)16
Weight (gm)20
Shipment Weight0.022 kg
Shipment Dimensions8 × 4 × 2.5 cm

Package Includes :

1 x Electrode Probe for Liquid pH Value Detection Sensor Module.

1 x Liquid pH Value Detection Sensor For Arduino

1 x set of Mounting Accessories
