LM2596HVS DC-DC Buck Converter 4.5-50V to 3-40V Adjustable Step Down Power Module
Original price was: 90.00 EGP.70.00 EGPCurrent price is: 70.00 EGP.
LM2596HVS DC-DC Buck Converter 4.5-50V to 3-40V Adjustable Step Down Power Module
- Input voltage: 4.5-50V,
- Output voltage: (3-35V) continuously adjustable (recommended load debugging).
- Output current: rated current 2A, 3A maximum
- Output Power: 15W maximum
Quantities are confirmed after reviewing
your order. Orders are normally prepared
and shipped within 3–5 business days.
Online availability does not necessarily
mean the product is currently available
at the branch.
تأكيد الكميات بيتم بعد مراجعة الأوردر،
وتجهيز وشحن الطلب بيستغرق عادة من
3 إلى 5 أيام عمل.
توافر المنتج على الموقع لا يعني بالضرورة
توافره داخل الفرع، لذلك اعمل الأوردر
مسبقًا لتأكيد الكمية وتجهيزه.
You are already subscribed
We will notify you when this
product is available again.
أنت مشترك بالفعل، وسنرسل لك
تنبيهًا عند توافر المنتج.
Fast shipping
Delivery across Egypt
Flexible payment
Cash and online options
Quantity confirmation
Confirmed after order review
Technical support
Help choosing compatible parts
- Description
- Reviews (0)
Description

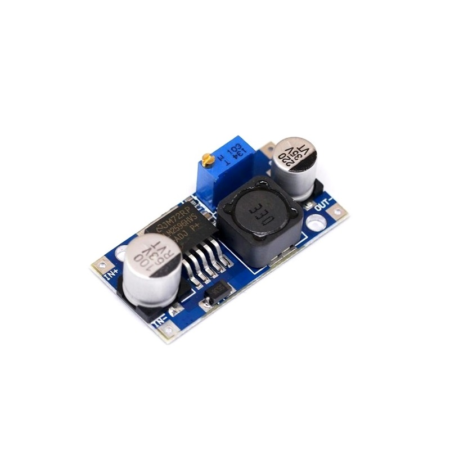

LM2596HVS DC-DC Buck Converter 4.5-50V to 3-40V Adjustable Step Down Power Module
LM2596HVS module is a high input voltage version of the LM2596 Module. The LM2596HV module is a DC to DC converter buck converter module with an input voltage range of 4.5 volts to 50 volts and an output of 3 volts to 40 volts. This output is variable and can be varied using the on-board multi-turn potentiometer.
Features:
- High efficiency up to 92%.
- 4.5 Volt – 50 Volt adjustable input voltage range.
- 3 volt – 40 Volts adjustable output voltage range.
- With over-current and over-temperature protection, safe for use.
- Fine workmanship, long life span.
- Can set the float voltage and charging current.
- Special design enhanced heating radiating.
Package Includes:
1 x LM2596HVS DC-DC Buck Converter 4.5-50V to 3-40V Adjustable Step Down Power Module
| Model Type: | Buck Converter Module |
|---|---|
| Conversion efficiency | up to 92% |
| Switching Frequency (KHz) | 150 |
| Output Ripple | 30mA (maximum) |
| Voltage regulation (U) | ± 0.5% |
| Operating Temperature (°C) | -40 to 85 |
| Length (mm): | 43 |
| Width (mm): | 20 |
| Height (mm): | 12 |
| Weight (g): | 11 |
| Output Voltage (V): | 3 ~ 35 |
| Load Regulation | ±1% |
| Shipping Weight | 0.016 kg |
| Shipping Dimensions | 6 × 6 × 2 cm |
