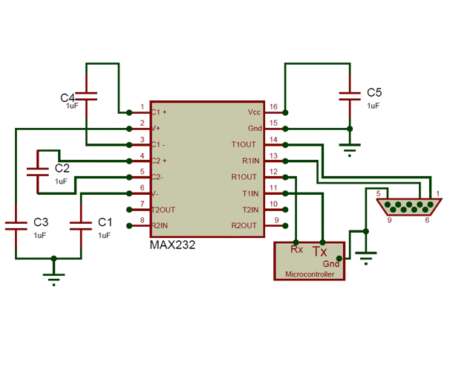

MAX232CPE PDIP-16 RS-232 Interface IC
Original price was: 25.00 EGP.18.00 EGPCurrent price is: 18.00 EGP.
- Operates With Single 5V Power Supply
- LinBiCMOS Process Technology
- Two Drivers and Two Receivers
- ±30-V Input Levels
- Low Supply Current . . . 8 mA Typical
- Meets or Exceeds TIA/EIA-232-F and ITURecommendation V.28
- Designed to be Interchangeable WithMaxim MAX232
Quantities are confirmed after reviewing
your order. Orders are normally prepared
and shipped within 3–5 business days.
Online availability does not necessarily
mean the product is currently available
at the branch.
تأكيد الكميات بيتم بعد مراجعة الأوردر،
وتجهيز وشحن الطلب بيستغرق عادة من
3 إلى 5 أيام عمل.
توافر المنتج على الموقع لا يعني بالضرورة
توافره داخل الفرع، لذلك اعمل الأوردر
مسبقًا لتأكيد الكمية وتجهيزه.
Fast shipping
Delivery across Egypt
Flexible payment
Cash and online options
Quantity confirmation
Confirmed after order review
Technical support
Help choosing compatible parts
- Description
- Additional information
Description
The MAX232 device is a dual driver/receiver that includes a capacitive voltage generator to supply EIA-232 voltage levels from a single 5-V supply. Each receiver converts EIA-232 inputs to 5-V TTL/CMOS levels. These receivers have a typical threshold of 1.3 V and a typical hysteresis of 0.5 V, and can accept ±30-V inputs. Each driver converts TTL/CMOS input levels into EIA-232 levels. The driver, receiver, and voltage-generator functions are available as cells in the Texas Instruments LinASIC library. The MAX232 is characterized for operation from 0°C to 70°C. The MAX232I is characterized for operation from –40°
Note: Image may vary from actual product in terms of Manufacturer/Brand name according to the availability.
Features:
- Operates With Single 5-V Power Supply
- LinBiCMOS Process Technology
- Two Drivers and Two Receivers
- ±30-V Input Levels
- Low Supply Current . . . 8 mA Typical
- Meets or Exceeds TIA/EIA-232-F and ITURecommendation V.28
- Designed to be Interchangeable WithMaxim MAX232
- ESD Protection Exceeds JESD 22– 2000-V Human-Body Model (A114-A)
- Applications: TIA/EIA-232-F, Battery-Powered Systems Terminals, Modems
Package Includes:
1 x MAX232CPE PDIP-16 RS-232 Interface IC
| Package/Case | PDIP-16 |
| Operating Voltage | 5 V |
| Max. Operating Current (mA) | 10 |
| Product Type | RS-232 Interface IC |
| Product Series | MAX232 |
| Operating Temperature Range (°C) | 0 to 70 |
| Dimensions (mm) LxWxH | 19.43 x 7.87 x 4.45 |
| Mounting Type | Through Hole |
| Data Rate | 120 kb/s |
| Number of Drivers | 2 Driver |
| Number of Receivers | 2 Receiver |
| Propagation Delay Time | 10 us |
| Shipment Weight | 0.1 kg |
| Shipment Dimensions | 8 × 6 × 3 cm |
