MOC3020 OptoCouplers

MOC3020 OptoCouplers

17.00 EGP
SKU MOC3020 Optocouplers SKU SYS Xb2982 Availability In stock
Quantities are confirmed after reviewing your order. Orders are normally prepared and shipped within 3–5 business days. Online availability does not necessarily mean the product is currently available at the branch. تأكيد الكميات بيتم بعد مراجعة الأوردر، وتجهيز وشحن الطلب بيستغرق عادة من 3 إلى 5 أيام عمل. توافر المنتج على الموقع لا يعني بالضرورة توافره داخل الفرع، لذلك اعمل الأوردر مسبقًا لتأكيد الكمية وتجهيزه.
تحتاج مساعدة؟ تواصل معنا
☎ Need help? Call us 0104 453 9059
Add to wishlist
Share
Fast shipping Delivery across Egypt
Flexible payment Cash and online options
Quantity confirmation Confirmed after order review
Technical support Help choosing compatible parts

Description

bv1 3dd37f33 303d 4fcb 9f40 a2ab9b91c386Featurs

  • 400 V Phototriac Driver Output

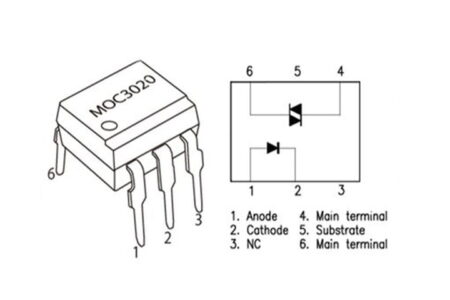

  • Gallium-Arsenide-Diode Infrared Source and Optically-Coupled Silicon Traic Driver (Bilateral Switch)
  • UL Recognized?File Number E65085
  • High Isolation?7500 V Peak
  • Output Driver Designed for 220 Vac
  • Standard 6-Terminal Plastic DIP
  • Directly Interchangeable with
    Motorola MOC3020, MOC3021, MOC3022,
    and MOC3023
  • typical 115/240 Vac(rms) applications
    • Solenoid/Valve Controls
    • Lamp Ballasts
    • Interfacing Microprocessors to 115/240 Vac Peripherals
    • Motor Controls
    • Incandescent Lamp Dimmers
