SANONDA KF9025H12S 12V DC Brushless Cooling Fan 90×90×25mm 0.30A

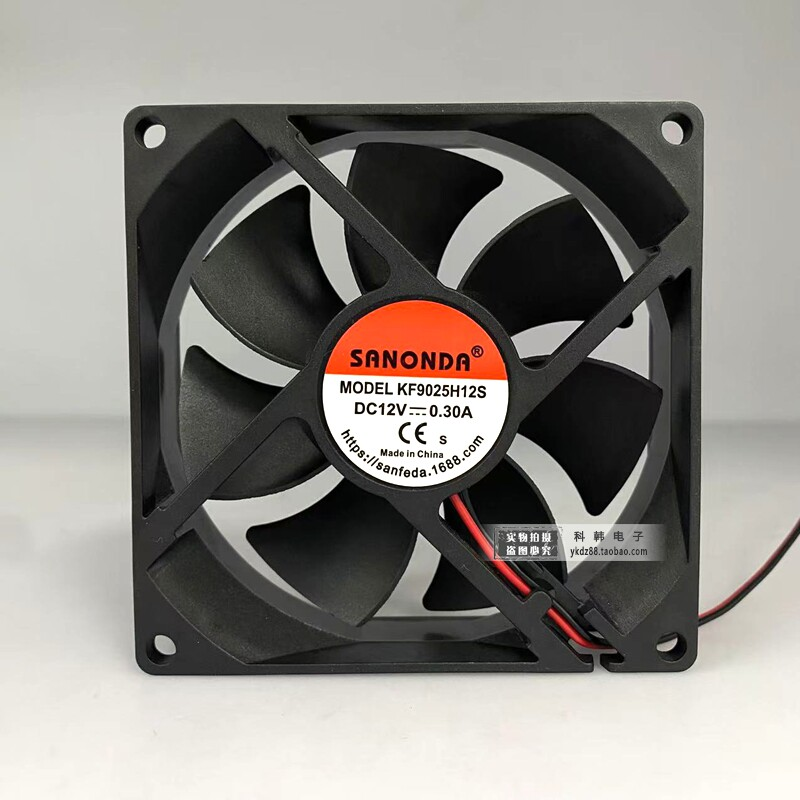

SANONDA KF9025H12S is a compact 12V DC brushless axial cooling fan for electronic cooling and ventilation applications. The fan label confirms model KF9025H12S, rated voltage DC 12V, and rated current 0.30A. Its 90 × 90 × 25mm frame makes it suitable for enclosures, control boxes, power supplies, and general forced-air cooling.

Key Features

• Brand: SANONDA.
• Model: KF9025H12S.
• Rated voltage: 12V DC.
• Rated current: 0.30A.
• Dimensions: 90 × 90 × 25mm.
• DC brushless axial cooling fan.
• Two-wire power connection.
• Square plastic frame with corner mounting holes.

Technical Specifications

Wiring / Connection

Connect the fan to a suitable regulated 12V DC power source using the two power wires. Confirm polarity before applying power and use a supply capable of providing at least the rated current with suitable margin.

Suitable Applications

• Electronic enclosure ventilation.
• Control panels and project boxes.
• Power supply and converter cooling.
• DIY electronics and prototyping.
• Cabinet and equipment airflow.
• Replacement cooling where the same voltage, size, and wiring are required.

Important Notes

• Verify dimensions and mounting points before installation.
• Use only with a suitable 12V DC source.
• Confirm polarity before connection.
• Do not obstruct airflow during operation.
• RPM, airflow, noise level, bearing type, and connector type are not listed because they are not confirmed by the available information.
