Description

Panasonic 18650 Rechargeable Li-ion Battery NCR18650B 3.6V 4.87A 3350mAh (New)

Features:

• High capacity and energy density For providing stable power to devices, Panasonic NCR18650B 3400mAh 4.87A rechargeable battery offer 3.6V average operating voltage in order to guarantee maximum output power.
• High discharge performance Panasonic NCR18650B 3400mAh 4.87A battery provide powerful and constant power to the device or equipment, voltage drop less with load, the discharge curve is quiet stable from full to empty.
• Applications widely Panasonic NCR18650B 3400mAh 4.87A battery can be widely use to all products desire high capacity for longest running time. For example, LED flashlights, toys and electronics power devices.
• Reliable and safe Panasonic and Sanyo are world famous brand, also the leader of Li-ion 18650 battery technology, provide only reliable batteries, it is 100% safe by using the battery according to the cell datasheet.
• Reverse polarity protection, short circuit, overload, over voltage and over temperature protection to prevent damage to batteries and devices.
• Safe and environmentally friendly, tested under strict quality control standards.

Specifications:

• Country of Origin: Japan
• Brand: Panasonic
• Model: NCR18650B
• Battery Type: Li-ion Battery
• Chemistry: Lithium-ion
• Recharging Availability: Rechargeable
• Size: 18650
• Shape: Cylindrical
• Terminals Style: Flat Top
• Charging Method: CCCV(Constant Current Constant Voltage)
• Datasheet: Panasonic NCR18650B
• Minimum Capacity: 3250mAh
• Maximum Capacity: 3400mAh
• Nominal Capacity: 3350mAh
• Nominal Voltage: 3.6V
• Charging Voltage (max): 4.2V ± 0.03V
• Discharge Cut-off Voltage: 2.75V
• Max Continuous Discharge: 4.87A
• Internal Resistance: ≤100mΩ
• Energy Density:  – 676 Wh/l (Volumetric)
• Charging Time: 4 hours
• Operation Temperature Range:
  • Charge: 0 °C to +40 °C
  • Discharge: -20 to +60℃
• Storage Temperature Range:
  • ≤ 1 month -20 °C to +25 °C
  • ≤ 3 months -20 to + 40°C
  • ≤ 1 year  -20 to + 20°C
• Battery Dimensions:
  • Diameter: 18.5mm
  • Length: 65.3mm
• Weight(max): 48.5gram
• Cycle life: About 1,000 cycle

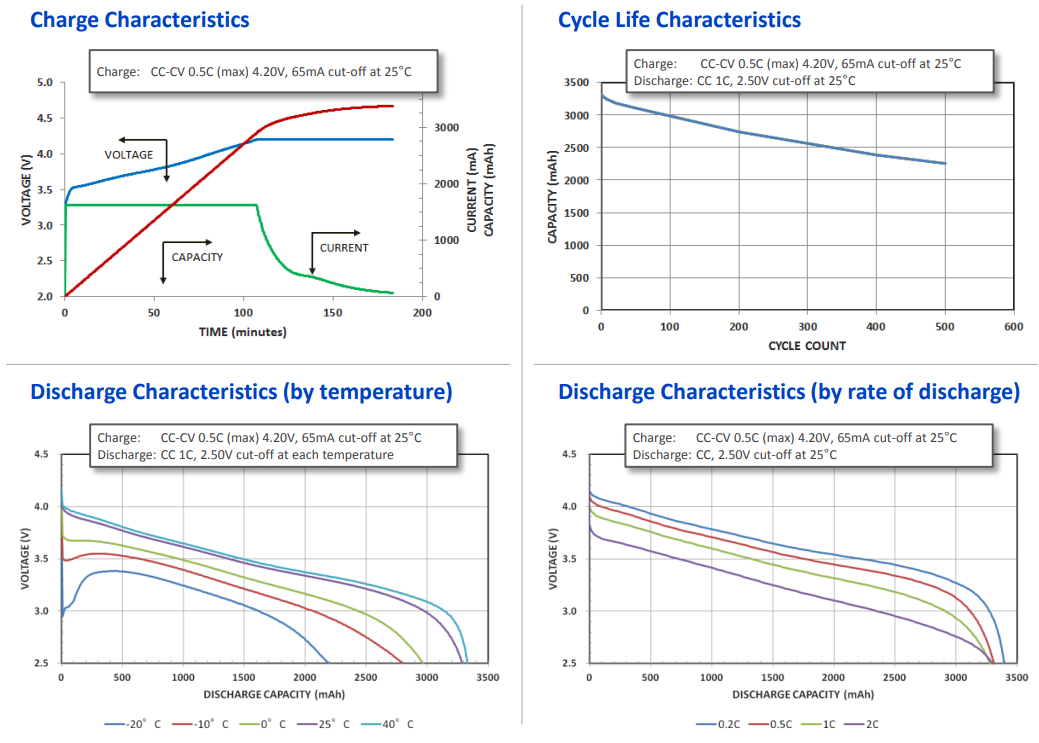

Characteristics Curves:

Applications:

• E-cigarettes.
• Vacuum cleaning application.
• Electric tools.
• Cordless Power Tools.
• RC model.
• E-bike.

Package Contents:

• 1 X  Panasonic 18650 Rechargeable Li-ion Battery NCR18650B 3.6V 4.87A 3350mAh (New)

Note:

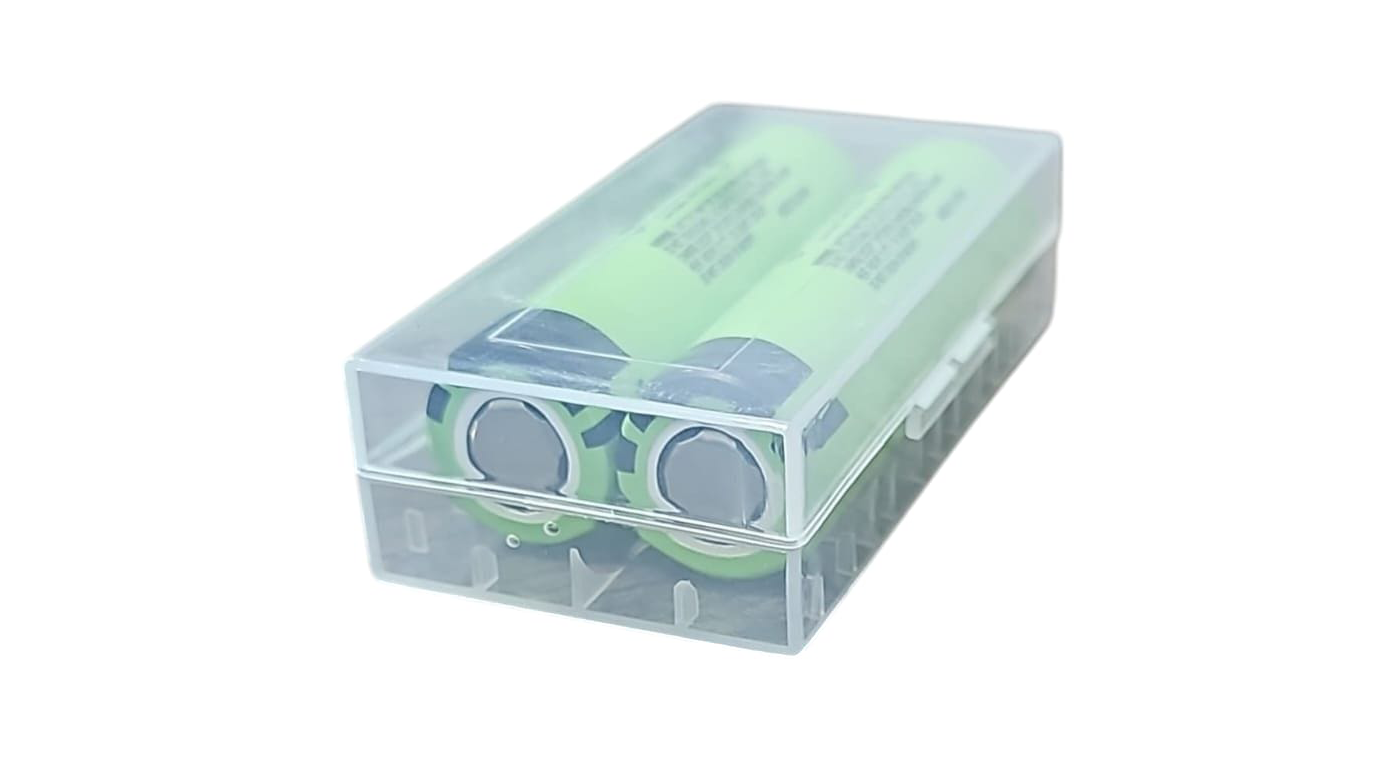

• Get a Free plastic box when you buy 2 pieces or multiple.

Datasheet:

• Panasonic NCR18650B
