reComputer J1010 compact Edge AI computer powered by NVIDIA Jetson Nano 4GB with 128 CUDA cores, 0.5 TFLOPs FP16, 16GB eMMC, Gigabit Ethernet, HDMI, dual CSI camera interfaces, M.2 Key E and 40-pin GPIO.
SKU
reComputer J1010
SKU SYS
X9600
Availability
In stock
Quantities are confirmed after reviewing
your order. Orders are normally prepared
and shipped within 3–5 business days.
Online availability does not necessarily
mean the product is currently available
at the branch.

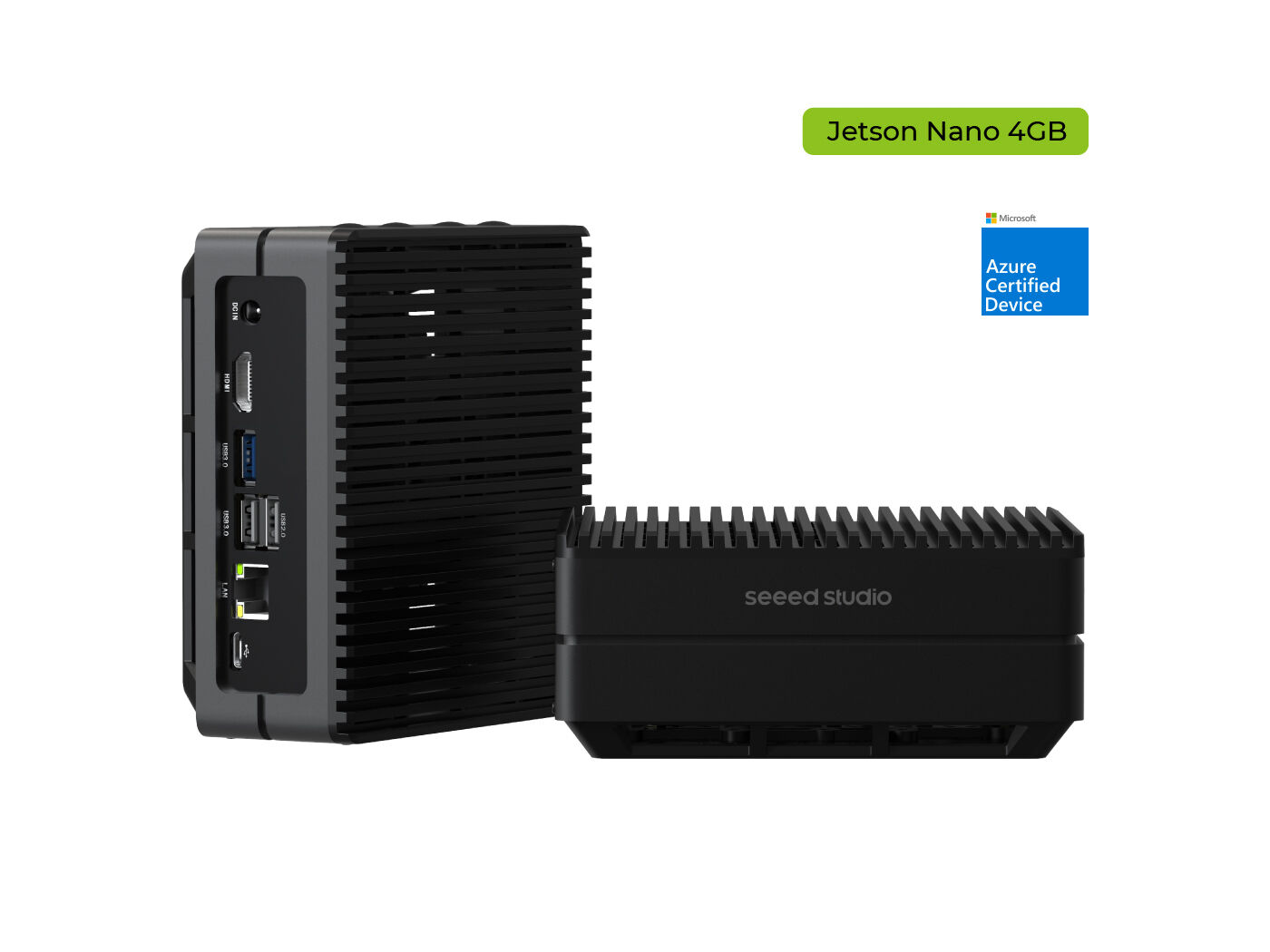

Seeed Studio reComputer J1010 Edge AI Computer with NVIDIA Jetson Nano 4GB – 128 CUDA Cores, 16GB eMMC, J101 Carrier Board
The reComputer J1010 is a compact, production-ready edge AI computer built around the NVIDIA Jetson Nano 4GB production module. It combines GPU-accelerated AI computing, rich multimedia capabilities and a wide range of embedded interfaces inside a compact aluminum enclosure with passive cooling.
Designed for machine vision, robotics, smart monitoring, AI inference, IoT gateways and embedded intelligence, the reComputer J1010 delivers approximately 0.5 TFLOPs FP16 of AI performance through 128 NVIDIA CUDA cores while maintaining low power consumption and a small physical footprint.
Built Around NVIDIA Jetson Nano 4GB
At the heart of the reComputer J1010 is the NVIDIA Jetson Nano 4GB production module. Unlike a basic microcontroller or conventional single-board computer, Jetson Nano includes an NVIDIA GPU designed to accelerate AI, computer vision and parallel workloads.
NVIDIA Jetson Nano 4GB production module.
128 NVIDIA CUDA cores.
Approximately 0.5 TFLOPs FP16 AI performance.
4GB memory.
16GB onboard eMMC storage.
Designed for long-term embedded deployment.
Edge AI Performance
The J1010 is intended to run AI inference directly at the edge without sending every frame or sensor reading to a cloud server. This reduces network dependency, latency and bandwidth usage while allowing real-time processing close to the camera or sensor.
Typical workloads include:
Object detection.
Image classification.
People detection.
Vehicle detection.
Face detection.
Pose estimation.
Speech processing.
Industrial visual inspection.
Smart camera applications.
Autonomous and robotic systems.
Technical Specifications
Manufacturer
Seeed Studio
Product
reComputer J1010
Seeed SKU
110061362
Compute Module
NVIDIA Jetson Nano 4GB Production Module
GPU
128 NVIDIA CUDA Cores
AI Performance
Approx. 0.5 TFLOPs FP16
Memory
4GB
Onboard Storage
16GB eMMC
microSD Slot
Yes, on J101 carrier board
Carrier Board
Seeed Studio J101
Ethernet
1 × RJ45 Gigabit Ethernet 10/100/1000
USB 3.0
1 × USB 3.0 Type-A
USB 2.0
2 × USB 2.0 Type-A
USB Device Mode
1 × USB Type-C
Power Input
USB Type-C 5V / 3A
Display Output
1 × HDMI Type-A
Camera Interfaces
2 × MIPI CSI-2, 15-pin, 1mm pitch
M.2 Expansion
1 × M.2 Key E 2230 slot
GPIO
1 × 40-pin multifunction header
RTC
RTC backup battery socket
Cooling
Passive heatsink + 5V PWM fan connector
Case
Aluminum enclosure
Dimensions
130 × 120 × 50 mm
USB Connectivity

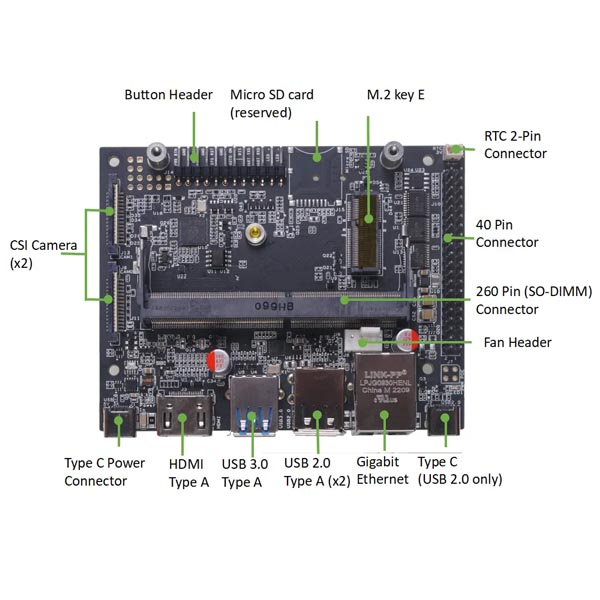

The J101 carrier board provides separate USB connections for peripherals, device mode and power:
1 × USB 3.0 Type-A for high-speed peripherals.
2 × USB 2.0 Type-A ports.
1 × USB Type-C for device mode and recovery/flashing workflows.
1 × USB Type-C dedicated to 5V/3A power input.
Networking
A built-in RJ45 Gigabit Ethernet port supports 10/100/1000 Mbps networking. This is particularly useful for AI cameras, edge servers, robotics, local inference systems and industrial installations where stable wired connectivity is preferred.
M.2 Key E Expansion
The J101 carrier board includes an M.2 Key E 2230 slot for compatible wireless expansion such as Wi-Fi and Bluetooth modules.
Important: the J1010 does not include an M.2 Key M NVMe slot. Storage expansion is instead possible through onboard eMMC, microSD and external USB storage.
Camera Support
The system provides two MIPI CSI-2 camera connectors, allowing compatible Jetson camera modules to be connected directly for machine vision and AI imaging applications.
This makes the J1010 suitable for:
Object detection cameras.
Industrial inspection systems.
People and vehicle counting.
Security and monitoring systems.
Robotics vision.
AI-enabled NVR applications.
Video Processing Capabilities
The Jetson Nano platform includes dedicated multimedia acceleration for H.264 and H.265 video processing.
Video Encoding
4K at 30 fps.
2 × 1080p at 60 fps.
4 × 1080p at 30 fps.
4 × 720p at 60 fps.
9 × 720p at 30 fps.
Video Decoding
4K at 60 fps.
2 × 4K at 30 fps.
4 × 1080p at 60 fps.
8 × 1080p at 30 fps.
9 × 720p at 60 fps.
Supported accelerated codecs include H.264 and H.265.
40-Pin Expansion Header
The J101 carrier board includes a Raspberry Pi-style 40-pin multifunction header for GPIO and embedded interfacing. This allows the system to connect to sensors, control electronics and expansion hardware.
GPIO behavior depends on the Jetson pin configuration and software environment, so the official NVIDIA and Seeed documentation should be followed when designing external circuits.
Power Efficiency
The reComputer J1010 is powered from a 5V / 3A USB Type-C supply. Seeed states that power consumption may be as low as approximately 5W depending on workload and operating mode.
Power adapter is not included.

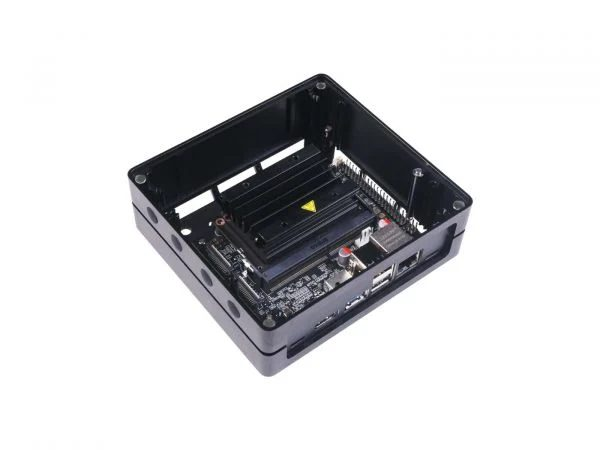

Cooling and Enclosure
The device is supplied in a compact aluminum enclosure with a passive heatsink. The J101 carrier board also provides a 5V PWM fan connector if active cooling is required by the application.
The enclosure includes mounting points that allow the system to be installed on a wall or integrated into a larger machine or cabinet.
Software and JetPack
Original reComputer J1010 units were supplied with NVIDIA JetPack 4.6.1. Seeed’s current J101 flashing resources also provide JetPack 4.6.6 images for supported Jetson Nano systems.
JetPack provides the Jetson software environment used for AI and accelerated computing, including technologies such as:
CUDA.
cuDNN.
TensorRT.
DeepStream.
Linux for Tegra.
Computer vision and multimedia libraries.
AI Frameworks and Development
The Jetson software ecosystem allows the J1010 to be used with many popular AI and computer vision frameworks and deployment workflows.
NVIDIA DeepStream.
TensorRT optimized inference.
OpenCV.
YOLO-based object detection.
Jetson Inference / Hello AI World.
Edge Impulse projects.
ROS / ROS2 robotics applications.
Example Applications
Smart retail systems.
Industrial inspection.
Logistics and warehouse monitoring.
Smart agriculture.
People and vehicle detection.
Road-sign detection.
Wildfire and smoke detection.
Hard-hat safety detection.
Pose estimation.
Robotics.
AI cameras and NVR systems.
Smart city applications.
Healthcare and laboratory AI systems.
What Is Included
reComputer J1010 enclosure.
Aluminum frame.
Acrylic cover.
NVIDIA Jetson Nano 4GB production module.
J101 carrier board.
Passive heatsink.
Not Included
USB Type-C 5V/3A power adapter.
CR1220 RTC backup battery.
Keyboard and mouse.
Display.
Camera.
Wi-Fi/Bluetooth M.2 Key E module unless separately supplied.
Mechanical Dimensions

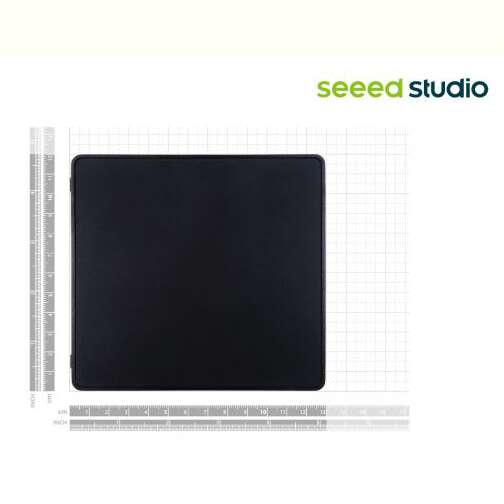

The complete system measures approximately 130 × 120 × 50 mm with the enclosure installed.
Product Lifecycle Note
The reComputer J1010 is based on the NVIDIA Jetson Nano platform. Seeed Studio currently lists the J10 series as discontinued following NVIDIA Jetson Nano module end-of-life. The platform remains useful for existing Jetson Nano projects, education, development, maintenance and compatible legacy deployments.
Seeed Studio is a hardware innovation company focused on embedded systems, IoT, edge computing, sensing, robotics and Edge AI platforms. Its product ecosystem includes development hardware, industrial devices, NVIDIA Jetson-based reComputer systems, sensors and tools designed to accelerate prototyping and real-world deployment.Seeed Studio develops hardware platforms for makers, engineers, researchers, system integrators and industrial solution providers, with a strong focus on open development ecosystems and scalable edge-computing applications.
