Description

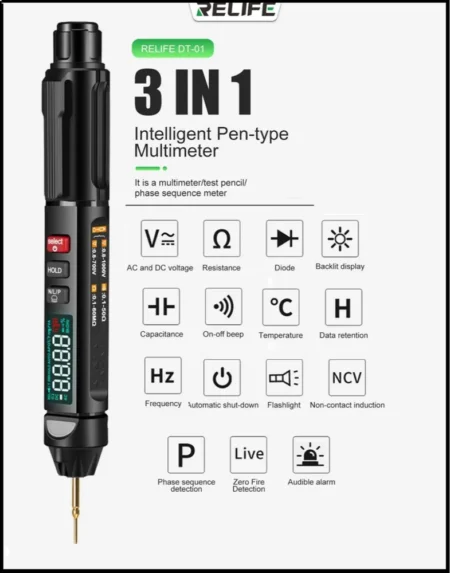

Relife DT-01 3in1 Pen-Type Digital Multimeter Auto Lntelligent Sensor Pen

Features:

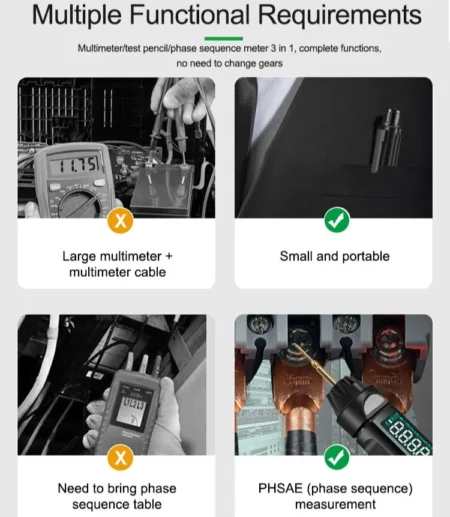

• Multiple functional requirements

• Multimeter/test pencil/phase sequence meter 3 in 1, complete functions, no need to change gears

• Large multimeter + multimeter cable

• Small and portable

• Flashlight lighting

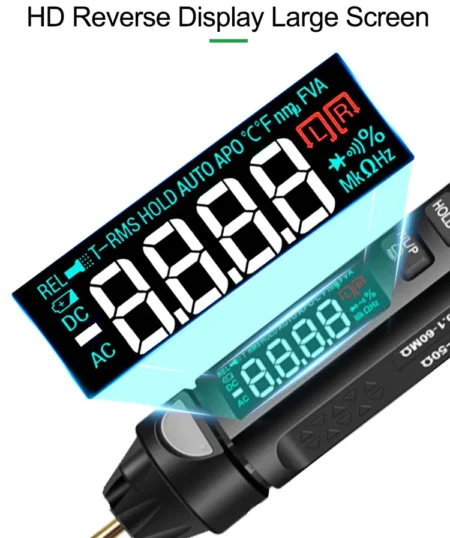

• HD reverse display large screen

• The VA reverse display screen can also display the displayed value in high-definition, data retention, color

• display is clearly visible in the dark environment, easy to find the line in the dark environment, to prevent electric shock

• Small and convenient / easy to carry

• Breaking the design scheme of conventional multimeters, pen-style design, intelligent and more convenient

• Suitable for home repairs, personal DIY enthusiasts, home repairs, etc.

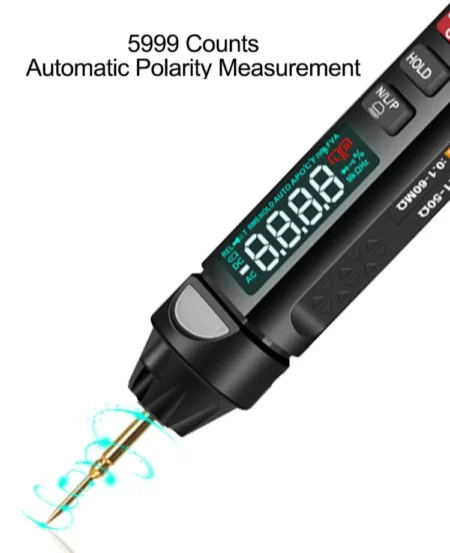

• Special sharp gold needle, (3 5/6) high precision/high sensitivity, rapid sampling is about 3 times per second

• (Automatic test AUTO-voltage V-capacitance F-on-off/diode/temperature)

• Long press: flashlight lighting function

• (NCV induction test/Live zero line judgment/P phase sequence test)

• Long press: flashlight function

• Short press: function switching (NCV-LIVE-P)

• Long press: power switch

• Short press: function switch

• Pen line length is about 117mm

• Clamping length is about 83mm

• Trigger the N/L/P key three times to enter the phase sequence measurement

• Switch to the P function phase sequence, as shown

• When the screen displays the flashing A symbol, press the tip of the sensor pen to the first phase line and wait for a beep

• Immediately after displaying the blinking B symbol, put the tip of the meter pen close to the second phase wire and wait for the love buzzer to beep

• Keep displaying the flashing C symbol, and press the tip of the meter pen close to the third phase wire and wait for the love buzzer to beep

• Automatic mode: the boot screen shows AUTO enters the fully automatic mode

• Manual mode: When the boot screen displays “AUTO”, press the power button again to enter manual mode, and each press will replace one function

• Using boost power supply, even at the edge of 0.8V low voltage, it can be used normally to ensure the brightness of the backlight and flashlight

• The flashlight is convenient to detect the line in the dark environment

• Check and judge the breakpoint along the line when a single line is live, and find the breakpoint without hurting the line

• Maintenance assistant to meet a variety of measurement needs

• In the case of no operation, 5 minutes automatic shutdown

• The measured value can be saved on the screen for easy recording

• The humanized pen holder can be clipped on the clothes when not in use

• Extra sharp gold needle

• High-precision positive and negative poles with special sharp gold needles can measure precision components such as CPU and IC

• Dedicated clip wire for negative electrode, high-purity copper, multiple detection methods

• Intelligent Pen-type multimeter

• Negative alligator clip

• Necessary for maintenance

• Portable intelligent

• Phase sequence detection

• 3 in 1 smart pen multimeter + special tip gold needle negative meter pen + negative electrode special clip line

• Multiple measurement methods

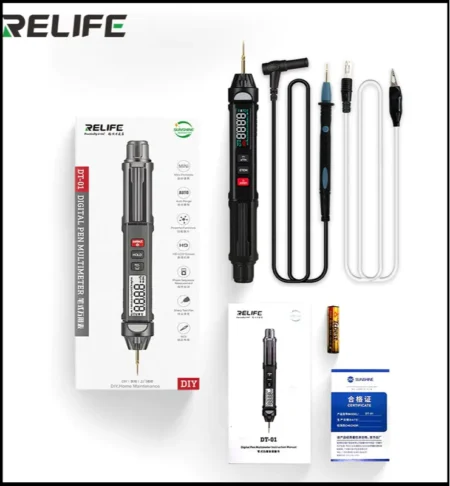

Package includes:
1 x Host (not include battery)
1 x Meter Pen
1 x Clamp line
