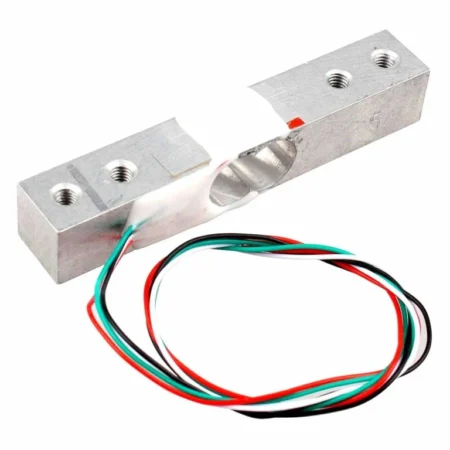

Save -17% Out of stock Weighing Load Cell Sensor 1Kg for Electronic Kitchen Scale YZC-131 With Wires

Weighing Load Cell Sensor 1Kg for Electronic Kitchen Scale YZC-131 With Wires

Weighing Load Cell Sensor 1Kg

Weighing Range: 0 ~ 1 kg.
Rated Output: 1.0 ± 0.1mV / V.
Non Linear Output: ± 0.03% F.S.
Input Impedance: 1066 ± 10% Ω.
Output Impedance: 1000 ± 10% Ω.
Insulation Resistance: 2000 MΩ.

SKU load cell 1kg SKU SYS x3351 Availability Out of stock

Quantities are confirmed after reviewing your order. Orders are normally prepared and shipped within 3–5 business days. Online availability does not necessarily mean the product is currently available at the branch. تأكيد الكميات بيتم بعد مراجعة الأوردر، وتجهيز وشحن الطلب بيستغرق عادة من 3 إلى 5 أيام عمل. توافر المنتج على الموقع لا يعني بالضرورة توافره داخل الفرع، لذلك اعمل الأوردر مسبقًا لتأكيد الكمية وتجهيزه.

☎ Need help? Call us 0104 453 9059

Add to wishlist

Fast shipping Delivery across Egypt

Flexible payment Cash and online options

Quantity confirmation Confirmed after order review

Technical support Help choosing compatible parts

Description

Weighing Load Cell Sensor 1Kg for Electronic Kitchen Scale YZC-131 With Wires

This weighing Load Cell Sensor (sometimes called a strain gauge) can translate up to 1 kg of pressure (force) into an electrical signal. Each load cell is able to measure the electrical resistance that changes in response to, and proportional of, the strain (e.g. pressure or force) applied to the bar.

With this gauge, you will be able to tell just how heavy an object is, if an object’s weight changes over time, or if you simply need to sense the presence of an object by measuring strain or load applied to a surface. This straight bar load cell is made from an aluminum alloy and is capable of reading a capacity of 1KG of weight

It has Four lead wires which can be connected to HX711 A/D Pressure Sensor. It is easy to use with driving voltage 5-10V and produce the output voltage as per the force changes over it.

Installation of the Sensor is also the simple task, it needs to fix one end through the screw hole and the other end left floating state, according to the label indicates the direction of the gravitational force exerted particular attention must not directly push the white plastic cover part of the sensor in order to avoid damage.

Connection Diagram with Arduino via HX711:

Package Includes of Weighing Load Cell Sensor 1Kg :

1 x Weighing Load Cell Sensor 1Kg for Electronic Scale

Model	YZC-131
Material	Aluminium
Dimensions in mm (LxWxH)	75 x 12.6 x 12.6
Weighing Range (Kg)	0 ~ 1
Rated Output	1.0 ± 0.1mV / V
Non Linear Output	± 0.03% F.S
Impedance (Ω)	1066 ± 10% Ω
Output Impedance	1000 ± 10% Ω
Insulation Resistance (MΩ)	2000
Hysteresis	0.03% F.S
Repeatability	0.03% F.S
Creep	(5 minutes) 0.05% F.S
Zero Balance	± 0.1 mV / V
Cable Length (cm)	18
Operating Temperature Range (°C)	-20 to 65
Weight (gm)	26
Shipment Weight	0.08 kg
Shipment Dimensions	12 × 5 × 4 cm
