XL6009 4A DC-DC Step Up Power Supply Module With Display
Highlight
- Walk-In Price: RM17.5
- Warranty: 1 Month (T&C Apply)
- 4A Switching Power High-Performance Boost Module
- Input range: 3V to 32V
- Output range: 5V to 35V
- Maximum output current: 4A
- Output Ripple: 50mV
- Conversion efficiency: <94% ( Lower efficiency when higher pressure difference occur )
DESCRIPTION
- 4A Switching Power High-Performance Boost Module
- Input range: 3V to 32V
- Output range: 5V to 35V
- Maximum output current: 4A
- Output Ripple: 50mV
- Conversion efficiency: <94% ( Lower efficiency when higher pressure difference occur )
- Switching Frequency: 400KHz
- Load Regulation: /- 0.5%
- Voltage Regulation: /- 0.5%
- Operating Temperature: -45℃ to 85℃
- Dimension : 60mm * 35mm * 13.5mm
- Weight: 24g
PACKAGE INCLUDE
1 x XL6009 4A DC-DC Step Up Power Supply Module with Display
Related Products
AC-DC Module 220Vac to 12Vdc 6A 70W Power Supply Module Switching Power Supply Board
Original price was: 500.00 EGP.350.00 EGPCurrent price is: 350.00 EGP.
Power Supply SMPS 5V 3A
Original price was: 250.00 EGP.200.00 EGPCurrent price is: 200.00 EGP.
DC-DC Boster MT3608 3V~28Vdc Adjustable Step-Up Converter Module 2A Micro USB
Original price was: 40.00 EGP.28.00 EGPCurrent price is: 28.00 EGP.

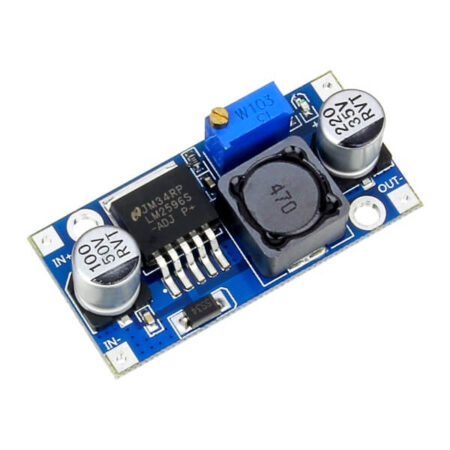

LM2596S-ADJ DC-DC Buck Converter 4.5-40V to 3-35V 3A Adjustable Step Down Module
Original price was: 75.00 EGP.55.00 EGPCurrent price is: 55.00 EGP.

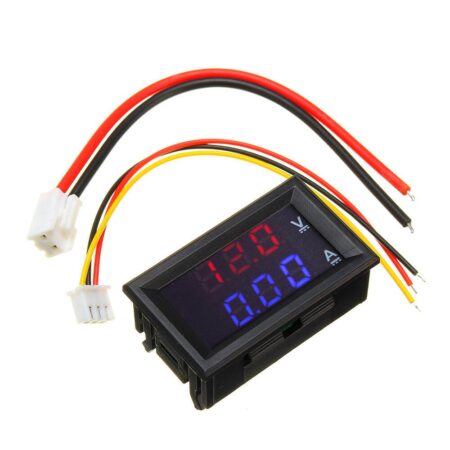

Dual Led 0.28 ” Display for DC0-100V 10A Voltage and Current Test Digital Instrument Digital Meter Panel Amplifier Red Blue 10A
Original price was: 120.00 EGP.100.00 EGPCurrent price is: 100.00 EGP.
Three-wire 0.56 inch DC 0V to 100V Digital Voltmeter (Red)
Original price was: 150.00 EGP.95.00 EGPCurrent price is: 95.00 EGP.
Products With Similar Tags
Hopson 30W Universal AC/DC Adapter Switching Power Supply with 8 Selectable Adapter Plugs, for 3V 4.5V 5V 6V 7.5V 9V 12V Household Electronics - 2000mA Max with USB port 1A
Original price was: 400.00 EGP.350.00 EGPCurrent price is: 350.00 EGP.
AMS1117 5V Step-Down Power Supply Module Unsoldered
Original price was: 25.00 EGP.20.00 EGPCurrent price is: 20.00 EGP.
DC-DC Boost Module (0.9V~5V) to 5V 600MA USB Step-up Board 5V Output
Original price was: 50.00 EGP.40.00 EGPCurrent price is: 40.00 EGP.

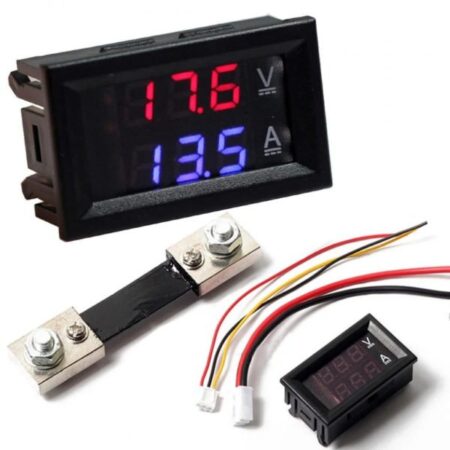

Dual Led 0.28 inch DC 100V 100A LED Digital Ammeter-Voltmeter With Shunt
Original price was: 300.00 EGP.250.00 EGPCurrent price is: 250.00 EGP.
12V LED Strip Light – 5m, 60 LED/m, 3000K Warm White, 15W/m, IP20 (Non-Waterproof)
Original price was: 250.00 EGP.150.00 EGPCurrent price is: 150.00 EGP.
ZVS Driver Board for Tesla Coil Power Supply Board Induction Heating Module
Original price was: 850.00 EGP.650.00 EGPCurrent price is: 650.00 EGP.

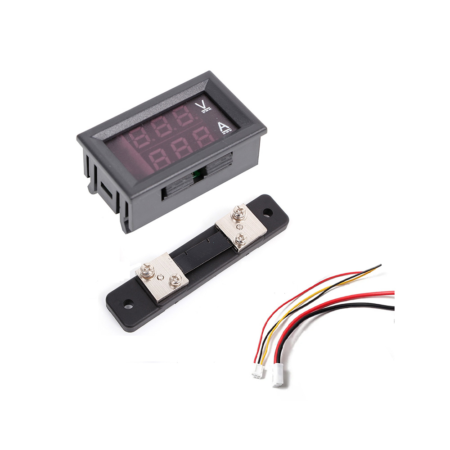

Dual Led 0.28 inch Digital Voltmeter Ammeter DC 100V 50A LED Amp Volt Meter With Shunt
