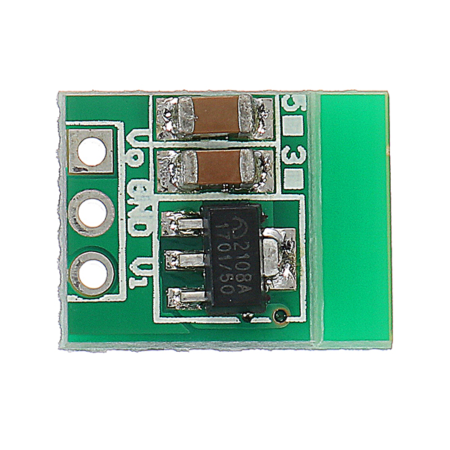

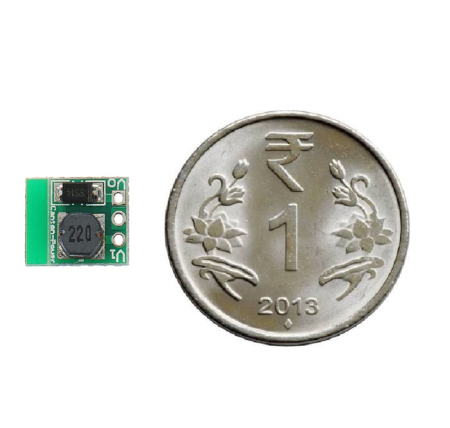

Save -17% Out of stock 0.8-3.3V to 3.3V DC-DC DC Boost Converter Module Step Up Board

0.8-3.3V to 3.3V DC-DC DC Boost Converter Module Step Up Board

Input voltage 0.8-3.3V output voltage 3.3V
Maximum output current: 500 mA
Starting voltage 0.8V, output current 10mA
Operating frequency: 150KHZ
Typical conversion efficiency: 85%

SKU SU13_0.8-3.3V to 3.3V SKU SYS X7140 Availability In stock

Quantities are confirmed after reviewing your order. Orders are normally prepared and shipped within 3–5 business days. Online availability does not necessarily mean the product is currently available at the branch. تأكيد الكميات بيتم بعد مراجعة الأوردر، وتجهيز وشحن الطلب بيستغرق عادة من 3 إلى 5 أيام عمل. توافر المنتج على الموقع لا يعني بالضرورة توافره داخل الفرع، لذلك اعمل الأوردر مسبقًا لتأكيد الكمية وتجهيزه.

Fast shipping Delivery across Egypt

Flexible payment Cash and online options

Quantity confirmation Confirmed after order review

Technical support Help choosing compatible parts

Description

0.8-3.3V to 3.3V DC-DC DC Boost Converter Module Step Up Board

1.5V 1.8V 2.5V 3V to 3.3V DC-DC DC Boost Converter Module Step Up Board is the voltage boost converter module provides 3.3V DC stable voltage output at various input range between 1.5V to 3.3V. This small tiny circuit boosts the voltage level and provides the amplified stabilized 3.3V output. For the different input range, it consumes a different amount of current to produce a balanced output.

While using this module one must comply with the following conditions
1. Input voltage cannot be greater than the nominal voltage, otherwise, it will burn out the module
2. Input power must be greater than the output power, otherwise, the output voltage will be less than the nominal voltage.
3. Output load cannot be greater than the nominal load, otherwise, the output voltage will be less than the nominal voltage.

DC-DC boost converter modules operate at a frequency of 150KHZ, the typical conversion efficiency is 85%

Features:

Small in size.
Light-weight.
Different power consumption for different voltages.

Package Includes:

1 x 1.5V 1.8V 2.5V 3V to 3.3V DC-DC DC Boost Converter Module Step Up Board

Model Type:	Boost Converter Module
Input Voltage (V):	0.8 – 3.3
Output Voltage (V):	3.3
Efficiency	0.85
Length (mm):	11
Width (mm):	7.5
Height (mm):	10.5
Weight (g):	1
Shipping Weight	0.01 kg
Shipping Dimensions	9 × 7 × 5 cm
