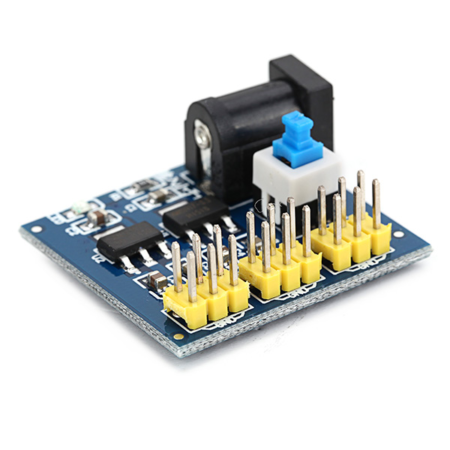

Save -24% Out of stock DC-DC 9V to 3.3V 5V 9V Power Module Multi Output Voltage Conversion

DC-DC 9V to 3.3V 5V 9V Power Module Multi Output Voltage Conversion

Input Voltage: 9V
Connector: 5.5mm DC Jack
Output power on/off switch
Two-row multiple pin outputs, easy to use and connect
Outputs
1. 3.3V DC at 800mA maximum current
2. 5.0V DC at 800mA maximum current
3. 9V DC (the 9V output is directly connected to the input, i.e. with 9VDC input, this output will be 9VDC; with 9VDC input, this output will be 9VDC)

SKU SD23_9V to 3.3V 5V 9V SKU SYS X7146 Availability In stock

Quantities are confirmed after reviewing your order. Orders are normally prepared and shipped within 3–5 business days. Online availability does not necessarily mean the product is currently available at the branch. تأكيد الكميات بيتم بعد مراجعة الأوردر، وتجهيز وشحن الطلب بيستغرق عادة من 3 إلى 5 أيام عمل. توافر المنتج على الموقع لا يعني بالضرورة توافره داخل الفرع، لذلك اعمل الأوردر مسبقًا لتأكيد الكمية وتجهيزه.

Fast shipping Delivery across Egypt

Flexible payment Cash and online options

Quantity confirmation Confirmed after order review

Technical support Help choosing compatible parts

Description

DC-DC 9V to 3.3V 5V 9V Power Module Multi Output Voltage Conversion

This DC-DC 9V to 3.3V 5V 9V Power Module Multi Output Voltage Conversion is also known as Buck Converter or also as Step-Down Voltage Converter.

The module is capable of altering the output of the power source/supply before supplying it to the load so as to deliver the specified power to your load.

The device is very flexible and easy to use. The module is powered by 6V to 9V DC input, and provides three fixed DC outputs: 3.3V, 5.0V, and a third output which is a direct connection to the DC input(input to the module).

Perfect for providing support power for your electronic design, every DIY hobbyist should have a couple of these flexible power supplies on their electronics workbench. They can also be used as a multi-output fixed voltage DC power supply in electronic equipment designs.

Features :

Output power on/off switch
Two-row multiple pin outputs, easy to use and connect
Red LED illuminates when input DC power is supplied and output is turned ON.
Outputs
1. 3.3V DC at 800mA maximum current
2. 5.0V DC at 800mA maximum current
3. 9V DC (the 9V output is directly connected to the input, i.e. with 9VDC input, this output will be 9VDC; with 9VDC input, this output will be 9VDC)
Small and Handy Module.
Dual-side plate design
Easy to use.

Package Includes :

1 x DC-DC 9V to 3.3V 5V 9V Power Module.

Input Voltage (V):	6 to 9
Connector:	5.5mm Power Jack
Output Voltage (V):	3.3V and 5V
Shipping Weight	0.02 kg
Shipping Dimensions	30 × 4 × 2 cm
