Motor Driver TB6612FNG Module Performance Ultra Small Volume 3 PI Matching Performance Ultra L298N
CW/CCW/short break/stop motor control modes
Built-in thermal shutdown circuit and a low voltage detecting circuit
Standby control to save power
CW/CCW/short brake/stop motor control modes
Operating Voltage(VDC): 15
Peak Current (A): 3.2
Continuous Current (A): 1.2
No. of Channels: 1
SKU
TB6612FNG Dual Motor Driver
SKU SYS
X7590
Availability
In stock
Quantities are confirmed after reviewing
your order. Orders are normally prepared
and shipped within 3–5 business days.
Online availability does not necessarily
mean the product is currently available
at the branch.
Motor Driver TB6612FNG Module Performance Ultra Small Volume 3 PI Matching Performance Ultra L298N
The Motor Driver TB6612FNG Module motor driver can control up to two DC motors at a constant current of 1.2A (3.2A peak). Two input signals (IN1 and IN2) can be used to control the motor in one of four function modes – CW, CCW, short-brake, and stop.
The two motor outputs (A and B) can be separately controlled, the speed of each motor is controlled via a PWM input signal with a frequency up to 100kHz. The STBY pin should be pulled high to take the motor out of standby mode.
Logic supply voltage (VCC) can be in the range of 2.7-5.5VDC, while the motor supply (VM) is limited to a maximum voltage of 15VDC. The output current is rated up to 1.2A per channel (or up to 3.2A for a short, single pulse).

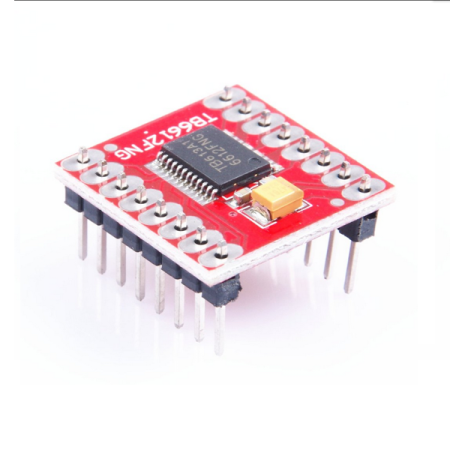

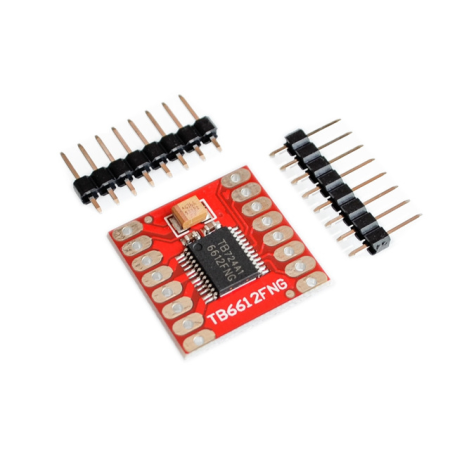

Board comes with all components installed as shown. Decoupling capacitors are included on both supply lines. All pins of the TB6612FNG are broken out to two 0.1″ pitch headers; the pins are arranged such that input pins are on one side and output pins are on the other.
Features :
Output current: Iout=1.2A(average) / 3.2A (peak)
Standby control to save power
CW/CCW/short break/stop motor control modes
Built-in thermal shutdown circuit and a low voltage detecting circuit
All pins of the TB6612FNG broken out to 0.1″ spaced pins
Filtering capacitors on both supply lines
Package Includes :
1 x Dual Motor Driver Module 1A TB6612FNG For Arduino Microcontroller
