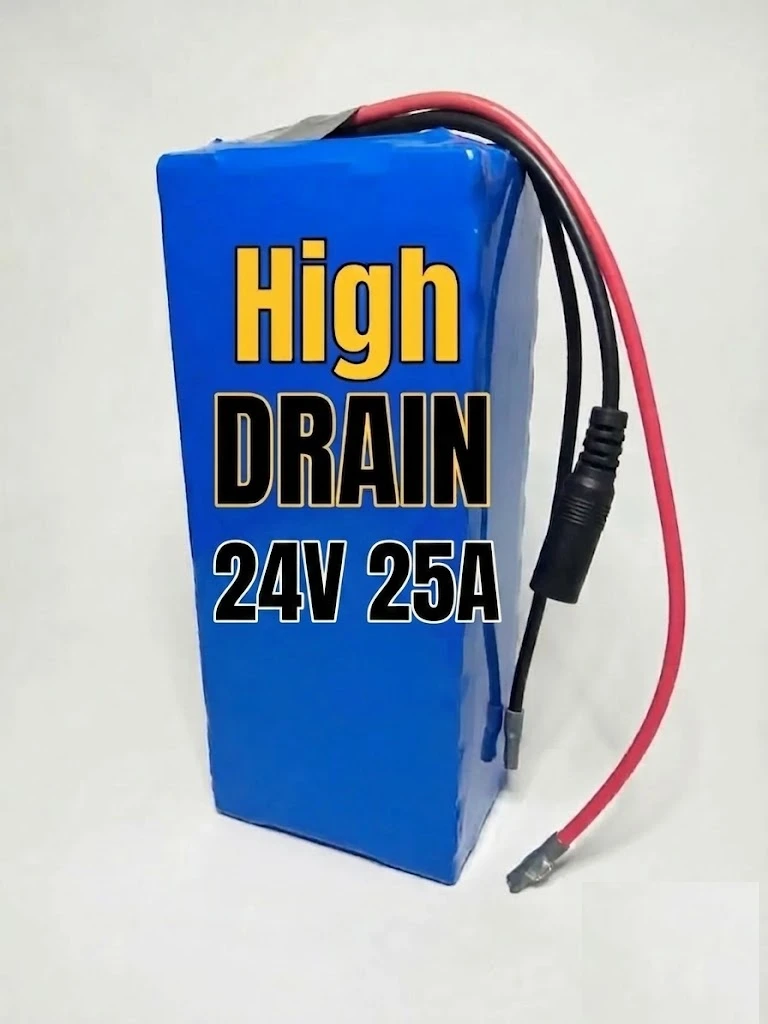

Why Choose This 24V 25Ah High Drain Battery?

This battery is designed for applications where both runtime and current capability matter. Compared with smaller 24V batteries, the 25Ah capacity provides longer operating time, while the 35A maximum discharge rating gives extra current headroom for motors, lighting systems, robotics, and power systems that need stronger performance. It is a practical choice for users who need a high-capacity 24V battery without moving to extremely oversized packs.

Key Features

• 24V rechargeable lithium-ion battery: Suitable for many 24V DC power applications.
• High 25Ah capacity: Provides extended operating time for demanding devices and backup systems.
• 35A maximum discharge: Designed for high-drain applications requiring stronger current delivery.
• High-capacity 6S8P configuration: Built with 48 total cells for improved current sharing and stable operation.
• Integrated BMS protection: Helps protect against overcharge, over-discharge, overcurrent, and short circuit conditions.
• Stable voltage performance: Suitable for systems that need reliable 24V output under load.
• Rechargeable design: Can be used repeatedly with a compatible 24V lithium-ion charger.
• Compact rectangular structure: Approximate dimensions of 12 × 16 × 6.5 cm for easier project installation.
• High-drain application class: Useful for electric mobility, motors, lighting, robotics, and backup power.
• 12-month warranty: Covered against manufacturing defects under proper use conditions.

Technical Specifications

Applications

This 24V 25Ah high drain battery pack is suitable for applications that need longer runtime and stronger 24V current delivery.

• 24V electric scooters, e-bikes, wheelchairs, and mobility projects within rated limits.
• Robotics and high-torque motor projects requiring stable current.
• Large LED strip installations and commercial lighting systems.
• Backup power for routers, switches, cameras, access control systems, and communication devices that support 24V input.
• Portable workshop tools and 24V cordless equipment.
• Solar storage and small DC backup energy systems within compatible charging limits.
• Field electronics and portable power systems.
• DIY engineering projects that require high-capacity 24V power.

6S8P Design Advantage

The 6S8P structure means the pack uses 6 cell groups in series and 8 cells in parallel per group. This arrangement creates the required 24V-class output while spreading load current across a larger number of cells. In practical use, this helps improve voltage stability under load, reduces stress on individual cells, and makes the battery more suitable for longer runtime and high-drain operation.

BMS Protection

The built-in Battery Management System helps protect the battery during normal charging and discharging. It supports protection against overcharge, over-discharge, short circuit, and excessive current conditions. This protection improves reliability, but the battery must still be used correctly with a compatible charger and within the stated voltage and current limits.

Package Contents

• 1 × 24V 25Ah High Drain Rechargeable Lithium-ion Battery Pack with BMS Protection.

Important Safety Notes

• Use only a compatible charger designed for 24V lithium-ion battery packs.
• Do not exceed the rated maximum discharge current of 35A.
• Do not short circuit, puncture, crush, open, burn, or expose the battery to water.
• Do not charge or store the battery near heat sources or flammable materials.
• Actual runtime depends on the connected load, discharge current, battery condition, and operating environment.
• Product appearance, label details, connector style, wrapping, and wire length may vary slightly between assembly batches while keeping the same main specifications.
• Dimensions may have slight tolerance due to assembly and wrapping method.

Micro Ohm Quality Note

This 24V 25Ah High Drain Rechargeable Lithium-ion Battery Pack is prepared for practical electronics use where stable 24V power, long runtime, and strong current output are required. Random samples may be checked by Micro Ohm to verify output voltage, visible assembly quality, connector condition, and basic charging/discharging behavior. Slight differences in outer wrapping, label design, connector style, or wire length may occur depending on the available batch while the core specifications remain as stated.
