Save -38% Out of stock BMS 2S 5A 8.4V 18650 Lithium Battery Charger Board Protection Module

BMS 2S 5A 8.4V 18650 Lithium Battery Charger Board Protection Module

Input Voltage: 8.4 – 9V.
Overcharge Detection Voltage: 4.25-4.35V±0.05V.
Over-Discharge Detection Voltage: 2.3-3.0V±0.05V.
Maximum Working Current: 5A.
Transient Current: 7A.

SKU BMS_2s5A SKU SYS x3256 Availability Out of stock

Quantities are confirmed after reviewing your order. Orders are normally prepared and shipped within 3–5 business days. Online availability does not necessarily mean the product is currently available at the branch. تأكيد الكميات بيتم بعد مراجعة الأوردر، وتجهيز وشحن الطلب بيستغرق عادة من 3 إلى 5 أيام عمل. توافر المنتج على الموقع لا يعني بالضرورة توافره داخل الفرع، لذلك اعمل الأوردر مسبقًا لتأكيد الكمية وتجهيزه.

You are already subscribed We will notify you when this product is available again. أنت مشترك بالفعل، وسنرسل لك تنبيهًا عند توافر المنتج.

Fast shipping Delivery across Egypt

Flexible payment Cash and online options

Quantity confirmation Confirmed after order review

Technical support Help choosing compatible parts

Description

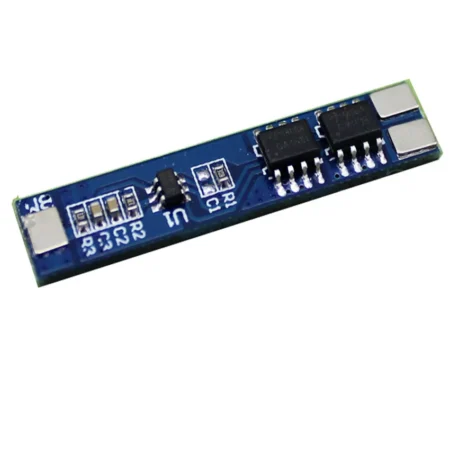

BMS 2S 5A 8.4V 18650 Lithium Battery Charger Board Protection Module

BMS 2S 5A 8.4V 18650 Lithium Battery Charger Board Protection Module has the main IC using original “precision” imported components. With overcharge, over-discharge, over current, short circuit protection function, for a variety of different shapes of 3.7V capacity lithium batteries. Using the Japanese precision protection IC, VISHAY, AOS, IR, and other high-quality MOSFET, an FR-4 low-temperature coefficient of the plate, well-designed, comprehensive test. Compact size, suitable for many requirements of high integration, low-cost occasions, can meet the performance requirements of many aspects, to ensure the absolute safety of the battery group.

Protections :

Short circuit protection.
Overcharge protection.
Over-discharge protection.
Over-current protection.

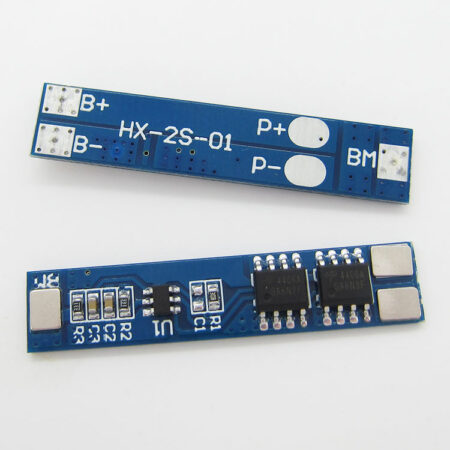

Connections :

MB: The Common connection point between the batteries.

B : Battery V Positive.
B-: Battery V- Negative.
P : Charging V .
P-: Charging V-.

Specifications :

Maximum Working Current: 5A.
Transient Current: 7A..
Operating Temperature: -40-50℃.
Internal Resistance: Less than 45m Ω.
B B-: The interface of battery core.
P P-: The connector of the battery board.

Package Includes :

1 x BMS 2S 5A 8.4V 18650 Lithium Battery Charger Board Protection Module.

Battery	2 Cell
Input Voltage (V)	8.4 ~ 9
Overcharge detection voltage (V)	4.25 Â± 0.025
Over-discharge detection voltage (V)	4.25 Â± 0.025
Over current Protection (A)	7
Working current (A)	5
Operating Temperature (Â°C)	-40 ~ 50
Length (mm)	38.5
Width (mm)	8
Height (mm)	2.3
Weight (gm)	1
Shipment Weight	0.01 kg
Shipment Dimensions	15 × 10 × 6 cm
