Description

The 3D printer 128×64 Smart LCD controller for ramps 1.4 contains an SD-Card reader, a rotary encoder and a 128×64 LCD display. You can easily connect it to your RAMPS board using the “smart adapter”.

After connecting this panel to your Ramps you don’t need your pc anymore, the Smart Controller supplies power for your SD card. Furthermore, all actions like calibration, axes movements can be done by just using the rotary encoder on the Smart Controller. Print your 3D designs without PC, just with a g-code design stored on the SD card.

Compares to the 2004 Smart LCD Controller With Adapter, this 128×64 screen can display much more information, which would help for you run the 3D printer without a computer.

Marlin V1 (new)

We have provided the Arduino Code to Start smart LCD with RAMPS. You have to open the “Arduino code pdf “(Which is Provided below the ATTACHMENTS tab )  and go to “Configuration.h” and change as

Installation: In “Configuration.h”

Change “#define REPRAP_DISCOUNT_FULL_GRAPHIC_SMART_CONTROLLER” (just remove the // at the beginning)

Upload the code, power off the Arduino, connect the panel, reapply power, and everything should work.

or

Step 1: Download and install U8glib to your ARDUINO IDE’s library folder

U8glib Website

U8glib Download URL

Step 2: Edit Configuration.h in Marlin firmware, Search and Uncomment (just remove the // at the beginning)

#define REPRAP_DISCOUNT_FULL_GRAPHIC_SMART_CONTROLLER

Step 3: Then Compile and Upload the firmware

Step 4:Power off the Arduino, connect the panel, reapply power, and everything should work.

Features of ramps lcd 12864 :

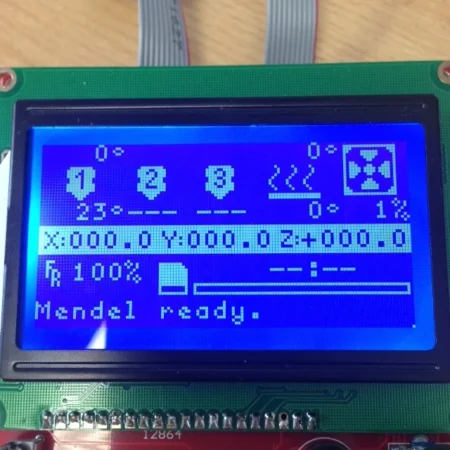

1. Large screen display 128×64 LCD (3.2″)
2. SD card slot at the back, able to directly select a file and print
3. The product comes encoder parameter adjustment can be achieved, and the file selection print
4. Plug & play on the RAMPS, but need to modify the firmware to support.
5. LCD 12864 Smart Controller fully supported by Marlin Firmware.

Package Includes :

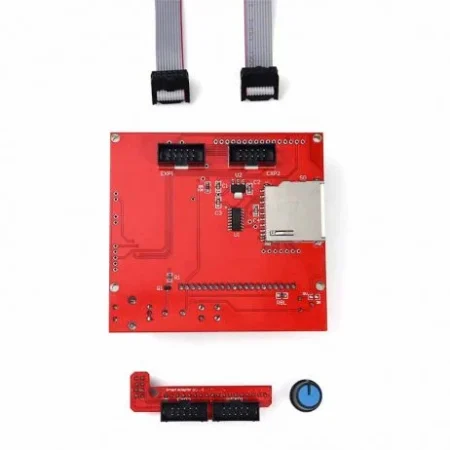

1 x  128×64 Smart LCD controller for ramps 1.4.
1 x Smart Adapter.
2 x 30cm FRC Cable.

Specifications

Attachments

Marlin

LCD Menu Tree
