Out of stock 4S 18650 Lithium Battery Capacity Indicator Module Level Tester LED

4S 18650 Lithium Battery Capacity Indicator Module Level Tester LED

45.00 EGP

The intelligent power display panel
Static power consumption 2~3 mA
Colour Display
Wide Variety of application

SKU 4S 18650 Capacity Indicator Module SKU SYS X8105 Availability In stock

Quantities are confirmed after reviewing your order. Orders are normally prepared and shipped within 3–5 business days. Online availability does not necessarily mean the product is currently available at the branch. تأكيد الكميات بيتم بعد مراجعة الأوردر، وتجهيز وشحن الطلب بيستغرق عادة من 3 إلى 5 أيام عمل. توافر المنتج على الموقع لا يعني بالضرورة توافره داخل الفرع، لذلك اعمل الأوردر مسبقًا لتأكيد الكمية وتجهيزه.

Fast shipping Delivery across Egypt

Flexible payment Cash and online options

Quantity confirmation Confirmed after order review

Technical support Help choosing compatible parts

Description

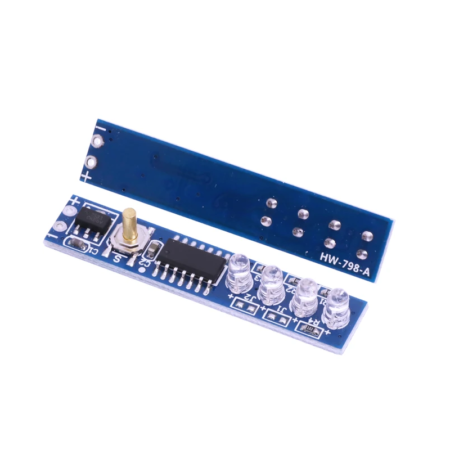

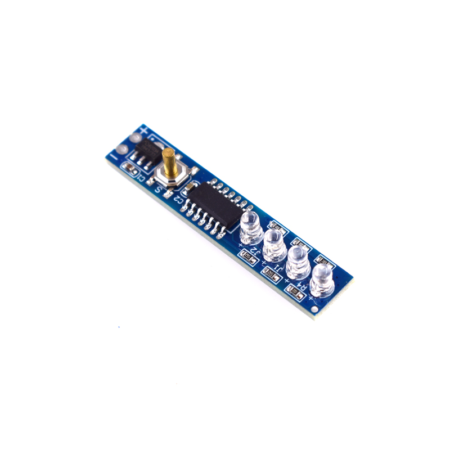

4S 18650 12V Lithium Battery Capacity Indicator Module Percent Power Level Tester LED Display Board Module

An Intelligent electricity quantity display board; slightly push trigger switch, it will auto power off after 3 seconds display.

LED Indication:

25% –>First Light is on (Voltage: 4.2 V)
50% –>Second light is on (Voltage: 8.4 V)
75% –>Third light is on (Voltage: 12.6 V)
100% –>Fourth light is on (Voltage: 16.8V)

Features:

The intelligent power display panel
Static power consumption 2~3 mA, It’s negligible
Power indication(The color of the lamp is green)

Package Includes:

1 x 4S 18650 Lithium Battery Capacity Indicator Module Level Tester LED

Item Type:	Battery Testing Equipment
Model:	Battery Level Indicator/Monitor
Voltage Rating (V):	12 to 16.8
Compatibility:	Lithium Battery
Current consumption (mA)	2~3 mA
Additional Specs.:	25% LED Indicator U≈7V 50% LED Indicator U≈7.5V 75% LED Indicator U≈8V 100% LED Indicator, U≈6.6V
Length (mm):	44
Width (mm):	9
Height (mm):	7.5
Weight (g):	8
Shipping Weight	0.01 kg
Shipping Dimensions	5 × 1 × 1 cm
