Out of stock 4WD Complete Mini Plastic Robot Chassis Kit – With 4 Advanced 90 Degree Motors

4WD Complete Mini Plastic Robot Chassis Kit – With 4 Advanced 90 Degree Motors

650.00 EGP
SKU car_4wd Acrylic 2 layer L shape SKU SYS x2846 Availability Out of stock
Quantities are confirmed after reviewing your order. Orders are normally prepared and shipped within 3–5 business days. Online availability does not necessarily mean the product is currently available at the branch. تأكيد الكميات بيتم بعد مراجعة الأوردر، وتجهيز وشحن الطلب بيستغرق عادة من 3 إلى 5 أيام عمل. توافر المنتج على الموقع لا يعني بالضرورة توافره داخل الفرع، لذلك اعمل الأوردر مسبقًا لتأكيد الكمية وتجهيزه.
☎ Need help? Call us 0104 453 9059
Add to wishlist
Share
Fast shipping Delivery across Egypt
Flexible payment Cash and online options
Quantity confirmation Confirmed after order review
Technical support Help choosing compatible parts
Tags
4 WD Car 4WD Arduino Car Car Chassis Christmas 2026 Double Layer Smart Car Robotics Projects Using Arduino Smart Car

Description

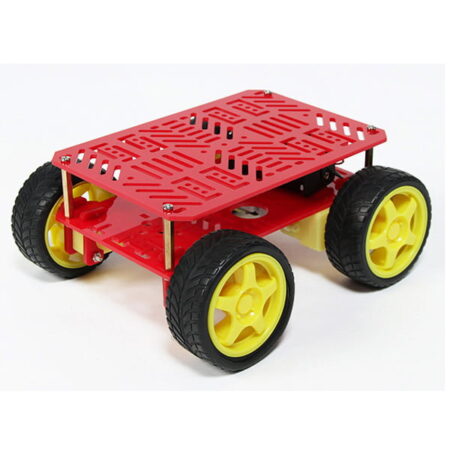

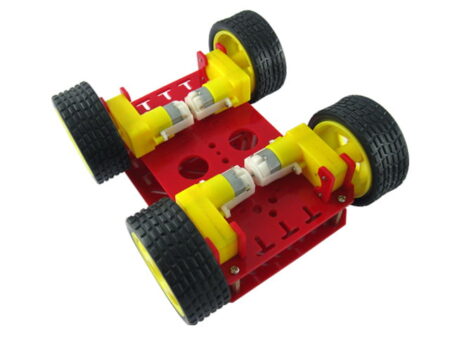

Dagu 4WD Magician Chassis



The 4WD Magician Chassis by Dagu Electronics is a versatile robot platform featuring four gearmotors with 65mm wheels. The chassis plates contain numerous cuts and holes for mounting sensors, microcontrollers and other hardware. The space between the plates is ideal for batteries or more components.

Specifications:

Motors

  • Suggested Voltage:4.5V DC (work well from 3-6V)
  • No load Speed:90±10rpm
  • No Load Current:190mA(max.250mA)
  • Torque:800gf.cm min
  • Stall current approx 1A

Wheels

  • 65mm diameter, 30mm width
  • Plastic rims with solid rubber tyres

Chassis

  • Laser cut acrylic
  • Metal standoffs
  • Top and bottom plates are both 110mm long x 174mm wide

Documents:

– Magician Chassis Manual
