Save -11% Out of stock Longer version of 4 WD Double Layer Smart Car Chassis Kit Acrylic Chassis

Longer version of 4 WD Double Layer Smart Car Chassis Kit Acrylic Chassis

Acrylic Chassis شاسية اكريلك
Very handy and simple in assembling/disassembling.
Strong components so as to withstand extreme terrain conditions.
Transparent Car Chassis.
Attractive design.

SKU Car_4wd Acrylic 2 layer Clear SKU SYS Xb2144 Availability In stock

Quantities are confirmed after reviewing your order. Orders are normally prepared and shipped within 3–5 business days. Online availability does not necessarily mean the product is currently available at the branch. تأكيد الكميات بيتم بعد مراجعة الأوردر، وتجهيز وشحن الطلب بيستغرق عادة من 3 إلى 5 أيام عمل. توافر المنتج على الموقع لا يعني بالضرورة توافره داخل الفرع، لذلك اعمل الأوردر مسبقًا لتأكيد الكمية وتجهيزه.

This item: Longer version of 4 WD Double Layer Smart Car Chassis Kit Acrylic Chassis

18650 Battery Case Holder 3 cells Black Plastic Storage Box Case Holder For Battery 3 x 18650 Cell Box, Without Cover

1 × 18650 Battery Case Holder 3 cells Black Plastic Storage Box Case Holder For Battery 3 x 18650 Cell Box, Without Cover

18650 Li-ion Battery 3.7v Rechargeable ICR (Recycled) 1000-1500mA

3 × 18650 Li-ion Battery 3.7v Rechargeable ICR (Recycled) 1000-1500mA

L298N 2A Based Motor Driver Module – Good Quality

1 × L298N 2A Based Motor Driver Module – Good Quality

Motor Driver Shield L293D

HC-05 6pin Bluetooth Module with Button

1 × HC-05 6pin Bluetooth Module with Button

HC-SR04 Ultrasonic Range Finder Sensor

1 × HC-SR04 Ultrasonic Range Finder Sensor

Ultrasonic Holder Mounting Bracket Case Acrylic For HC-SR04

1 × Ultrasonic Holder Mounting Bracket Case Acrylic For HC-SR04

TowerPro SG90 1.2kgCm 180 Degree Rotation Servo Motor – Good Quality

1 × TowerPro SG90 1.2kgCm 180 Degree Rotation Servo Motor – Good Quality

Fast shipping Delivery across Egypt

Flexible payment Cash and online options

Quantity confirmation Confirmed after order review

Technical support Help choosing compatible parts

Description

Longer version of 4 WD Double Layer Smart Car Chassis Kit Acrylic Chassis

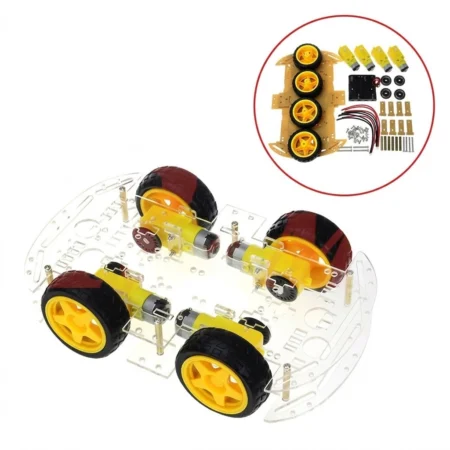

This is a Longer version of 4 wd double-layer smart car chassis. It comes with the four pairs of Geared Motors and Wheels. All the products included in this car kit are quality products. The chassis used in this kit is transparent to create dynamic handling of the components mounted on your robotic vehicle.

For more robotic vehicle kits, check out our Robots and Kits category.

Features :

Very handy and simple in assembling/disassembling.
Strong components to withstand extreme terrain conditions.
Transparent Car Chassis.
Attractive design.
Double-layer structure, much of mounting holes, enough space
Easy to install a variety of control panels, sensors
Educational toys, Ideal for the DIY platform

Specifications:

For BO Motor:

Operating Voltage: 3V~6V DC
Gear Ratio 1:48
No-load speed(5V): about 208RPM
Rated Torque: 0.8 Kg.cm @ 5V
Load current: 170mA (when it is 4.5V)
Size: 70 x 23 x 18 mm
Weight:28g
Shaft Length: 10 mm
Shaft Type: 6 mm, Double-D

For Wheel:

Loading Capacity: Max 2.5Kg
Double D-hole For BO Motor: 6 mm
Weight: 34g
Wheel Diameter: 65 mm
Color: Black (Tyre), Yellow (Rim)
Wheel width: 27 mm
Body Material: Plastic
Grip Material: Rubber

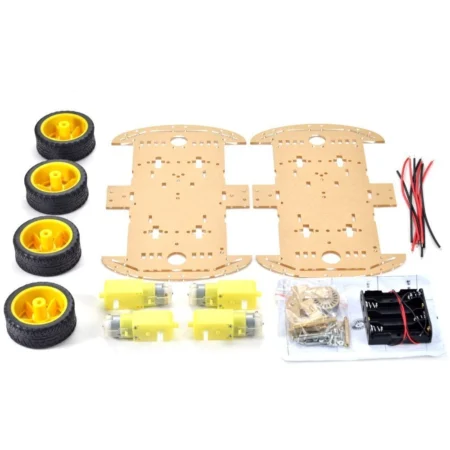

Package includes:

2 x Acrylic Transparent car floor
4 x High-Quality 65-mm Plastic wheels with Rubber Grip
4 x Dual shaft 150 RPM BO Gear Motor
8 x Acrylic Fasteners
1 x 4-AA Battery Holder

6 x M3 Brass Stand-Off
8 x M3 Cross-Head Bolt (Length: 30 mm )
8 x M3 Nut

Operating Voltage (VDC)	3 ~ 6
Shaft Length (mm)	8.5
Shaft Diameter (mm)	5.4mm-(round side) and 3.5mm-(flat side)
Rated Speed After Reduction (RPM)	200
Rated Torque (Kg-Cm)	0.8
Gearbox Shape	Straight
Length (mm)	70
Width (mm)	19
Height (mm)	22
Weight (gm)	28 (each)
***********************************************************************	Wheel ***********************************************************************
Color	Black (Tyre) Yellow (Rim)
Internal Diameter(ID)(mm)	51
Load Capacity(Kg/Wheel)	2.5
Tyre Grip Material	Rubber
Wheel Body Material	Plastic
Wheel Diameter(mm)	65
Wheel Width (mm)	27
Weight(gm)	34 (each)
Shipment Weight	0.4 kg
Shipment Dimensions	30 × 18 × 5 cm

النسخة الأطول من طقم شاسيه سيارة ذكية 4 عجلات مزدوج الطبقة من الأكريليك

هذا المنتج عبارة عن نسخة أطول من شاسيه سيارة ذكية رباعية الدفع بطبقتين، ويأتي مع 4 مواتير جيربوكس و4 عجلات. جميع المكونات الموجودة في هذا الطقم جيدة ومناسبة للتجميع العملي، كما أن الشاسيه مصنوع من أكريليك شفاف ليسهّل رؤية المكونات المثبتة على السيارة الروبوتية ويعطي شكلًا مميزًا أثناء التركيب والاستخدام.

هذا الطقم مناسب جدًا لمشروعات الروبوتات التعليمية، وتجارب التحكم والحركة، ومشروعات الهواة، لأنه يوفر قاعدة جيدة لتركيب لوحات التحكم والحساسات والبطاريات والمكونات المختلفة.

المميزات:
