Overview
The OSS T210 75W Soldering Station is built for precision rework with rapid heating (~2 s to working temp), a bright LED display, and auto-sleep to protect tips and save power. Pairing a T210-style lightweight handle with fine-geometry tips, it delivers stable, controllable heat for SMD/SMT, connector service, and dense PCB work where ordinary irons struggle.
✅ 75W performance for fast thermal recovery on pads and small ground planes
🔆 LED display for clear temperature visibility at a glance
⏱️ Rapid heat-up (~2 s) to reduce wait time between tasks
😴 Auto-sleep/standby to preserve tip plating and reduce oxidation

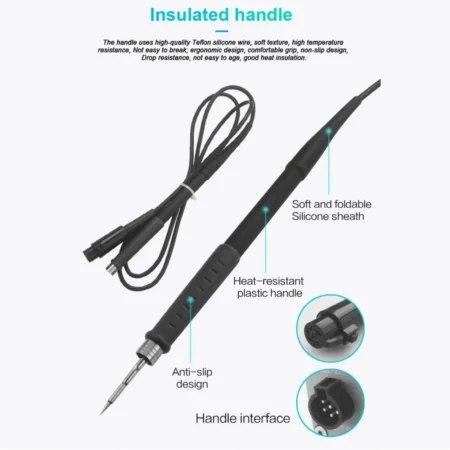

🧲 T210-class micro handle for low fatigue under the microscope
🧰 Comes with 3 tips (bundle dependent) to cover common joints
🛡️ ESD-aware design suited to sensitive electronics benches
Who It’s For
Phone/Tablet repair labs: jumpers, shield pads, FPC/USB/antenna connectors.
Makers & prototyping: fast iteration on compact boards.
Education & training: quick heat with safer standby behavior.
Field tech benches: consistent, repeatable performance with simple controls.
Key Benefits
✅ Speed + Control: 75W heater + T210 geometry gives snappy heat transfer and precise placement.
🎯 Microsoldering comfort: thin, light handle improves dexterity and visibility.
🧪 Clean joints: stable temperature reduces bridges and dull finishes on fine-pitch pads.
🔁 Less downtime: rapid recovery lets you move from pad to pad without waiting.
♻️ Longer tip life: auto-sleep curbs oxidation during idle moments.
Typical Use Cases
Fine-pitch SMD: 0201/0402 passives, QFN edges, Wi-Fi/PMIC side pins.
Connector service: FPC, USB-C, camera/sensor headers, speaker/mic pads.
Jumpers & bodge wires: tinning enamel wire, bridging vias with minimal alloy.
Shield cleanup: wick and detail work after hot-air de-shielding.
Small harnesses: lugs and test leads without overheating insulation.
Quick Start (Technician Workflow)
Mount a tip (from the included set) and ensure it seats fully.
Power on and set the target temperature on the LED display.
Tin the tip with a dab of solder to establish wetting.
Work the joint: heat pad + lead together; feed solder into the joint, not the tip.
Short idle? Let auto-sleep park the temp; wake instantly on movement/trigger (station-dependent).
Finish up: re-tin the tip lightly before placing it back in the stand.
Pro tip: For tiny pads, go one tip size smaller than usual and lower the temperature a notch—let contact time do the work.
Safety & Handling
Use fume extraction or a desk fan; avoid inhaling rosin fumes.
Keep the iron in the stand when not in hand; never rest on cables.
Wear eye protection—solder can spatter.
Ground yourself and the mat for ESD discipline around sensitive ICs.
Disconnect power before swapping heaters or deep cleaning.

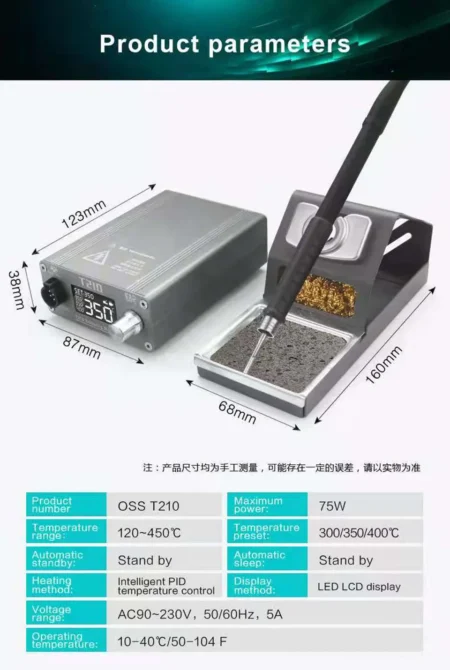

Specifications
| Category | Parameter | Value |
|---|
| Model | Code | OSS T210 |
| Power | Rated Output | 75 W |
| Handle | Type | T210-style micro handle |
| Display | Front Panel | LED temperature/readout |
| Heat-up | To Work | ~2 s (to typical working range) |
| Modes | Energy Saving | Auto-sleep / standby |
| | |
| ESD | Bench Use | ESD-aware layout for electronics work |
| Controls | Interface | Temperature adjustment with LED feedback |
| Stand | Rest | Iron stand/holder |
| Power | Input | AC-powered station |
| | |
Techniques & Tips
Flux is your friend: A no-clean flux pen dramatically improves wetting on oxidized pads.
Wicking bridges: Lower temp slightly, add flux, and use a fresh braid—don’t drag the tip dry.
Ground pads: Briefly pre-heat larger copper areas; if needed, step up a tip size.
Lead-free vs. leaded: Expect ~20–40 °C higher setpoint for SAC alloys compared to 63/37.
Tip care: Prefer brass wool over wet sponges to avoid thermal shock.
Maintenance
Keep the tip lightly tinned during pauses to resist oxidation.
Replace tips that won’t wet evenly—don’t file or sand plated tips.
Periodically clean the stand and cable path to prevent debris buildup.
Store cooled equipment in a dry area; avoid wrapping hot cables.
What’s in the Box
📦 OSS T210 75W Soldering Station
🖊️ T210-style handle
🪝 Iron stand/holder
🔌 Power cord
📖 Quick start / safety leaflet
OSS T210 محطة لحام 75 وات بشاشة LED ووضع نوم تلقائي
لمحة عامة
OSS T210 75W Soldering Station محطة لحام احترافية للميكرو-سولدرنج، بتتميز بـ تسخين سريع جدًا (~2 ثانية)، شاشة LED واضحة، ووضع نوم تلقائي علشان تحافظ على عمر سنّ اللحام وتوفّر الطاقة. مع هاندل T210 خفيف وسِنون دقيقة، هتنجز شغل SMD/SMT والكونّكتورات والبادز الضيقة بسهولة وتحكّم أعلى.
✅ قدرة 75 وات لاسترجاع حراري سريع
🔆 شاشة LED لقراءة وضبط الحرارة بسهولة
⏱️ تسخين فوري تقريبًا (~2 ثانية) للوصول لحرارة الشغل
😴 نوم تلقائي/استندباي يقلّل أكسدة السنّ
🧲 مقبض T210 خفيف مريح تحت الميكروسكوب
🧰 3 سِنون مرفقة (حسب الباندِل) لاحتياجات شائعة
🛡️ مراعاة ESD لبيئات إلكترونيات حساسة
مين هيناسبه؟
معامل وصيانة موبايل/تابلت: جَمبرات، بادز شيلد، سوكيتات FPC وUSB-C.
المصممين والهواة: بروتوتايب سريع على بوردات مدمجة.
التعليم والتدريب: تسخين سريع مع وضع نوم يحافظ على السِن.
بنشات ميدانية: أداء ثابت بواجهة بسيطة.
المزايا الرئيسية
✅ سرعة + دقة: سخّان 75 وات مع سِنّ T210 بيدي نقل حرارة محسّن وتموضع أدق.
🎯 راحة في الميكرو-سولدرنج: الهاندل الخفيف يقلّل إجهاد اليد ويزود الرؤية.
🧪 وصلات أنضف: ثبات الحرارة يقلّل الجسور واللمعان المطفّي على البادز الضيقة.
🔁 وقفات أقل: استرجاع حراري سريع بين النقاط.
♻️ عمر أطول للسِن: النوم التلقائي يقلّل الأكسدة وقت السكون.
استخدامات مثالية
SMD دقيق: 0201/0402، حواف QFN، أطراف Wi-Fi/PMIC.
سوكيتات: FPC، USB-C، هيدرز حساسة.
جَمبرات وأسلاك شعرة: قصدرة سريعة بأسلاك مغزولة أو مطلية مينا.
تنضيف بعد الهوت إير: إزالة جسور بقصدير/فتيلة على الشيلدات.
أسلاك صغيرة: أطراف حساسات ومكبرات بدون حرق العزل.
خطوات تشغيل سريعة
ركّب سنّ مناسب وتأكّد إنه راكب للآخر.
شغّل واضبط الحرارة من شاشة LED.
اقصتر السنّ بنقطة قصدير قبل البداية.
إلحم الوصلة: سخّن الباد والساق معًا واغذّي القصدير للوصلة مش للسنّ.
وقفات قصيرة؟ سيب وضع النوم يتفعَّل—وبيصحى فور اللمس/الحركة (حسب الطراز).
إنهاء: اقصتر السنّ خفيف قبل الرجوع للستاند.
💡 نصيحة: للبادز الصغيرة قلّل درجة الحرارة درجة، وخلي وقت التلامس أطول سنة بدل الضغط الزايد.
السلامة والتعامل
اشتغل مع شفاط أبخرة أو مروحة مكتب.
خليك دايمًا على ستاند وقت عدم الاستخدام؛ بلاش سَند على الكابلات.
استخدم نظارة حماية؛ رذاذ قصدير وارد.
التزم ESD مع الآي-سيّات الحساسة.
افصل الطاقه قبل تغيير السخّان أو التنضيف العميق.
المواصفات الفنية
| الفئة | البند | القيمة |
|---|
| الموديل | الكود | OSS T210 |
| القدرة | الخرج | 75 وات |
| الهاندل | النوع | مقبض T210 خفيف |
| الشاشة | الواجهة | LED لعرض/ضبط الحرارة |
| زمن التسخين | للوصول | ~2 ثانية لمدى العمل المعتاد |
| الأنماط | توفير | نوم تلقائي/استندباي |
| | |
| ESD | الاستخدام | ملائم لبيئات ESD |
| التحكّم | الواجهة | ضبط حرارة مع مؤشرات LED |
| الستاند | الحامل | ستاند حديد/حامل |
| الطاقة | الإدخال | محطة AC |
| | |
تكنيك ونصايح
فلكس مهم: قلم فلكس no-clean يحسّن البلل على البادز المؤكسدة.
سحب جسور: قلّل الحرارة، زوّد الفلكس، واستخدم فتيلة جديدة؛ ما تجرّش السنّ ناشف.
بادات أرضي: سخّن مسبقًا مساحات النحاس الكبيرة؛ أو استخدم سنّ أكبر بنقطة.
سبيكة خالية رصاص: ارفع الحرارة 20–40°م عن الرصاصي.
عناية السنّ: صوف نحاس أفضل من إسفنجة مبلولة لتجنّب صدمة حرارية.
العناية والصيانة
خلي السنّ مقصتر خفيف وقت التوقفات.
بدّل السنّ اللي مش بيتبل كويس—ما تِبردش سنون مطلية.
نظّف الستاند ومجرى الكابل بشكل دوري.
خزّن بعد ما يبرد بالكامل وفي مكان جاف.
محتويات العبوة
📦 محطة لحام OSS T210 — 75 وات
🖊️ مقبض T210 خفيف
🪝 ستاند/حامل
🔌 كابل طاقة
📖 إرشادات سريعة وسلامة
