Description

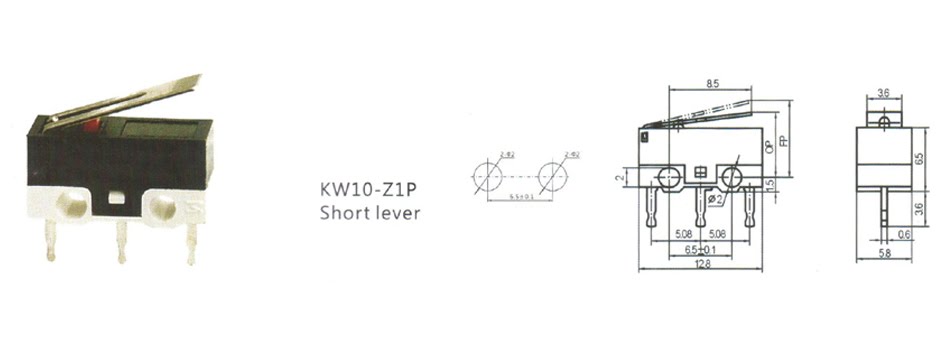

PCB Micro Limit Switch 1A 125VAC Microswitch

This Limit switch is manufactured from glass-reinforced thermoplastic to give rugged performance. And is available as single-pole double-throw with an actuator attached. Terminals are suitable for PCB mounting at a standard pitch. The actuator is stainless steel and is 13mm long.

Specification

• Dimensions: 12.7mm x 9.5mm x 5.6mm
• Lever type:13mm lever,
• Rating: 125VAC 1A
• Terminals: 3
• Operating Temperature: -255 to +65
• Electrical life: 30,000+ cycles
• Mechanical life: 100,000+ cycles

The Microswitch  Limit Switch 1A  125V AC contains one group of contacts for switching. Presence of the lever.

Often used as a limit switch (end) in household appliances and amateur radio structures.

Package Includes :

1 x Microswitch  Limit Switch 1A 125V AC
