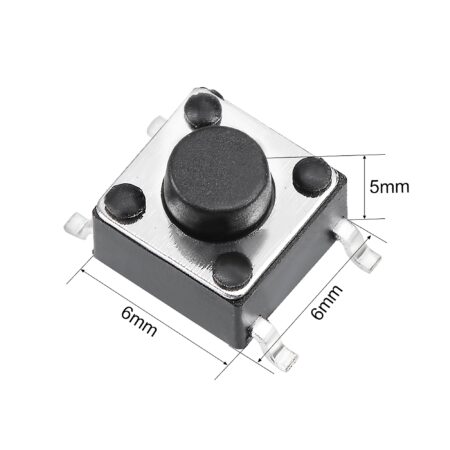

Save -20% Out of stock Press 4pin Push Button Switch Patch SMD 6x6x5mm

Press 4pin Push Button Switch Patch SMD 6x6x5mm

Ideal for Through-hole applications.
Shaft Shape: Round
Used in the fields of electronic products, household appliances and more.
This light touch switch is waterproof, prevent oil, anti-pollution, anti-static interference.
High precision mechanism design offers acute operation and long service life.
Compact and lightweight, easy to carry and dismantling.

Good electrical conductivity.

SKU PBsmd4pin 6*6*5 SKU SYS x3705 Availability In stock

Quantities are confirmed after reviewing your order. Orders are normally prepared and shipped within 3–5 business days. Online availability does not necessarily mean the product is currently available at the branch. تأكيد الكميات بيتم بعد مراجعة الأوردر، وتجهيز وشحن الطلب بيستغرق عادة من 3 إلى 5 أيام عمل. توافر المنتج على الموقع لا يعني بالضرورة توافره داخل الفرع، لذلك اعمل الأوردر مسبقًا لتأكيد الكمية وتجهيزه.

Fast shipping Delivery across Egypt

Flexible payment Cash and online options

Quantity confirmation Confirmed after order review

Technical support Help choosing compatible parts

Description

Description

Press 4pin Push Button Switch Patch SMD 6x6x5mm

6x6x4.3mm Tactile Push Button Switch is widely used as a standard input “buttons” on electronic projects. These work best when you mount it on PCB but can also be used on a solderless breadboard for temporary connections in prototypes. The pins are normally open (disconnected) and when the button is pressed they are momentarily closed and complete the circuit.

This tactile switch also offers reliable dome contact technology and strong tactile feedback, with multiple operating forces to choose from. Applications include telecommunications, consumer electronics, audio/visual, medical devices, testing/instrumentation, and computer/peripherals.

Features :

Through-hole design.
Shaft Shape: Round
The long life of 300,000 cycles realized despite the high operating force
Used in the fields of electronic products, household appliances and more.
This light touch switch is waterproof, prevent oil, anti-pollution, anti-static interference.
High precision mechanism design offers acute operation and long service life.
Compact and lightweight, easy to carry and dismantling.
Good electrical conductivity.

Package Includes :

1 x Press 4pin Push Button Switch patch smd 6x6x5mm

Operating Voltage (VDC)	12
Max. Operating Current (mA)	50mA
Switch Type	Momentary
Contact Resistance	30mΩ
Insulation Resistance (MΩ)	100
Operating Temperature Range (°C)	-30 to 70
Protection Standard	IP65
Length (mm)	6
Width (mm)	6
Height (mm)	5
Weight (gm)	1 (approx) (each)
Shipment Weight	0.01 kg
Shipment Dimensions	5 × 8 × 1 cm
