Square 2M Float Switch For Industry Pump Tank Sensor
200.00 EGP
Square 2M Float Switch For Industry Pump Tank Sensor
- Rated current/voltage: 10(8A) 250V ~ 10(4A) 380V
- Protection class: IP68
- Working pressure:0.1MPa
- Operating temperature: 0~75℃
- Electrical life: 1 x 100 000 times
- Mechanical life: 5 x 100 000 times
Quantities are confirmed after reviewing
your order. Orders are normally prepared
and shipped within 3–5 business days.
Online availability does not necessarily
mean the product is currently available
at the branch.
تأكيد الكميات بيتم بعد مراجعة الأوردر،
وتجهيز وشحن الطلب بيستغرق عادة من
3 إلى 5 أيام عمل.
توافر المنتج على الموقع لا يعني بالضرورة
توافره داخل الفرع، لذلك اعمل الأوردر
مسبقًا لتأكيد الكمية وتجهيزه.
Fast shipping
Delivery across Egypt
Flexible payment
Cash and online options
Quantity confirmation
Confirmed after order review
Technical support
Help choosing compatible parts
- Description
- Reviews (0)
Description

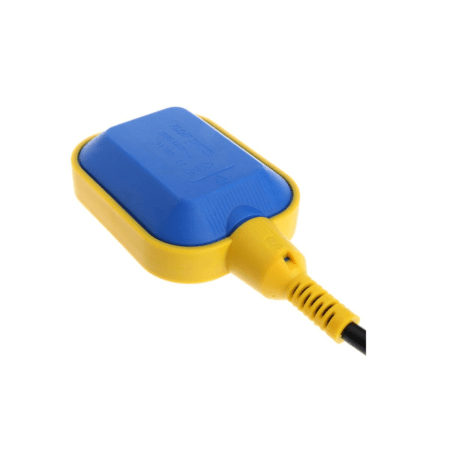

Square 2M Float Switch For Industry Pump Tank Sensor
Cable Float Switch is a control device for automatic On/Off pumps, motor and magnetic valves. It is also an alarm device at certain pre-determined surface levels. It is suitable for use in non-flammable liquids at 250 volts. In potentially explosive atmospheres (e.g. oil tanks) the Switch can be used in conjunction with (Ex) I-isolator switch units. Due to its large float casing, the float Switch has a buoyancy that guarantees smooth, trouble-free operation under all conditions. The switch has a double chamber and a final remolding finish to make it absolutely hermetic.
Features:
- It can test the pressure of the liquid.
- The float switch is a switch that regulates fluid level in the tank or well etc
- The float switch is resistant to water(sewage water) it is relatively capable of being used for oil,most acids and alkalis
- The float switch is not explosion-proof.
Package Includes:

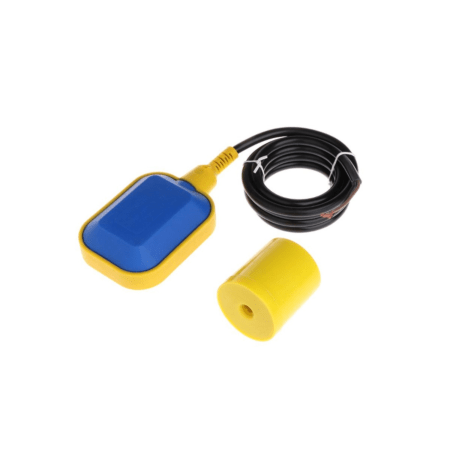

1 x Square 2M Float Switch For Industry Pump Tank Sensor
| Model: | Float Switch |
|---|---|
| Input Voltage (V): | 10(8A) 250V ~ 10(4A) 380V |
| Protection Class | Ip68 |
| Working Pressure | 0.1MPa |
| Operating Temperature (°C): | 0~75℃ |
| Electrical Lifetime | 1 x 100 000 times |
| Mechanical Lifetime | 5 x 100 000 times |
| Material: | Plastic |
| Color: | yellow + blue |
| Rectangle Box | 103x78x45 mm |
| Cable Length (m): | 2 |
| Shipping Weight | 0.14 kg |
| Shipping Dimensions | 21 × 10 × 8 cm |
