Save -15% ZVS Driver Board for Tesla Coil Power Supply Board Induction Heating Module 12-30V

ZVS Driver Board for Tesla Coil Power Supply Board Induction Heating Module 12-30V

Original price was: 1,000.00 EGP.Current price is: 850.00 EGP.
  1. Input Voltage: DC 12V-30V
  2. Output: HVDC, About 800 times of input voltage
  3. Power Requirements: Less than 12V ≥ 5A, above 15V ≥ 15A
  4. Operating Frequency: 30kHz-50kHz adaptive
SKU ZVS Drive Tesla Heating Module 12-30V SKU SYS X8177 Availability In stock
Quantities are confirmed after reviewing your order. Orders are normally prepared and shipped within 3–5 business days. Online availability does not necessarily mean the product is currently available at the branch. تأكيد الكميات بيتم بعد مراجعة الأوردر، وتجهيز وشحن الطلب بيستغرق عادة من 3 إلى 5 أيام عمل. توافر المنتج على الموقع لا يعني بالضرورة توافره داخل الفرع، لذلك اعمل الأوردر مسبقًا لتأكيد الكمية وتجهيزه.
تحتاج مساعدة؟ تواصل معنا
☎ Need help? Call us 0104 453 9059
Add to wishlist
Share
Fast shipping Delivery across Egypt
Flexible payment Cash and online options
Quantity confirmation Confirmed after order review
Technical support Help choosing compatible parts
Tags
Induction Heating Mini ZVS ZVS

Description

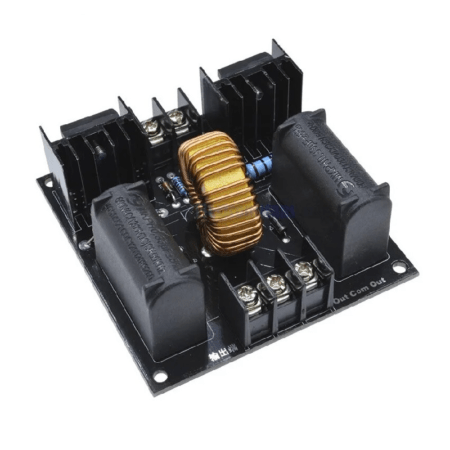

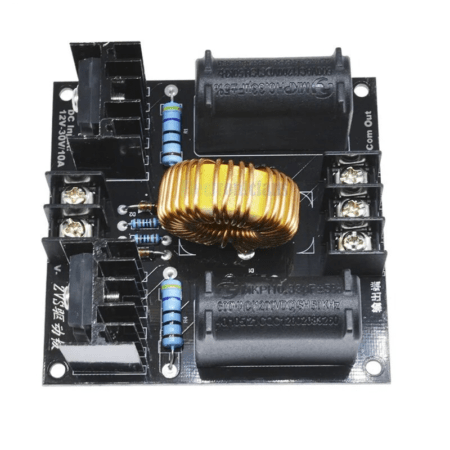

ZVS Driver Board for Tesla Coil Power Supply Board Induction Heating Module 12-30V

A Zero Voltage Switching (ZVS) driver board is commonly used in applications like Tesla coils and induction heating modules. It helps achieve efficient and controlled switching of high-voltage power supplies.

Features:

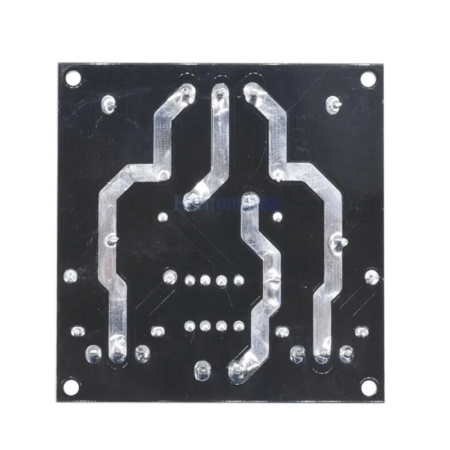

  1.  Using military FR4-A material 1.6mm double-board circuit board, power line extra adds tin and optimizes line width of MOS tube drive circuit.
  2. Using two IRFP250N power field pipes, large current, small internal resistance, super-power.
  3. Using 1.25 copper wire large inductance, more stable performance.
  4.  Using 1% precision metal film resistors.
  5.  Use 25 * 24 * 16mm thick anti-static cooling.
  6. Using MKP 0.33UF 1200V two parallel resonant capacitors for high frequency.
  7. Secondary Parameters of 5T + 5T
  8. Arc Length of 1-5cm

Package Includes:

1 x ZVS Driver Board for Tesla Coil Power Supply Board Induction Heating Module 12-30V

Item Type:Kit
Voltage Rating (V):12-30
OutputHVDC, About 800 times of input voltage
Power RequirementsLess than 12V ≥ 5A, above 15V ≥ 15A
Operating Frequency (Hz):30kHz-50kHz adaptive
Power Rating (W):180-360W
Shipping Weight0.131 kg
Shipping Dimensions17 × 14 × 27 cm
