Save -18% Out of stock CJMCU MCP4725 I2C DAC Breakout Development Board

CJMCU MCP4725 I2C DAC Breakout Development Board

12-bit resolution
Small package
2.7V to 5.5V supply
Internal EEPROM to store settings
I²C Interface (Standard, Fast, and High-Speed supported)

SKU MCP4725 DAC Module 12bit SKU SYS X7592 Availability In stock

Quantities are confirmed after reviewing your order. Orders are normally prepared and shipped within 3–5 business days. Online availability does not necessarily mean the product is currently available at the branch. تأكيد الكميات بيتم بعد مراجعة الأوردر، وتجهيز وشحن الطلب بيستغرق عادة من 3 إلى 5 أيام عمل. توافر المنتج على الموقع لا يعني بالضرورة توافره داخل الفرع، لذلك اعمل الأوردر مسبقًا لتأكيد الكمية وتجهيزه.

Fast shipping Delivery across Egypt

Flexible payment Cash and online options

Quantity confirmation Confirmed after order review

Technical support Help choosing compatible parts

Description

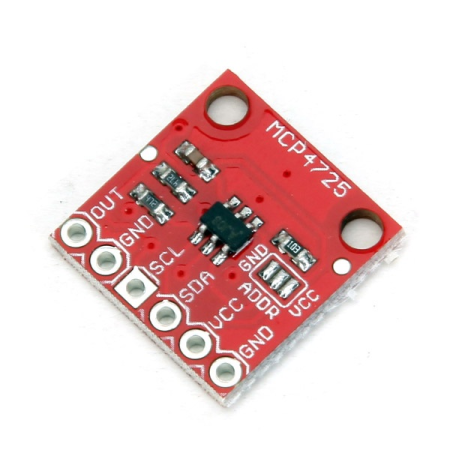

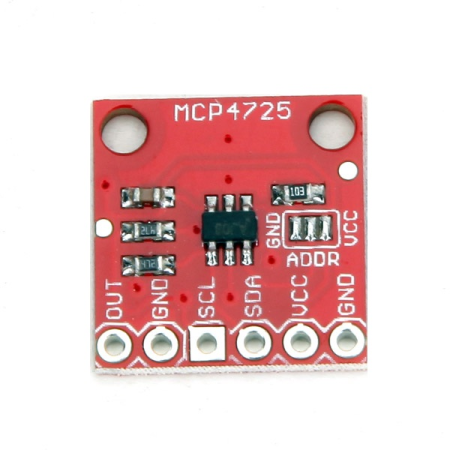

CJMCU MCP4725 I2C DAC Breakout Development Board

With CJMCU MCP4725 I2C DAC Breakout Development Board Module has MCP4725 which is an I²C controlled Digital-to-Analog converter (DAC). A very cost-efficient option of DAC allows you to send an analog signal, such as a sine wave, from a digital source, such as the I²C interface on the Arduino microcontroller. Digital to analog converters are great for sound generation, musical instruments, and many other creative projects!

This version of the MCP4725 Breakout came up with few fixes for an issue with the board including the IC footprint, the I²C pinout, changes the overall board dimensions to better fit your projects, and a few more minor tweaks than its previous versions. This board breaks out each pin you will need to access and use the MCP4725 including GND and Signal OUT pins for connecting to an oscilloscope or any other device you need to hook up to the board.

Additionally, the module has onboard SCL, SDA, VCC, and another GND for your basic I²C pinout. The pull-up resistors on this board can be disabled just check the Hookup Guide in the Documents section below for instructions and tips on doing this.

Find MCP4725 Datasheet and Scematic in attachment for More Details.

Features :

12-bit resolution
I²C Interface (Standard, Fast, and High-Speed supported)
Small package
2.7V to 5.5V supply
Internal EEPROM to store settings
Mounting hole diameter: 2.5mm
Distance between mounting hole: 11.5mm

Useful Links :

Package Includes :

1 x MCP4725 I2C DAC Breakout Board.

MCP4725 Datasheet: DOWNLOAD

Schematic: DOWNLOAD

Operating Voltage (V):	2.7 to 5.5
Interface Type	I2C
Resolution:	12-bits
Mounting Hole (mm)	M2.5
PCB Size ( L x W ) mm	15 x 15
Weight (g):	3
Shipping Weight	0.005 kg
Shipping Dimensions	3 × 3 × 2 cm
