Description

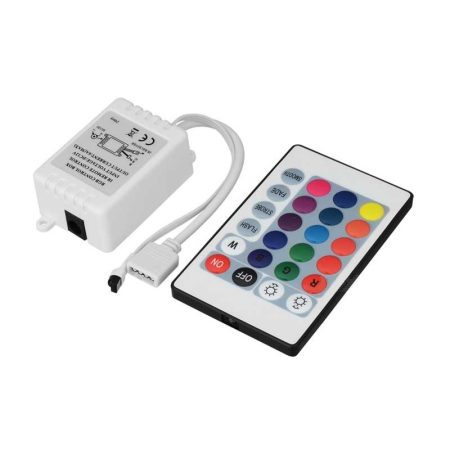

12V 5050 RGB LED Strip Controller box with 24 Key IR Remote Control

Are you searching for a good Quality RGB Strip driver? Here you can end your search. This 12V 5050 RGB LED Strip Controller box with 24 Key IR Remote Control out of the box will serve the purpose.

This controller box operates on 12Volt DC supply via onboard 5mm female DC port. At the other end, it has 4 Pin Output female connector which can be connected to RGB strip directly. Also, the controller box has an IR receiver with a flexible probe to set it according to the requirement or to hide the controller in systematic decorations.

The controller box can operate at up to 6A current which means you can run 5 meters RGB Strip easily on this controller. IR remote control comes with 42 key with various keys for the differential pattern of RGB functions, Brightness Adjustments, Blink frequency Adjustment well as ON and OFF button

Button use:
R: Color change to Red
G: Color change to Green
B: Color change to Blue
W: Color change to White

Use: 12V 5050 RGB SMD LED strip lights

Note: Length of Strip depends upon the adapter you use to power the box. For 1-meter strip, 12V 2A power supply is needed

Features:

1. Plug and Play Easy to connect
2. Flexible IR Receiver Probe
3. Multi-Function IR Remote control
4. 16 colors, 5 light pattern: Static/Flash/Strobe/Fade-change/RGB Smooth-change.
5. 16-classes Static Mode Dim Control
6. 16-Speeds Control in Flash / Strobe / Fade-change / RGB Smooth-change.
7. Connecting mode: common anode
8. Material: plastic
9. Output: Three CMOS Drain-open Output

Package Includes:

1 x 12V 5050 RGB LED Strip Controller box

1 x 24 Key IR Remote Control (Battery Included)
