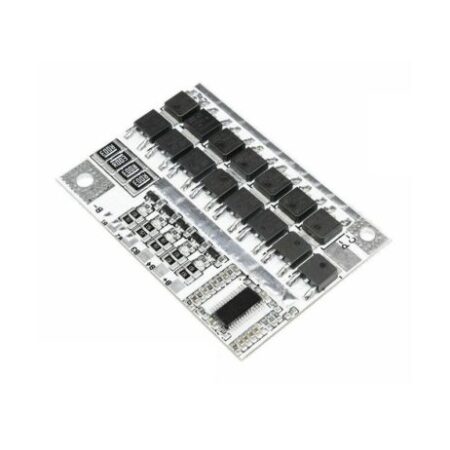

Save -24% BMS 5S 100A Battery Balance Charging BMS Battery Protection Board-white

BMS 5S 100A Battery Balance Charging BMS Battery Protection Board-white

Original price was: 350.00 EGP.Current price is: 265.00 EGP.

BMS 5S 100A LiFePO4 Battery Balance Charging BMS Battery Protection Board-white

  1. Shortage protects recover mode: Offload release.
  2. Contact discharge current:80A
  3. Synopline discharge current:60A
  4. Charging current:60A
  5. Ampere balance (Current) : 60MA
  6. Current balance accuracy : 4.14-4.24V
SKU BMS_5s100A 0Res SKU SYS x3299 Availability In stock
Quantities are confirmed after reviewing your order. Orders are normally prepared and shipped within 3–5 business days. Online availability does not necessarily mean the product is currently available at the branch. تأكيد الكميات بيتم بعد مراجعة الأوردر، وتجهيز وشحن الطلب بيستغرق عادة من 3 إلى 5 أيام عمل. توافر المنتج على الموقع لا يعني بالضرورة توافره داخل الفرع، لذلك اعمل الأوردر مسبقًا لتأكيد الكمية وتجهيزه.
تحتاج مساعدة؟ تواصل معنا
☎ Need help? Call us 0104 453 9059
Add to wishlist
Share
Fast shipping Delivery across Egypt
Flexible payment Cash and online options
Quantity confirmation Confirmed after order review
Technical support Help choosing compatible parts
Tags
5S LiFePO4 BMS Battery Protection Bms BMS 5S BMS 5S 100A Lifepo4

Description

BMS 5S 100A  Battery Balance Charging BMS Battery Protection Board-white

This protection board is 5s in common use lithium battery protection board (you can adjust for how many strings to be used) Specified chip, stable performance, support disconnection protection, over-current protection, over-discharge protection, overcharge protection, with balance, etc. A common use for “same port” and “different port”, the protection board uses 15 high-power of ultra-low resistance MOS tubes (discharge of 8, charging 7), in the same port mode can support the discharge current 60A, charging current 60A; different port mode discharges current 80A, charging current 60A. Can used for LMO.Ternary lithium battery.LCO (3.7V)battery packs etc.

White 5S 100A Lifepo4 Battery Balance Charging Bms Battery Protection Board

Generic White 5S 100A Lifepo4 Battery Balance Charging Bms Battery Protection Board 1

Features:

  1. Over charge protective current:100A
  2. Over discharge protective current:100A
  3. Over-discharge protect delay : 0.5-1.5S
  4. Temperature protection: Yes, have a Temperature control interface.
  5. Disconnect protect: Yes
  6. Shortage protect: Yes
  7. Shortage delay: 100-600 uS
  8. Shortage protects recover mode: Offload release.
  9. balance function: yes

Package Includes:

1 x White 5S 100A LiFePO4 Lithium Battery Protection PCB Board

For Li-Po  LiMnO Protect Parameter3.6V/3.7V
Single-cell battery overcharge protect voltage4.21-4.29 V
Single-cell battery overcharge protects recover voltage:4.14-4.24 V
Overcharge protect delay1.5-2.5S
Single cell battery over-discharge  protect voltage2.72-2.88 V
Single cell battery over-discharge  protect recover voltage2.9-3.1 V
Over charge protective current100A
Over discharge protective current100A
Over-discharge protect delay0.5-1.5S
Temperature protectionYes, have a Temperature control interface.
Disconnect protectYes
Shortage delay100-600 uS
Contact discharge current80A
Syncline discharge current60A
Charging current60A
Ampere balance (Current)60MA
Shipment Weight0.015 kg
Shipment Dimensions8 × 7 × 1 cm
