Description

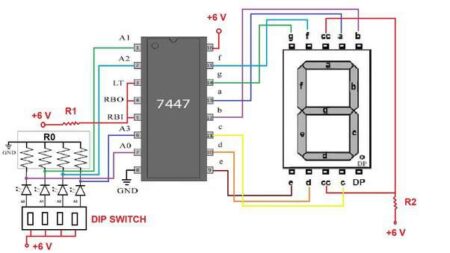

7447 IC BCD to 7-Segment Decoders/Drivers Common Anode

7447  BCD to 7-Segment Decoder/Driver Datasheet

Display patterns for BCD input counts above nine are unique symbols to authenticate input conditions. All of the circuits incorporate automatic leading and/or trailing-edge, zero-blanking control (RBI and RBO). Lamp test (LT) of these devices may be performed at any time when the BI/RBO node is at a high logic level. All types contain an overriding blanking input (BI) which can be used to control the lamp intensity (by pulsing) or to inhibit the outputs.

Features

• All circuit types feature lamp intensity modulation capability
• Open-collector outputs drive indicators directly
• Lamp-test provision
• Leading/trailing zero suppression

Pin Layout

Pin Description

Pin Number	Description
1	BCD B Input
2	BCD C Input
3	Lamp Test
4	RB Output
5	RB Input
6	BCD D Input
7	BCD A Input
8	Ground
9	7-Segment e Output
10	7-Segment d Output
11	7-Segment c Output
12	7-Segment b Output
13	7-Segment a Output
14	7-Segment g Output
15	7-Segment f Output
16	Vcc – Positive Supply

Dimensional Drawing

Technical Data

Absolute Maximum Ratings

Supply Voltage	7V
Input Voltage	5.5V
Operating Free Air Temperature	0°C to 70°C
Storage Temperature Range	-65°C to 150°C

Recommended Operating Conditions

Symbol	Parameter	Min	Typ	Max	Units
Vcc	Supply Votage	4.75	5	5.25	V
Vih	HIGH Level Input Voltage	2			V
Vil	LOW Level Input Voltage			0.8	V
Ioh	HIGH Level Output Current			-0.4	mA
Iol	LOW Level Output Current			16	mA
Ta	Free Air Operating Temperature	0		70	°C

Electrical Characteristics

Symbol	Parameter	Conditions	Min	Typ	Max	Units
Vi	Input Clamp Voltage	Vcc=Min Ii=-12mA			-1.5	V
Voh	HIGH Level Output Voltage	Vcc=Min Ioh=MAX Vil=MAX	2.4	3.4		V
Vol	LOW Level Output Voltage	Vcc=Min Iol=MAX Vih=MAX		0.2	0.4	V
Ii	Input Current@MAX Input Voltage	Vcc=Max Vi=5.5V			1	mA
Iih	HIGH Level Input Current	Vcc=Max Vi=2.4V			40	µA
Iil	LOW Level Input Current	Vcc=Max Vi=0.4V			-1.6	mA
Ios	Short Circuit Output Current	Vcc=Max	-18		-55	mA
Icch	Supply Current with Outputs HIGH	Vcc=Max		4	8	mA
Iccl	Supply Current with Outputs LOW	Vcc=Max		12	22	mA

Switching Characteristics at Vcc=5V,Ta=25°C

Symbol	Parameter	Conditions	Min	Typ	Max	Units
tplh	Propagation Delay Time LOW-to-HIGH Level Output	Cl=15pF Rl=400R			22	nS
tphl	Propagation Delay Time HIGH-to-LOW Level Output	Cl=15pF Rl=400R			15	nS
