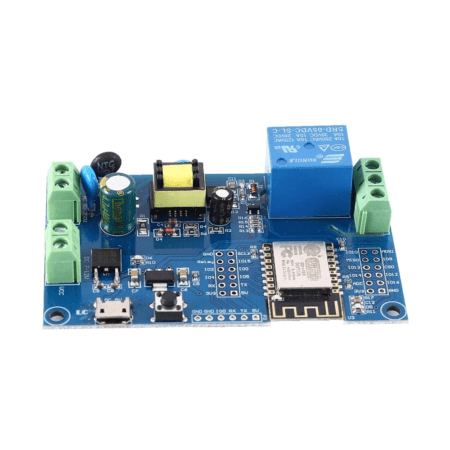

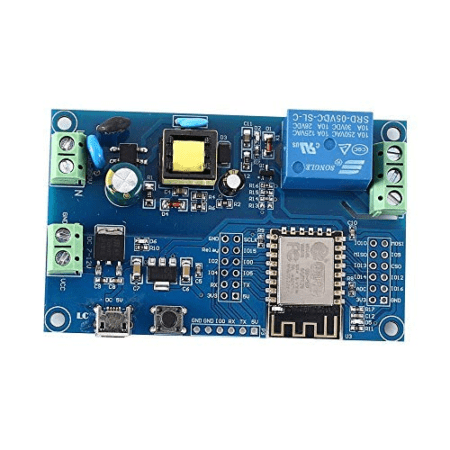

AC90-250V ESP8266 Wireless WIFI Relay Module 1 Channel ESP-12F Wifi Development Board AC/DC 5V/7-28V/5-80V Power Supply

AC90-250V ESP8266 Wireless WIFI Relay Module 1 Channel ESP-12F Wifi Development Board AC/DC 5V/7-28V/5-80V Power Supply

650.00 EGP

AC90-250V ESP8266 Wireless WIFI Relay Module 1 Channel ESP-12F Wifi Development Board AC/DC 5V/7-28V/5-80V Power Supply

  1. Onboard Mature and stable ESP-12F WiFi module, high capacity 4M Byte Flash
  2. The I/O port of the WiFi module and the UART program download port are all extracted, convenient secondary development
  3. Onboard AC-DC switch power module, supply power way support AC90-250V/DC7-12V/USB5V
  4. Onboard  Wifi module RST reset button
  5. ESP-12F support use Eclipse/Arduino IDE etc.
SKU Relay_5v1chWIFI V3 ESP12F AC90-250V MicroUSB SKU SYS X8186 Availability In stock
Quantities are confirmed after reviewing your order. Orders are normally prepared and shipped within 3–5 business days. Online availability does not necessarily mean the product is currently available at the branch. تأكيد الكميات بيتم بعد مراجعة الأوردر، وتجهيز وشحن الطلب بيستغرق عادة من 3 إلى 5 أيام عمل. توافر المنتج على الموقع لا يعني بالضرورة توافره داخل الفرع، لذلك اعمل الأوردر مسبقًا لتأكيد الكمية وتجهيزه.
تحتاج مساعدة؟ تواصل معنا
☎ Need help? Call us 0104 453 9059
Add to wishlist
Share
Fast shipping Delivery across Egypt
Flexible payment Cash and online options
Quantity confirmation Confirmed after order review
Technical support Help choosing compatible parts
Tags
ESP-12F ESP8266 Relay Module WiFi Relay Module Wireless WiFi Relay Module

Description

AC90-250V ESP8266 Wireless WIFI Relay Module 1 Channel ESP-12F Wifi Development Board AC/DC 5V/7-28V/5-80V Power Supply

AC/DC power ESP8266 WIFI single relay ESP-12F Dev board comes with onboard ESP-12F WiFi module, I/O orifice full lead, support AC90-250V/DC7-12V/USB 5V etc. many supply power ways. Provide Arduino develop environment reference code, suit for ESP8266 secondary development study, smart home wireless control.

Specifications and Features:

  1. Onboard Mature and stable ESP-12F WiFi module, high capacity 4M Byte Flash
  2. The I/O port of the WiFi module and the UART program download port are all extracted, convenient secondary development
  3. Onboard AC-DC switch power module, supply power way support AC90-250V/DC7-12V/USB5V
  4. Onboard  Wifi module RST reset button
  5. ESP-12F support use Eclipse/Arduino IDE etc.
  6. Onboard 1 channel 5V relay, output switch signal,
  7. Suitable for controlling and controlling the working voltage to be within the load of AC 250V/DC30V.
  8. Onboard power indicator,1 programmable LED and relay indicator.

Package Includes:

1 x AC/DC power ESP8266 WIFI single relay ESP-12F Dev board

Item Type:Other IoT Boards
Model No.:AC90-250V ESP8266
OnboardESP-12F WiFi module
Shipping Weight0.05 kg

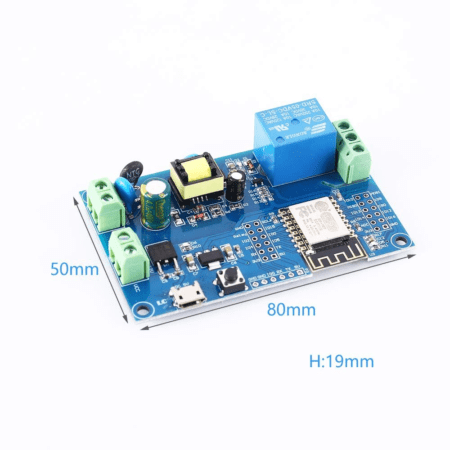

Shipping Dimensions6 × 3 × 2 cm

User manual: DOWNLOAD
