Official Raspberry Pi 27W USB-C Power Supply SC1158 for Raspberry Pi 5, Black US Type A version. Supports 5.1V/5A plus USB-PD 9V/3A, 12V/2.25A and 15V/1.8A with a 1.2m cable.
SKU
Charger_Rpi5 5v5A 27W Original US Black
SKU SYS
X9595
Availability
In stock
Quantities are confirmed after reviewing
your order. Orders are normally prepared
and shipped within 3–5 business days.
Online availability does not necessarily
mean the product is currently available
at the branch.
This item:Official Raspberry Pi 5 27W USB-C Power Supply 5.1V 5A – US Type A Plug, Black
Official Raspberry Pi 5 27W USB-C Power Supply 5.1V 5A – US Type A Plug, Black
The Official Raspberry Pi 27W USB-C Power Supply is the recommended high-current power supply for Raspberry Pi 5. This specific product is the Black US version with a Type A mains plug and an integrated black USB-C output cable.
Designed specifically around the power requirements of Raspberry Pi 5, it supports the high-current 5.1V / 5A power profile required for demanding workloads and high-power USB peripherals, while also providing standard USB Power Delivery profiles for compatible USB-C devices.

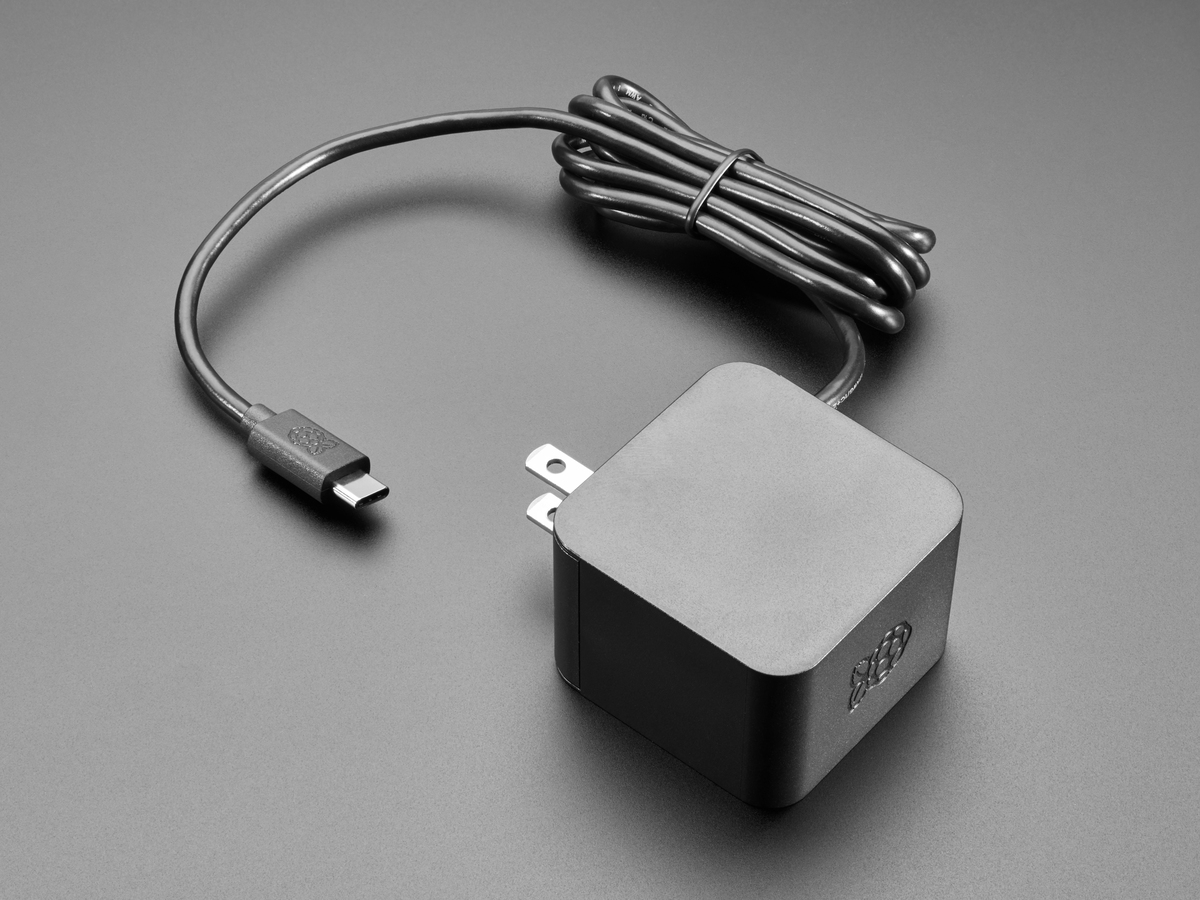

Official Raspberry Pi 27W USB-C Power Supply – Black US Type A version
Original Raspberry Pi Power Supply
This is an official Raspberry Pi power supply, manufacturer part number SC1158. Unlike a basic USB-C adapter, it supports USB Power Delivery negotiation and the high-current 5V mode used by Raspberry Pi 5.
When Raspberry Pi 5 detects a compatible 5V / 5A supply, it can increase the nominal current available to devices connected to its USB ports from the default 600mA limit to approximately 1.6A, which is particularly useful for SSDs, external drives and other higher-power peripherals.

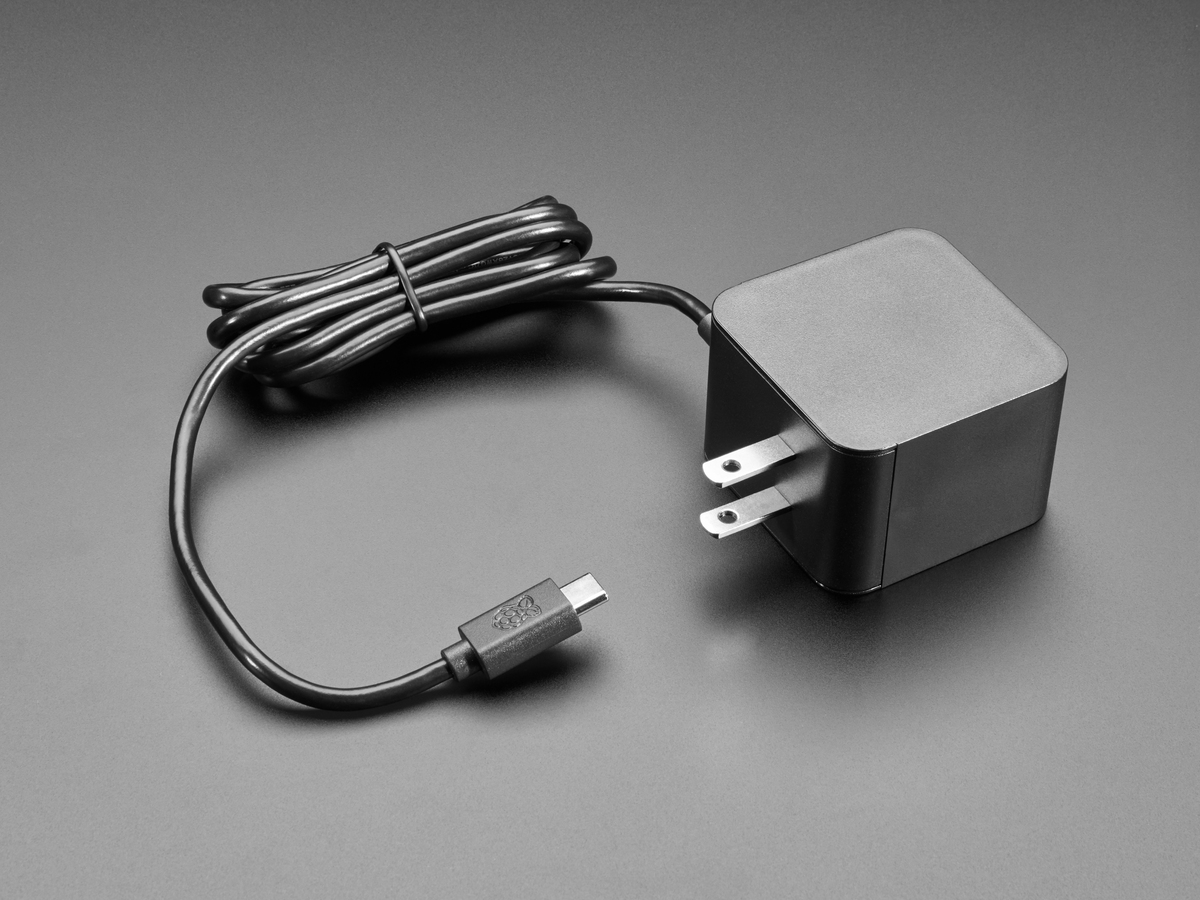

Black Official Raspberry Pi 27W USB-C Power Supply
Key Features
Official Raspberry Pi product.
Manufacturer part number SC1158.
Black US version.
US Type A mains plug.
Designed primarily for Raspberry Pi 5.
USB-C Power Delivery support.
Raspberry Pi high-current profile: 5.1V / 5A.
Additional 9V, 12V and 15V USB-PD profiles.
Maximum USB-PD output up to 27W.
Universal 100–240VAC input.
50–60Hz AC input frequency.
Integrated black USB-C cable.
1.2m nominal cable length.
17AWG cable according to the official Raspberry Pi product brief.
Suitable for Raspberry Pi 5 systems using high-power USB peripherals.
Can also power compatible third-party USB-C PD products.
Technical Specifications
Brand
Raspberry Pi
Product
Raspberry Pi 27W USB-C Power Supply
Manufacturer Part Number
SC1158
UPC / EAN
5056561803395
Variant
US / Black
Input Voltage
100–240VAC
Input Frequency
50–60Hz
Raspberry Pi Output
5.1V / 5A
5.1V Profile Power
25.5W
USB-PD Profile
9V / 3A – 27W
USB-PD Profile
12V / 2.25A – 27W
USB-PD Profile
15V / 1.8A – 27W
Maximum Rated PD Power
27W
Output Connector
USB Type-C
Mains Plug
US Type A
Colour
Black
Cable Length
1.2m nominal
Cable Gauge
17AWG
Average Active Efficiency
89.0%
Efficiency at 10% Load
87.9%
No-Load Power Consumption
0.1W
Raspberry Pi 27W USB-C Power Supply product details
Power for Raspberry Pi 5 and High-Power USB Devices
The Raspberry Pi 5 can operate from lower-current power supplies in some configurations, but the official 27W supply provides the high-current 5.1V / 5A mode intended for the board.
This is especially useful when the system powers devices such as:
USB SSDs.
External hard drives.
NVMe enclosures connected through USB.
USB storage adapters.
Multiple USB peripherals.
Higher-current USB devices.
USB Power Delivery Profiles
5.1V
5A
25.5W – Raspberry Pi high-current profile
9V
3A
27W
12V
2.25A
27W
15V
1.8A
27W
Why Is It Called 27W?
The Raspberry Pi-specific 5.1V / 5A mode equals approximately 25.5W. The product is officially named the 27W USB-C Power Supply because the standard 9V / 3A and 12V / 2.25A USB-PD profiles can deliver the full 27W.

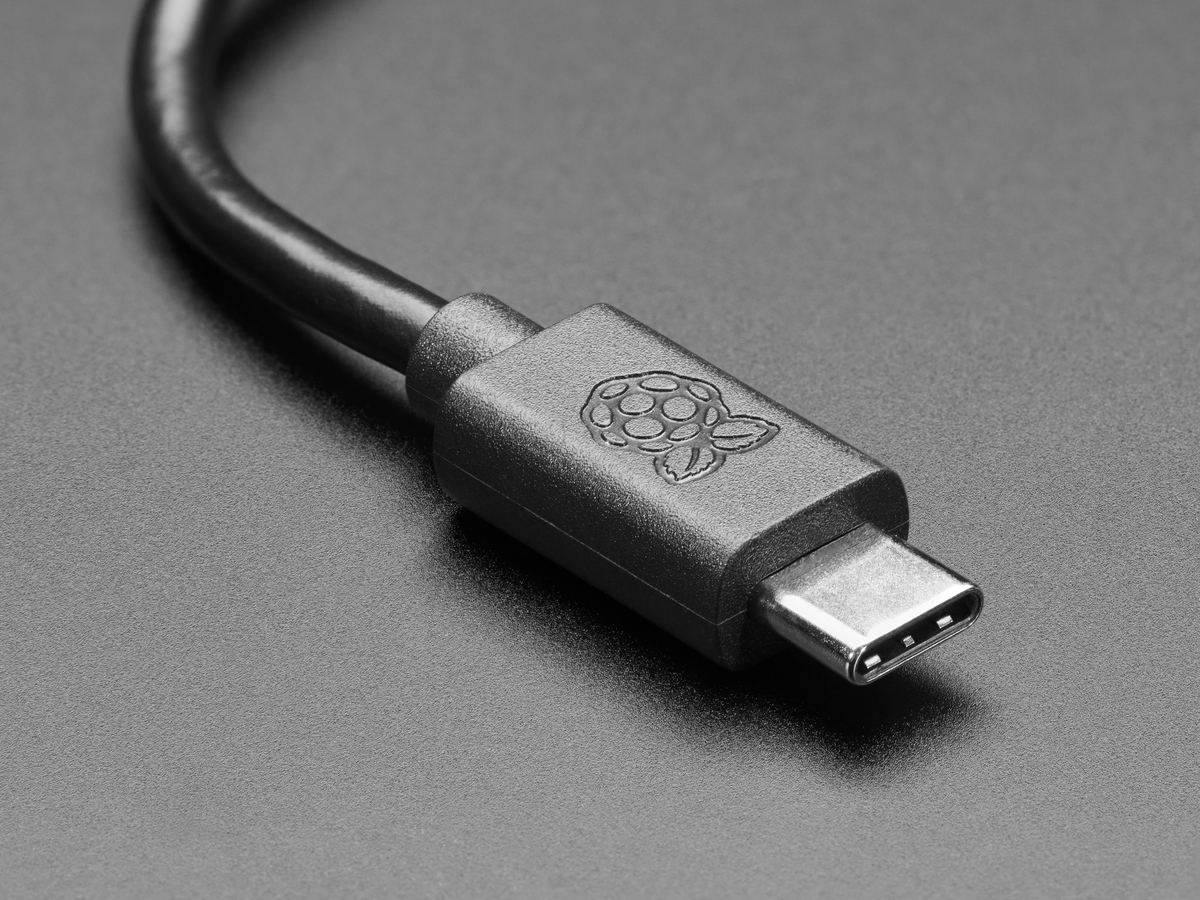

USB-C Connector
The supply uses a permanently attached USB Type-C output cable. USB Power Delivery negotiation allows the connected compatible device to select an appropriate supported power profile.
Integrated USB-C output connector
US Type A Plug
X9595 is specifically the United States version and uses a US Type A plug with two flat parallel pins.
The electrical input range is 100–240VAC, but physical socket compatibility depends on the plug type and the country where the product is used.
1.2m Cable
The fixed black USB-C cable has a nominal length of approximately 1.2 meters. Raspberry Pi’s current official product brief specifies the cable as 17AWG.
Efficiency
Average active efficiency: 89.0%.
Efficiency at 10% load: 87.9%.
No-load consumption: approximately 0.1W.
Compatibility
The power supply is designed for Raspberry Pi 5 and is also suitable for compatible USB-C Power Delivery devices that support one of the available power profiles.
The connected device and power supply negotiate the required profile through USB-PD; the adapter does not force the maximum current into every connected device.
Applications
Raspberry Pi 5 desktop systems.
Raspberry Pi servers.
IoT gateways.
Robotics.
Home automation.
USB SSD and storage projects.
Development systems.
Educational projects.
Compatible USB-C PD products.
Package Includes
1 × Official Raspberry Pi 27W USB-C Power Supply.
US Type A plug.
Integrated black USB-C cable.
Raspberry Pi board and other accessories are not included.
