Official Raspberry Pi 27W USB-C Power Supply for Raspberry Pi 5, White USA Type A version. Supports 5.1V/5A plus USB-PD 9V/3A, 12V/2.25A and 15V/1.8A with a 1.2m USB-C cable.
SKU
Charger_Rpi5 5v5A 27W Original US White
SKU SYS
X9596
Availability
In stock
Quantities are confirmed after reviewing
your order. Orders are normally prepared
and shipped within 3–5 business days.
Online availability does not necessarily
mean the product is currently available
at the branch.
This item:Official Raspberry Pi 5 27W USB-C Power Supply 5.1V 5A – US Type A Plug, White
Official Raspberry Pi 5 27W USB-C Power Supply 5.1V 5A – US Type A Plug, White
The Official Raspberry Pi 27W USB-C Power Supply is the recommended high-current power solution for Raspberry Pi 5. This product is specifically the White USA version with a Type A mains plug and an integrated USB-C output cable.
Designed around the power requirements of Raspberry Pi 5, it provides the special 5.1V / 5A power profile needed to support demanding workloads and higher-power USB peripherals, while also supporting standard USB Power Delivery profiles for compatible USB-C devices.

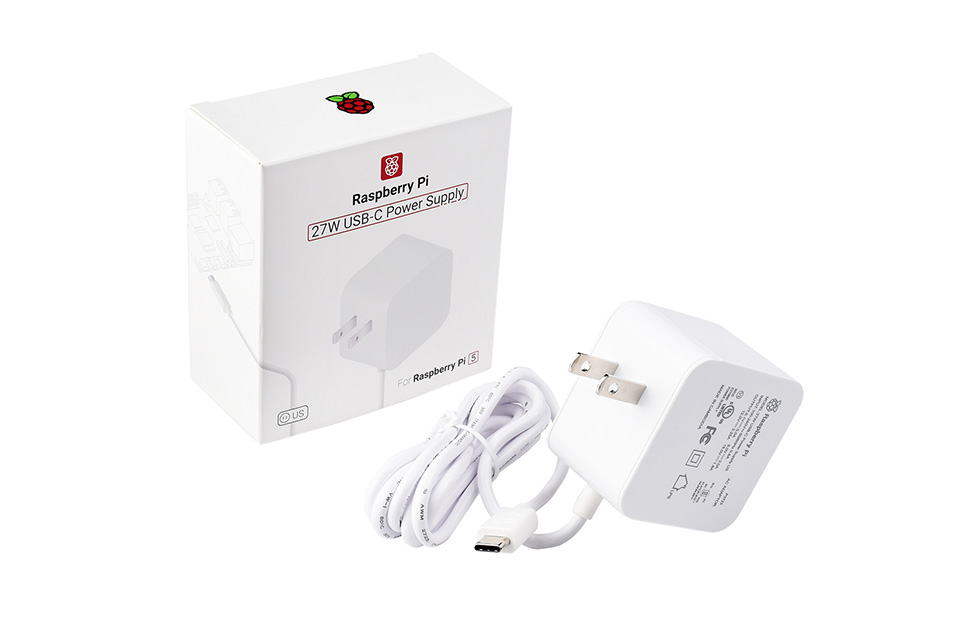

Official Raspberry Pi 27W USB-C Power Supply – White US Type A version
Official Raspberry Pi Power Supply
This is an original Raspberry Pi power supply rather than a generic USB-C charger. It is designed to correctly negotiate the high-current USB-C PD power mode supported by Raspberry Pi 5.
With an appropriate 5V / 5A power supply detected, Raspberry Pi 5 can make significantly more current available to attached USB peripherals than when operated from a lower-current supply. This is especially useful with SSDs, hard drives, storage adapters and other demanding USB devices.

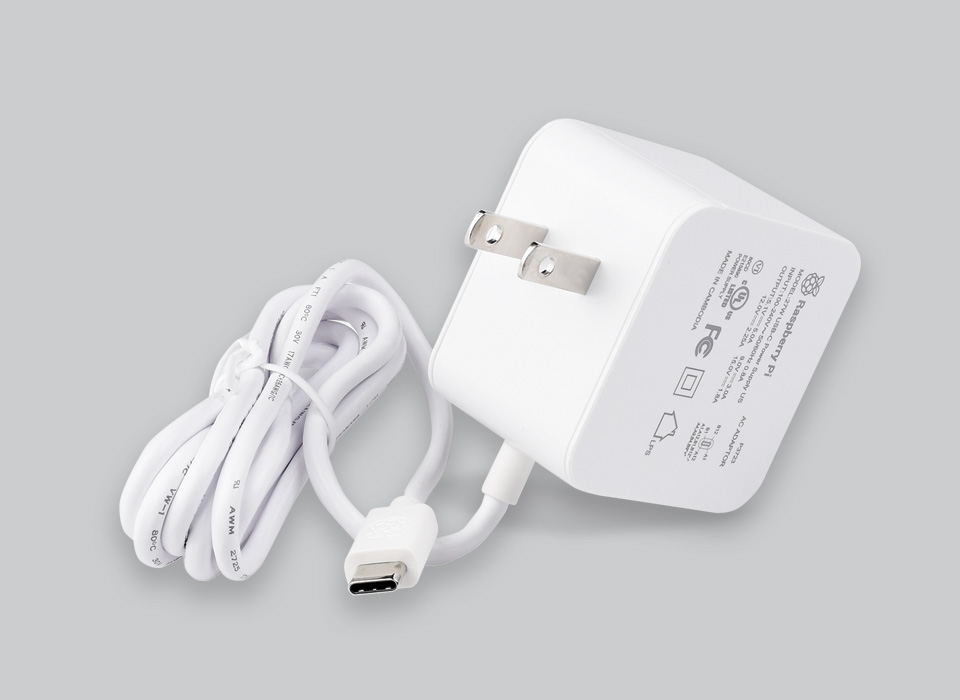

White Raspberry Pi 27W USB-C power supply with US Type A plug
17AWG cable according to the official Raspberry Pi product brief.
Compatible with suitable third-party USB-C PD devices.
Technical Specifications
Brand
Raspberry Pi
Product
Raspberry Pi 27W USB-C Power Supply
Variant
USA / White
Manufacturer Part Number
SC1153
EAN
5056561803388
AC Input
100–240VAC
Input Frequency
50–60Hz
Raspberry Pi Output
5.1V / 5A
5.1V Mode Power
25.5W
USB-PD Profile
9V / 3A – 27W
USB-PD Profile
12V / 2.25A – 27W
USB-PD Profile
15V / 1.8A – 27W
Maximum Rated PD Power
27W
Output Connector
USB Type-C
Mains Plug
USA Type A
Colour
White
Cable Length
1.2m nominal
Cable Gauge
17AWG
Average Active Efficiency
89.0%
Efficiency at 10% Load
87.9%
No-Load Consumption
0.1W
5.1V / 5A Mode for Raspberry Pi 5
Raspberry Pi 5 is designed to benefit from a high-current 5V / 5A supply. Using the official PSU enables the board to negotiate the Raspberry Pi-specific high-current power mode and provide more available power for connected hardware.
This is useful when operating:
USB SSDs.
External hard drives.
High-current USB storage.
Multiple USB peripherals.
USB adapters and enclosures.
Other peripherals powered directly by Raspberry Pi 5.
USB Power Delivery Profiles
5.1V
5A
25.5W – Raspberry Pi high-current profile
9V
3A
27W
12V
2.25A
27W
15V
1.8A
27W
Why Is the Product Called 27W?
The Raspberry Pi-specific 5.1V / 5A profile corresponds to approximately 25.5W. The adapter is rated and marketed as a 27W USB-C power supply because its standard USB-PD profiles can deliver the full 27W, including 9V / 3A and 12V / 2.25A.
Wide AC Input
The power supply accepts 100–240VAC at 50–60Hz. This specific version uses a fixed USA Type A mains plug.
Integrated USB-C Cable
The USB-C cable is permanently attached to the power supply and has a nominal length of approximately 1.2 meters.
The official Raspberry Pi product brief specifies a 17AWG cable.
Efficiency
Average active efficiency: 89.0%.
Efficiency at 10% load: 87.9%.
No-load power consumption: approximately 0.1W.
Compatibility
The supply is recommended for Raspberry Pi 5 and can also power compatible USB-C Power Delivery devices that support one of its available PD profiles.
The connected device negotiates the appropriate voltage and current using USB Power Delivery; the adapter does not simply force 5A into every connected USB-C device.
Typical Applications
Raspberry Pi 5 desktop systems.
Raspberry Pi servers.
IoT gateways.
Robotics.
Home automation.
USB SSD and storage projects.
Development and education.
Compatible USB-C PD equipment.
Package Includes
1 × Official Raspberry Pi 27W USB-C Power Supply.
White USA Type A version.
Integrated white USB-C cable.
Raspberry Pi board and other accessories are not included.
