Save -15% Out of stock GSM GPRS SIM808 Module SMS Chip Development Board

GSM GPRS SIM808 Module SMS Chip Development Board

Quad-band 850/900/1800/1900MHz
GPRS multi-slot class12 connectivity: max. 85.6kbps(down-load/up-load)
GPRS mobile station class B
Controlled by AT Command (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands)
Supports charging control for Li-Ion battery
Supports Real-Time Clock
Integrated GPS/CNSS and supports A-GPS
Low power consumption, 10mA in sleep mode

SKU Small Sim808 Module (Gsm,GPRS,GPS) SKU SYS X7166 Availability Out of stock

Quantities are confirmed after reviewing your order. Orders are normally prepared and shipped within 3–5 business days. Online availability does not necessarily mean the product is currently available at the branch. تأكيد الكميات بيتم بعد مراجعة الأوردر، وتجهيز وشحن الطلب بيستغرق عادة من 3 إلى 5 أيام عمل. توافر المنتج على الموقع لا يعني بالضرورة توافره داخل الفرع، لذلك اعمل الأوردر مسبقًا لتأكيد الكمية وتجهيزه.

Fast shipping Delivery across Egypt

Flexible payment Cash and online options

Quantity confirmation Confirmed after order review

Technical support Help choosing compatible parts

Description

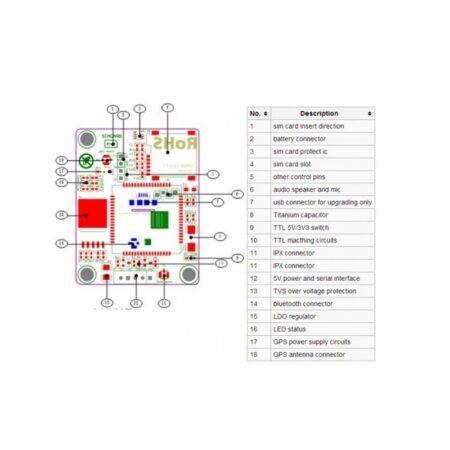

GSM GPRS SIM808 Module SMS Chip Development Board

SIM808 module is a GSM and GPS two-in-one function module. It is based on the latest GSM/GPS module SIM808 from SIMCOM, supports GSM/GPRS Quad-Band network and combines GPS technology for satellite navigation. It features ultra-low power consumption in sleep mode and integrated with charging circuit for Li-Ion batteries, that make it get a super long standby time and convenient for projects that use rechargeable Li-Ion battery. It has high GPS receive sensitivity with 22 tracking and 66 acquisition receiver channels. Besides, it also supports A-GPS that available for indoor localization. The module is controlled by AT command via UART and supports 3.3V and 5V logical level.

Sample Applications:

Send a text message in English.
Specified calls, automatically hang up after 1 minute.
Received specified text messages, control LED open circuit.
Detection module registered to the network, send the message until reading a SIM card.
Connect to the specified server and send the specified data by GPRS.
Provide information of dormant power consumption at about 10 MA

Features:

Quad-band 850/900/1800/1900MHz
GPRS multi-slot class12 connectivity: max. 85.6kbps(down-load/up-load)
GPRS mobile station class B
Controlled by AT Command (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands)
Supports charging control for Li-Ion battery
Supports Real-Time Clock
Integrated GPS/CNSS and supports A-GPS
Low power consumption, 10mA in sleep mode
Supports GPS NMEA protocol
AT command operation, can support SMS, phone, GPRS data, GPS data is automatically output, embedded TCP protocol to support transparent mode and command mode, supports HTTP protocol to support DTMF decoding, support MMS, support recording function, etc.
Standard SIM Card

Package Includes:

1 x GSM GPRS SIM808 Module SMS Chip Development Board

Item Type:	Dev. Board
Operating Temperature (°C)	-40 to 85
Characteristic	GSM/GPRS
Transmit Power (dBm)	Class 4(2W)at GSM 850 and EGSM 900 Class 1(1W)at DCS 1800 and PCS 1900
GPRS Transmission Rate	GPRS Downlink Data Transmission: max.85.6kbps GPRS Uplink Data Transmission: max.85.6kbps
SIM Card Interface	Support SIM card: 1.8V,3V Support 2G/3G/4G Mobile Unicom card
Serial Port	Support baud rate auto recognization Rate:1200-115200bps
GPS Characteristic	Horizontal Accuracy: <2.5m Speed Accuracy(DGPS): 0.05m/s Timing Accuracy: 10ns
Power Consumption (W)	Acquisition: 42mA (3.8V at -130dBm,GSM IDLE)
Bluetooth Characteristic	Support 4 way ACL link
Length (mm):	50
Width (mm):	43
Height (mm):	10
Weight (g):	17
Shipping Weight	0.03 kg
Shipping Dimensions	6 × 5 × 1 cm
