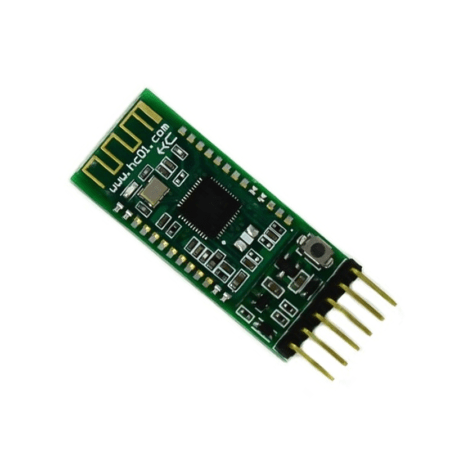

HC-42 6pin Bluetooth 5.0BLE Serial Port Module

HC-42 6pin Bluetooth 5.0BLE Serial Port Module

450.00 EGP
  1. Frequency Band: 2.4G.
  2. Air Rate: 1Mbps/2Mbps.
  3. Working Voltage: 1.8~3.6V.
  4. Antenna: PCB internal antenna.
  5. Shutdown Current: 0.3μA.
  6. Working Temperature: -25℃~+75℃.
  7. Reference Distance: 40m/2Mbps.
SKU Blue_HC-42 6pin Bluetooth 5.0BLE SKU SYS X8206 Availability In stock
Quantities are confirmed after reviewing your order. Orders are normally prepared and shipped within 3–5 business days. Online availability does not necessarily mean the product is currently available at the branch. تأكيد الكميات بيتم بعد مراجعة الأوردر، وتجهيز وشحن الطلب بيستغرق عادة من 3 إلى 5 أيام عمل. توافر المنتج على الموقع لا يعني بالضرورة توافره داخل الفرع، لذلك اعمل الأوردر مسبقًا لتأكيد الكمية وتجهيزه.
تحتاج مساعدة؟ تواصل معنا
☎ Need help? Call us 0104 453 9059
Add to wishlist
Share
Fast shipping Delivery across Egypt
Flexible payment Cash and online options
Quantity confirmation Confirmed after order review
Technical support Help choosing compatible parts
Tags
Bluetooth 5.0 HC42 Bluetooth Module

Description

HC-42 6pin Bluetooth 5.0BLE Serial Port Module

The HC-42 6pin Bluetooth 5.0BLE Serial Port Module is a new generation of digital transmission module based on the Bluetooth BLE V5.0 Bluetooth protocol. The working frequency band is 2.4GHz ISM, and the modulation method is GFSK. The module’s maximum transmit power is 4dBm and the receiving sensitivity is -96dBm.

The HC-42 6pin Bluetooth 5.0BLE Serial Port Module uses BLE (Bluetooth Low Energy) protocol. The main difference between Bluetooth and BLE is power consumption. Bluetooth consumes more power than BLE but can handle a lot of data. BLE is more appropriate for quickly transferring small amounts of data between nearby devices. BLE is less power-hungry, so the devices running this protocol can operate for years with a small battery; perfect for IoT!

Note: The product dimensions may have ±2% error. Color also may vary due to light effect.

Specifications :

  1. Part Number: HC-42D
  2. Version: BLE 5.0
  3. Module Size: 37mm *15.6 mm
  4. Frequency Band: 2.4G
  5. Air Rate: 1Mbps/2Mbps
  6. Working Voltage: 1.8~3.6V
  7. Antenna: PCB internal antenna
  8. Shutdown Current: 0.3μA
  9. Communication Interface: UART
  10. Sensitivity: -96dBm@1Mbps
  11. Level: 1.8~3.6V，Same to Working Voltage
  12. Working Humidity: 10％~90％
  13. Transmit Power: -40~4dBm
  14. Storage Temperature: -40℃~+85℃
  15. Reference Distance: 40m/2Mbps（BLE 5.0）
  16. Working Temperature: -25℃~+75℃

Package Includes :

1 x HC-42 6pin Bluetooth 5.0BLE Serial Port Module.

Item Type:HC Series Module
Bluetooth Version:BLE, 5.0
Voltage Rating (VDC):1.8 to 3.6
Input Voltage (V):1.8 ~ 3.6
Sensitivity (dBm):-96dBm@1Mbps
Additional Specs.:Air Rate: 1Mbps/2Mbps
Dimensions (L x W x H) mm37 x 15.5 x 4
Weight (g):2
Shipping Weight0.005 kg
Shipping Dimensions5 × 3 × 2 cm
