Save -17% Out of stock MAX31855 K-Type Thermocouple Module High Accuracy

MAX31855 K-Type Thermocouple Module High Accuracy

Power Supply: 3.3 to 5v
Interface: 3 wire SPI
Accuracy: 0.25 degree temperature
Compatible Thermocouple: K type
Measurement Temperature Range: -200 °C to 1350 °C

SKU MAX31855 Module High Accuracy SKU SYS x3384 Availability Out of stock

Quantities are confirmed after reviewing your order. Orders are normally prepared and shipped within 3–5 business days. Online availability does not necessarily mean the product is currently available at the branch. تأكيد الكميات بيتم بعد مراجعة الأوردر، وتجهيز وشحن الطلب بيستغرق عادة من 3 إلى 5 أيام عمل. توافر المنتج على الموقع لا يعني بالضرورة توافره داخل الفرع، لذلك اعمل الأوردر مسبقًا لتأكيد الكمية وتجهيزه.

Fast shipping Delivery across Egypt

Flexible payment Cash and online options

Quantity confirmation Confirmed after order review

Technical support Help choosing compatible parts

Description

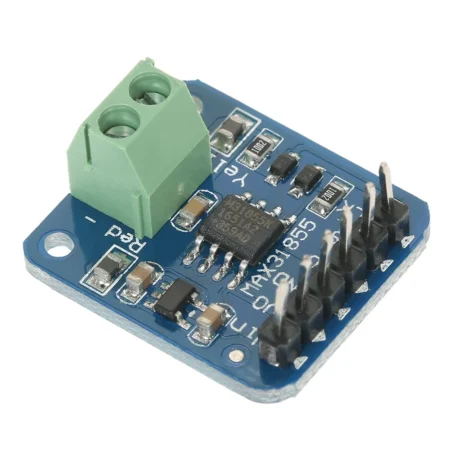

MAX31855 K-type thermocouple module High Accuracy

MAX31855 Thermocouples are very sensitive, requiring a good amplifier with a cold-compensation reference. The MAX31855K does everything for you and can be easily interfaced with any microcontroller, even one without an analog input. This breakout board has the chip itself, a 3.3V regulator with 10uF bypass capacitors, and level shifting circuitry, all assembled and tested. Comes with a 2 pin terminal block (for connecting to the thermocouple) and pin header (to plug into any breadboard or perfboard).

Features:

Works with any K type thermocouple
Will not work with any other kind of thermocouple other than K type
-200°C to 1350°C output in 0.25-degree increments – note that K thermocouples have about ±2°C to ±6°C accuracy
Internal temperature reading
3.3 to 5v power supply and logic level compliance!
SPI data output requires any 3 digital I/O pins.

Package Includes:

1 x MAX31855 K-type thermocouple module

Attachments:

Datasheet: DOWNLOAD

Specification:

Operating Voltage (VDC)	3.3 ~ 5
Accuracy	0.25 degree temperature
Interface	SPI
Temperature Measuring Range (°C)	-200 to 1350
Resolution	14 bit
Length (mm)	20
Width (mm)	20
Height (mm)	3.2
Weight (gm)	1.33
Shipment Weight	0.002 kg
Shipment Dimensions	2 × 2 × 1 cm
