Save -27% Out of stock NEO-6M V2 GPS Module with EPROM

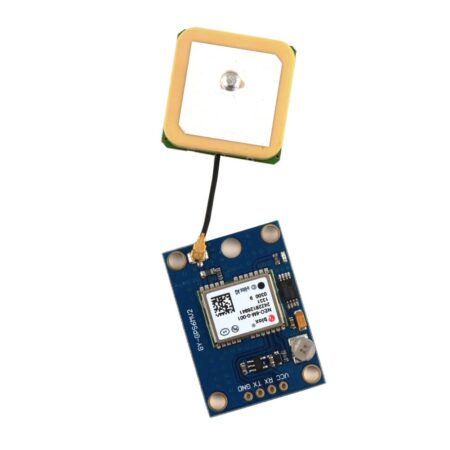

NEO-6M V2 GPS Module with EPROM

5Hz position update rate.
The cold start time of 38 s and Hot start time of 1 s.
Configurable from 4800 Baud to 115200 Baud rates. (default 9600).
SuperSense ® Indoor GPS: -162 dBm tracking sensitivity.
Support SBAS (WAAS, EGNOS, MSAS, GAGAN).
Separated 18 x 18mm GPS antenna

SKU Ublox NEO-6mV2 Blue GPS Module SKU SYS x3218 Availability In stock

Quantities are confirmed after reviewing your order. Orders are normally prepared and shipped within 3–5 business days. Online availability does not necessarily mean the product is currently available at the branch. تأكيد الكميات بيتم بعد مراجعة الأوردر، وتجهيز وشحن الطلب بيستغرق عادة من 3 إلى 5 أيام عمل. توافر المنتج على الموقع لا يعني بالضرورة توافره داخل الفرع، لذلك اعمل الأوردر مسبقًا لتأكيد الكمية وتجهيزه.

Fast shipping Delivery across Egypt

Flexible payment Cash and online options

Quantity confirmation Confirmed after order review

Technical support Help choosing compatible parts

Description

NEO-6M V2 GPS Module with EPROM

If you are wandering to navigate the distance with a drone then this GPS Module is needed for you. GPS drones are equipped with a GPS module that allows them to know their location relative to a network of orbiting satellites. Connecting to signals from these satellites allows the drone to perform functions such as position hold, autonomous flight, return to home, and waypoint navigation.

This is a complete GPS module that is based on the NEO 6M GPS. This unit uses the latest technology to give the best possible positioning information and includes a larger built-in 25 x 25mm active GPS antenna with a UART TTL socket. A battery is also included so that you can obtain a GPS lock faster. This is an updated GPS module that can be used with ardupilot mega v2. This GPS module gives the best possible position information, allowing for better performance with your Ardupilot or other Multirotor control platform.

The GPS module has serial TTL output, it has four pins: TX, RX, VCC, and GND. You can download the u-center software for configuring the GPS and changing the settings and much more. It is really good software (see link below).

NOTE:

NEO-6M GPS Module is not compatible with APM 2.8 Flight Controller

Interfacing NEO-6M with Arduino:

Features:

5Hz position update rate
Operating temperature range: -40 TO 85°CUART TTL socket
EEPROM to save configuration settings
Rechargeable battery for Backup
The cold start time of 38 s and Hot start time of 1 s
Supply voltage: 3.3 V
Configurable from 4800 Baud to 115200 Baud rates. (default 9600)
SuperSense ® Indoor GPS: -162 dBm tracking sensitivity
Support SBAS (WAAS, EGNOS, MSAS, GAGAN)
Separated 18X18mm GPS antenna

Useful Links:

For Arduino code Click here

6 GPS Receiver and Protocol Description

Onboard M24C32-R (432RP marking) EEPROM datasheet

Onboard voltage regulator MIC5205 (marked KB33) datasheet

Arduino NEO-6M library

To connect the Neo GPS module with Raspberry Pi Click here

Package Includes:

1 x NEO-6M GPS Board.

1 x Detachable Antenna.

Model	Ublox NEO-6M v2
Receiver Type	50 Channels GPS L1 frequency, C/A Code SBAS: WAAS, EGNOS, MSAS
Input Supply Voltage (VDC)	2.7 ~ 6
Main Chip	NEO-6
Sensitivity (dBm)	-160 156 Cold Start (without aiding): -147 dBm Tracking & Navigation: -161 dBm
Navigation Update Rate	5Hz
Position Accuracy (Meter)	2
Operating Temperature Range (°C)	-24 to 84
Tracking Sensitivity (dBm)	-161 dBm
Avg Cold Start Time (s)	27
Warm Start Time (s)	27
Maximum Speed	500 M/s
Dimensions (mm) LxWxH	Antenna – 25 x 25 x 7 GPS Board – 22 x 30 x 4
Weight (gm)	12
Cable Length (cm)	10
Shipment Weight	0.016 kg
Shipment Dimensions	8 × 6 × 4 cm
