Description

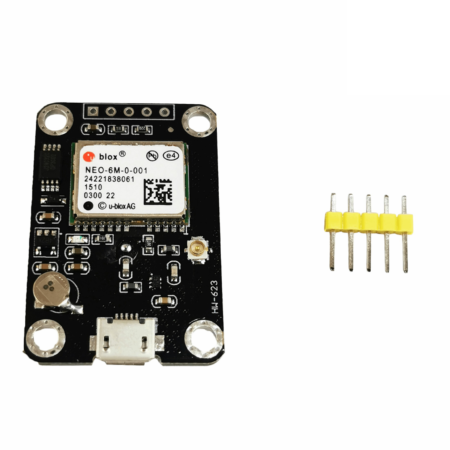

Ublox NEO-6M GPS Module HW-623 With Micro USB NEO-6M-0-001

Characteristics.
With a USB interface, you can directly use the mobile phone data cable to see the positioning effect on the computer. The USB is directly connected to the computer, that is, using the host computer’s own serial port function, no need to connect other serial

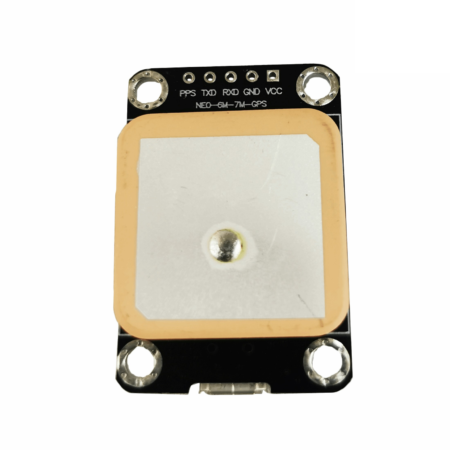

port modules With passive ceramic antenna and passive antenna amplifier circuit, the effect is better when used alone.
With the IPX interface, you can connect directly to the IPX
active antenna Increase the amplification of the MAX2659 signal, the search signal is stronger
The NEO-6M GPS module has high sensitivity, low power consumption, small size and its tracking sensitivity is extremely high. Greatly expands your positioning coverage. In places where common GPS receiver modules cannot be located, such as in narrow urban spaces and dense wooded environment, the NEO-6M can locate with high accuracy. The module’s high sensitivity, small static drift, low power consumption, and compact size are suitable for in-vehicle applications, wearable devices such as PDAs, vehicle monitoring, mobile phones, cameras, and other mobile positioning systems. It is the best choice for GPS product applications.

Technical Specifications.
1. Voltage

Input Voltage: 3.3-5.5V

2. Power Consumption

Normal Mode: 50 mA

Power saving mode: 30 mA

3. Temperature

Working temperature -40°C to +85°C

Storage Temperature -55°C to +100°C

Connection
1 VDC Power Pin, voltage 3.3-5.5V
2 GND Ground
3 RXD Module serial port receiving pin – connected to the serial port TXD transmitter
4 TXD Module serial port sending pin – connected to the microcontroller serial port RXD received
5 PPS Clock pulse output pin
