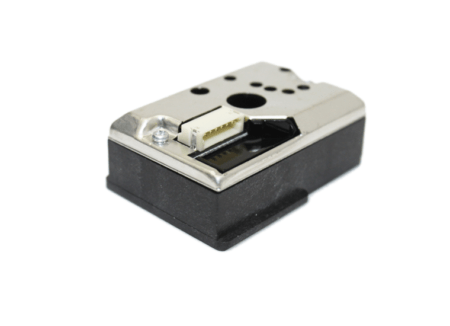

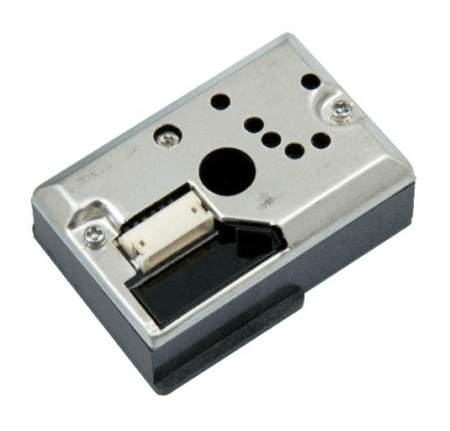

PM2.5 GP2Y1010AU0F Dust Smoke Particle Sensor

PM2.5 GP2Y1010AU0F Dust Smoke Particle Sensor

450.00 EGP

PM2.5 GP2Y1010AU0F Dust Smoke Particle Sensor

  1. Power supply voltage: DC5 ± 2V
  2. Sensitivity: 0.5V / (0.1mg / m3)
  3. The minimum detection level of particles: 0.8 m
  4. Clean air voltage: 0.9V typ.
  5. Low consumption current (Icc: MAX. 20 mA)
  6. The presence of dust can be detected by the photometry of only one pulse
  7. Enable to distinguish smoke from house dust
SKU PM2.5 GP2Y1010AU0F Dust Sensor SKU SYS X8227 Availability In stock
Quantities are confirmed after reviewing your order. Orders are normally prepared and shipped within 3–5 business days. Online availability does not necessarily mean the product is currently available at the branch. تأكيد الكميات بيتم بعد مراجعة الأوردر، وتجهيز وشحن الطلب بيستغرق عادة من 3 إلى 5 أيام عمل. توافر المنتج على الموقع لا يعني بالضرورة توافره داخل الفرع، لذلك اعمل الأوردر مسبقًا لتأكيد الكمية وتجهيزه.
تحتاج مساعدة؟ تواصل معنا
☎ Need help? Call us 0104 453 9059
Add to wishlist
Share
Fast shipping Delivery across Egypt
Flexible payment Cash and online options
Quantity confirmation Confirmed after order review
Technical support Help choosing compatible parts

Description

PM2.5 GP2Y1010AU0F Dust Smoke Particle Sensor

This PM2.5 GP2Y1010AU0F Dust Smoke Particle Sensor is an infrared emitting diode (IRED) and a phototransistor are diagonally arranged into this device. It detects the reflected light of dust in the air. Especially, it is effective to detect very fine particle like the cigarette smoke. In addition, it can distinguish smoke from house dust by the pulse pattern of the output voltage.

The module is mainly used for dust removal equipment alarm equipment, air purification equipment, dust robots, fire alarm, etc. industry equipment can detect smoke particles, pollen spores, and other particles.

Applications:

1. Detecting of dust in the air.
2. Example: Air purifier, Air conditioner, the Air monitor.

Features :

  1. Compliant with RoHS directive (2002/95/EC)
  2. Compact, thin package (46.0 × 30.0 × 17.6 mm)
  3. Low consumption current (Icc: MAX. 20 mA)
  4. The presence of dust can be detected by the photometry of only one pulse
  5. Enable to distinguish smoke from house dust
  6. Lead-free and RoHS directive compliant

Package Includes :

1 x PM2.5 GP2Y1010AU0F Dust Smoke Particle Sensor.
1 x Connecting cable.
1x 150 Ω resistor.
1 x 220 μF capacitor.

Item Type:Dust Sensor
Model No.:GP2Y1010AU0F
Operating Current (mA):20
Sensitivity (dBm):0.5V/(0.1mg/m3)
Operating Temperature (°C):-10 to 60
Dimensions (L x W x H) mm46 x 34 x 18
Weight (g):16
Shipping Weight0.02 kg
Shipping Dimensions5 × 4 × 1 cm

Datasheet

DOWNLOAD
