Push Button Momentary Switch Square Shape 2 Pin DS-430
Original price was: 7.00 EGP.5.00 EGPCurrent price is: 5.00 EGP.
Push Button Momentary Switch Square Shape 2 Pin DS-430
Quantities are confirmed after reviewing
your order. Orders are normally prepared
and shipped within 3–5 business days.
Online availability does not necessarily
mean the product is currently available
at the branch.
تأكيد الكميات بيتم بعد مراجعة الأوردر،
وتجهيز وشحن الطلب بيستغرق عادة من
3 إلى 5 أيام عمل.
توافر المنتج على الموقع لا يعني بالضرورة
توافره داخل الفرع، لذلك اعمل الأوردر
مسبقًا لتأكيد الكمية وتجهيزه.
Fast shipping
Delivery across Egypt
Flexible payment
Cash and online options
Quantity confirmation
Confirmed after order review
Technical support
Help choosing compatible parts
- Description
Description

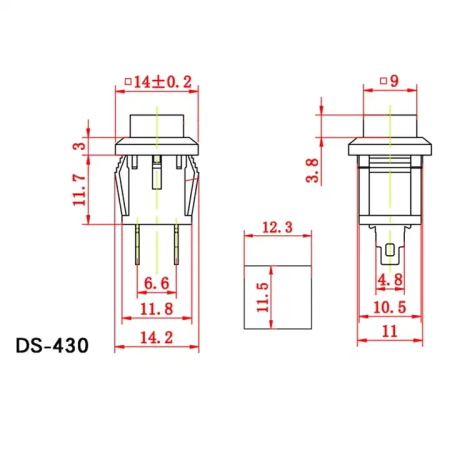

Push Button Momentary Switch Square Shape 2 Pin DS-430
- Model: DS-430
- Type: NO (normally open)
- Rating: 2A 125V || 1A 250V
- Contact Form: SPST
- Action Type: Momentary
- Contact Resistance:35mΩ max.
- Insulation Resistance:≥100MΩ at 500VDC
- Dielectric Strength:1500VAC for 1 minute
- Operating Temperature:-25℃- +85℃
- Electrical Life: more than 10000 Cycles
- Button Color: Red
- Height:25mm
- Mounting Hole:11mm x 13mm
- Pushing and holding to ON, Released to OFF
