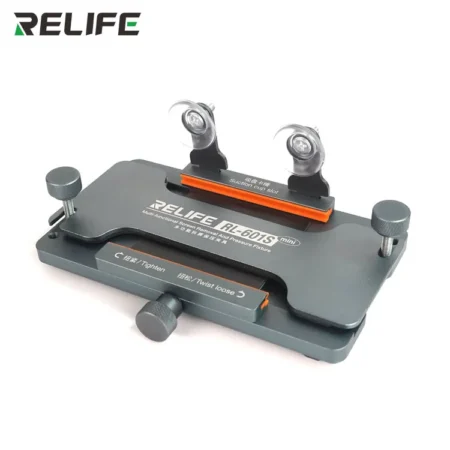

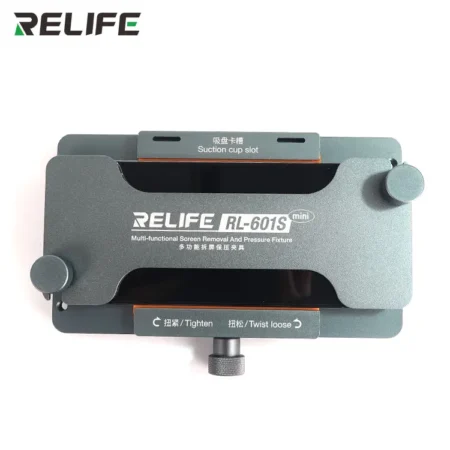

RELIFE Dismantling Screen & Pressure-Holding Fixture Multi-Function RL-601S Mini
Overview
The RELIFE RL-601S Mini is a mini, multi-function fixture designed to make screen removal, back-glass service, and adhesive pressure-holding simple and repeatable on phone frames. It combines a compact body with soft non-marring pads, quick jaw adjustment, and a precision pressure screw to secure assemblies during separation, scraping, cleaning, gluing, alignment, and curing. Built for bench work under a microscope and compatible with hot-air workflows, RL-601S gives you clean access to edges and seams—without scuffing frame paint.
✅ Two-mode use: dismantling & pressure-holding
🛡️ Finish-safe pads: hold frames without scratching paint
🔩 Precision pressure screw: controlled clamping force for glue curing
🔁 Quick-adjust jaws: rapid setup for different phone sizes
🧲 Stable base: anti-slip feet for confident bench work
🔬 Microscope-friendly: low profile for comfortable hand positioning
🔥 Hot-air compatible: safe access to seams and adhesive edges
What It Does Best
Back-glass & frame service: secure the housing while you scrape, lift, or clean adhesive.
Screen removal prep: hold the frame steady for controlled entry with a separation card.
Adhesive curing: use the pressure screw to apply uniform, repeatable pressure on new glass, frames, or small modules while glue sets.
Edge alignment: keep bezels aligned as you replace tapes/foam and re-fit shields.
Small module fixture: stabilize camera islands, side button brackets, speaker housings while re-bonding.
Why Technicians Choose RL-601S
✅ No-damage clamping: soft pads and broad contact resist slip without marking delicate finishes.
🎯 Controlled pressure: the threaded screw lets you dial-in force so adhesives cure flat and true.
⏱️ Fast changeovers: open, seat, and clamp in seconds; flip orientation as needed.
🧱 Rock-solid stance: anti-slip feet stop drift under hot air or scraping loads.
🧰 Versatile footprint: fits on crowded benches, works alongside preheaters and vises.
Typical Workflows
Back-glass dismantling:
✅ Clamp the frame on padded jaws → warm the perimeter → insert a plastic card → work around evenly.
Screen replacement pressure:
✅ After cleaning and new adhesive, position the assembly → bring the pressure screw down with a flat pad → apply steady pressure during curing.
Frame straightening & tape install:
✅ Hold the device true → dress foam/tape strips → verify seam gaps before final fit.
Connector bracket re-bond:
✅ Fix the housing → spot-heat and press the bracket/glass patch until set.
Pro Techniques & Tips
Mask first: use Kapton/foil shields to protect paint near hot zones.
Even contact: center the pressure pad to avoid tilt; add a thin silicone square if needed.
Adhesive timing: let heat soak a few seconds before scraping to reduce effort and residue.
Edge discipline: approach from off-edge with hot air; keep the nozzle moving to avoid blistering paint.
Repeatability: mark preferred jaw positions for frequent models to slash setup time.
Safety & Handling
Do not overtighten the pressure screw—let pad friction and flatness do the work.
Keep solvents off pads; wipe with a dry cloth after use.
Allow hot parts to cool before re-clamping or flipping.
Maintain ESD practice on mat and strap during board-adjacent tasks.
Specifications
| Category | Parameter | Value |
|---|
| Model | Code | RELIFE RL-601S Mini |
| Function | Modes | Dismantling & Pressure-holding fixture |
| Clamping | Pads | Soft, non-marring finish-safe pads |
| Pressure | Control | Precision screw for uniform curing force |
| Adjustment | Jaws | Quick-adjust for various phone sizes |
| Base | Stability | Anti-slip feet, low-profile stance |
| Use With | Tools | Microscope, hot air, preheaters, scrapers |
| Applications | Tasks | Back-glass, screen edges, frame alignment, adhesive curing |
| In-Box | Contents | RL-601S fixture with pads & pressure screw |
The RL-601S is a bench fixture for mobile devices; use gentle, evenly distributed pressure for adhesive work.
What’s in the Box
📦 RELIFE RL-601S Mini Multi-Function Fixture
🧰 Soft pad set (pre-installed)
🔩 Integrated pressure screw
🗒️ Quick usage note
