Description

Sunkko 709a Battery Spot Welder 18650 Precision Pulse Welding Machine With Mobile Soldering Pen Lithium Battery Weld Spot Welder

SUNKKO® 709A Battery Spot Welding Machine for 18650 Lithium Batteries + Soldering Iron

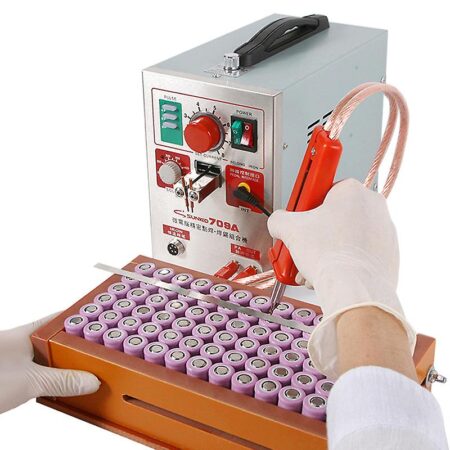

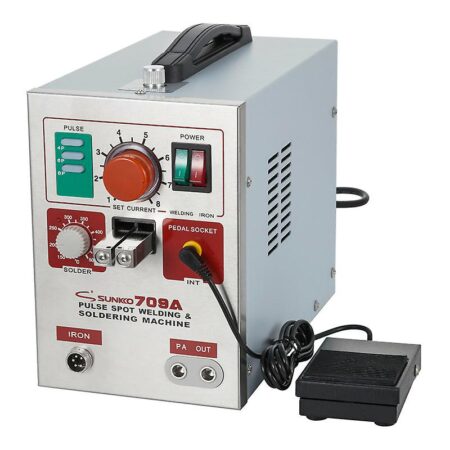

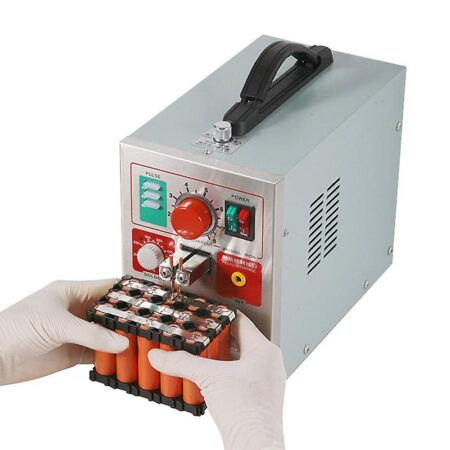

Sunkko 709A Lithium Battery Spot Welder With Welder Pen

1.The machine is a combination of battery spot welding and circuit board solder, which makes your work more convenient.
2.Fixed spot-welding head and mobile spot-welding pen are combined together in one machine,so that the welding will become flexible.
3.Possess the function of 2,4,6,8 welding pulses selection, make the solder joint reliable.
4.Possess welding current rapid regulator, selecting the current will become quick and efficient.
5.The anti-static soldering station which controls the temperature accurately ,it is suited for welding any intergrated circuit or wiring.
6.The removable footswitches can satisfy the reqirement of welding position or sophisticated technology.
7.The fixed spot-welding head has pressure regulating device which makes the solder connections more reliable.

Datasheet:  Download

Tips:
1. This spot welder can be used to weld the nickel, nickel plated steel, nickel plated iron, iron and other alloys, but it can’t be used to weld metal including copper and aluminum.
2. The welding thickness 0.03 – 0.3 mm indicates the thickness range of all alloy it can be weld, for nickel or nickel plated steel, the range is 0.08 – 0.3 mm.
3. Rated current of tripping device of the leakage protection switch should be up to 60A.
4. For the requirement for electric leakage switch is more than 60 A, it is not recommended to use at home.
