DC-DC Step Down Converter Variable 5A XL4015
Original price was: 115.00 EGP.85.00 EGPCurrent price is: 85.00 EGP.
DC-DC Step Down Converter Variable 5A XL4015
Quantities are confirmed after reviewing
your order. Orders are normally prepared
and shipped within 3–5 business days.
Online availability does not necessarily
mean the product is currently available
at the branch.
تأكيد الكميات بيتم بعد مراجعة الأوردر،
وتجهيز وشحن الطلب بيستغرق عادة من
3 إلى 5 أيام عمل.
توافر المنتج على الموقع لا يعني بالضرورة
توافره داخل الفرع، لذلك اعمل الأوردر
مسبقًا لتأكيد الكمية وتجهيزه.
You are already subscribed
We will notify you when this
product is available again.
أنت مشترك بالفعل، وسنرسل لك
تنبيهًا عند توافر المنتج.
Fast shipping
Delivery across Egypt
Flexible payment
Cash and online options
Quantity confirmation
Confirmed after order review
Technical support
Help choosing compatible parts
- Description
Description

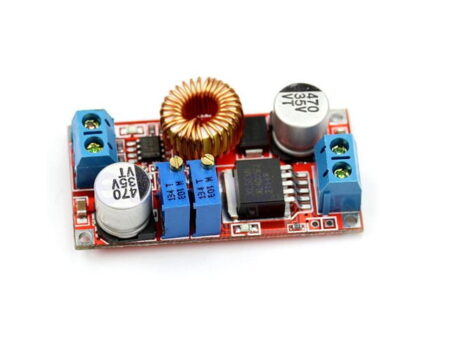

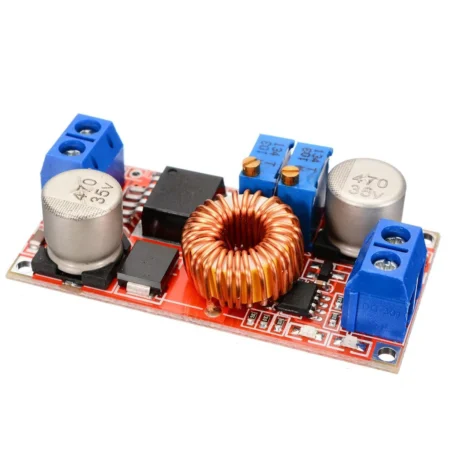

DC-DC Step Down Converter Variable 5A XL4015
Variable Output (Volte & Current) DC-DC Step Down Converter
Features of XL4015:
- Output voltage: 0.8V-30V
- Input voltage: 5V-32V
- Output current: adjustable maximum 5A
- Size: 51 * 26.3 * 14 (L * W * H) (mm)
- Operating Temperature: -40 ℃ to 85 ℃
- Voltage Regulation: ± 2.5%
- Load Regulation: ± 0.5%
- Output ripple: 50mV (max) 20M bandwidth
- Switching frequency: 300KHz
- Conversion efficiency: 95% (the highest)
- Rectification: non-synchronous rectification
- Module Properties: non-isolated constant current and voltage module.
- Advantage:
- CC CV
- Low ripple
- When the module charges a battery, it first use constant current to protect the battery.
Specifications:
| Input Voltage | 8V DC ~ 36V DC |
| Output Voltage | 1.25V DC ~ 32V DC |
| Output Current | Adjustable maximum 5A |
| Voltage Regulation | ± 2.5% |
| Load Regulation | ± 0.5% |
| Output Ripple | 50mV (max) 20M bandwidth |
| Switching Frequency | 300KHz |
| Conversion Efficiency | 95% (the highest) |
| Rectification | Non-synchronous rectification |
| Module Properties | Non-isolated constant current and voltage module |
| Size | 51 × 26.3 × 14 (L x W x H) (mm) |
| Operating Temperature | -40 °C to +85 °C |

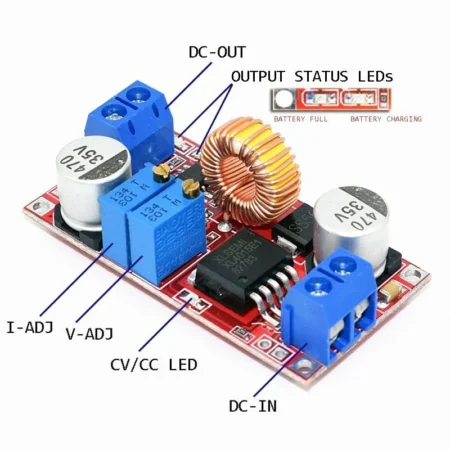

PINOUT:
