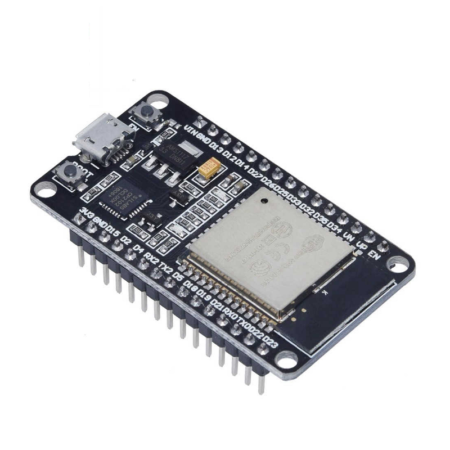

Out of stock ESP-WROOM-32 CH9102X WIFI Bluetooth Networking Smart Component Development Board ESP32

ESP-WROOM-32 CH9102X WIFI Bluetooth Networking Smart Component Development Board ESP32

400.00 EGP

ESP-WROOM-32 CH9102X Board ESP32

  1. Ultra-low-power management.
  2. 4 MB Flash.
  3. Current: 80 mA.
  4. Supply Voltage: 3.0 V ~ 3.6 V.
  5. Data Rate: 150 Mbps.
  6. Frequency: 2.4 GHz.
SKU ESP32 Board 30pin CH9102X SKU SYS Xb1795 Availability Out of stock
Quantities are confirmed after reviewing your order. Orders are normally prepared and shipped within 3–5 business days. Online availability does not necessarily mean the product is currently available at the branch. تأكيد الكميات بيتم بعد مراجعة الأوردر، وتجهيز وشحن الطلب بيستغرق عادة من 3 إلى 5 أيام عمل. توافر المنتج على الموقع لا يعني بالضرورة توافره داخل الفرع، لذلك اعمل الأوردر مسبقًا لتأكيد الكمية وتجهيزه.
You are already subscribed We will notify you when this product is available again. أنت مشترك بالفعل، وسنرسل لك تنبيهًا عند توافر المنتج.
☎ Need help? Call us 0104 453 9059
Add to wishlist
Share
Fast shipping Delivery across Egypt
Flexible payment Cash and online options
Quantity confirmation Confirmed after order review
Technical support Help choosing compatible parts
Tags
Christmas 2026 Development Board ESP32-32

Description

ESP-WROOM-32 CH9102X WIFI Bluetooth Networking Smart Component Development Board ESP32

This is ESP WROOM 32 MCU Module. ESP WROOM 32 is a powerful, generic WiFi-BT-BLE MCU module that targets a wide variety of applications, ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming, and MP3 decoding.

At the core of this module is the ESP32S chip, which is designed to be scalable and adaptive. There are 2 CPU cores that can be individually controlled or powered, and the clock frequency is adjustable from 80 MHz to 240 MHz.

The user may also power off the CPU and make use of the low-power coprocessor to constantly monitor the peripherals for changes or crossing of thresholds. ESP32S integrates a rich set of peripherals, ranging from capacitive touch sensors, Hall sensors, low-noise sense amplifiers, SD card interface, Ethernet, high-speed SDIO/SPI, UART, and I²C.

Using Bluetooth, users can connect to their phone or broadcast low energy beacons for its detection. The use of Wi-Fi enables a large physical range, as well as a direct connection to the internet via a Wi-Fi router. Perfect for wearable electronic or battery-powered applications, the ESP32 chip uses less than 5µA.

In addition, this module can support data rates of up to 150 Mbps and 22 dBm output power at the PA in order to allow for the widest physical range.

To learn how to run the “Hello world” program using ESP 32 Click here!

Application of ESP-WROOM-32 :
  1. Universal low power IoT sensor hub.
  2. Home automation.
  3. Universal low power IoT recorder.
  4. Mesh network.
  5. Video streaming of the camera.
  6. Industrial wireless control.
  7. OTT TV box / set-top box device.
  8. Baby monitor.
  9. Smart Socket.
  10. Sensor networks.
  11. Wi-Fi toys: Counters, toys, Anti-lost device.
  12. Wearable electronic products.
  13. Wi-Fi speech recognition device.
  14. Wi-Fi location-aware devices.

Features :

  1. Integrated 520 KB SRAM.
  2. Hybrid Wi-FI & Bluetooth.
  3. High level of integration.
  4. Ultra-low-power management.
  5. 4 MB Flash.
  6. On-board PCB antenna.

Package Includes :

1 x ESP-WROOM-32 WIFI Bluetooth Networking Smart Component Development Board

ProcessorTwo Low-Power Xtensa 32-bit LX6 Microprocessors
Operating voltage (v)3.0V – 3.6V
Operating current (mA)80
Clock Frequency (MHz)80 ~ 240
Flash memory (MB)4
Data Rate (Mbps)150
SRAM Memory (KB)520
Length (mm)28
Width (mm)50
Height (mm)14
Weight (gm)10
Shipment Weight0.015 kg
Shipment Dimensions6 × 8 × 2 cm

DataSheet
