Arduino MKR WAN 1310 LoRa Connectivity (Original Made In Italy)

Overview

Arduino MKR WAN 1310 allows you to build your next smart project. Ever wanted an automated house? Or a smart garden?

The Arduino MKR WAN 1310 board provides a practical and cost effective solution to add LoRa® connectivity to projects  requiring low power. This open source board can be connected to the Arduino IoT Cloud.

Better and More Efficient

The MKR WAN 1310, brings in a series of improvements when compared to its predecessor, the MKR WAN 1300. While still based on the Microchip® SAMD21 low power processor, the Murata CMWX1ZZABZ LoRa® module, and the MKR family’s characteristic crypto chip (the ECC508), the MKR WAN 1310 includes a new battery charger, a 2MByte SPI Flash, and improved control of the board’s power consumption.

Improved Battery Power

The latest modifications have considerably improved the battery life on the MKR WAN 1310. When properly configured, the power consumption is now as low as 104uA! It is also possible to use the USB port to supply power (5V) to the board; run the board with or without batteries – the choice is yours.

On-board Storage

Data logging and other OTA (Over The Air) functions are now possible since the inclusion of the on board 2MByte Flash. This new exciting feature will let you transfer configuration files from the infrastructure onto the board, create your own scripting commands, or simply store data locally to send it whenever the connectivity is best. Whilst the MKR WAN 1310’s crypto chip adds further security by storing credentials & certificates in the embedded secure element.

These features make it the perfect IoT node and building block for low-power wide-area IoT devices.

Need Help?

Check the Arduino Forum for questions about the Arduino Language, or how to make your own Projects with Arduino. Need any help with your board please get in touch with the official Arduino User Support as explained in our Contact Us page.

Tech Specs

The Arduino MKR WAN 1310 is based on the SAMD21 microcontroller.

MICROCONTROLLERSAMD21 Cortex®-M0+ 32bit low power ARM MCU (datasheet)
RADIO MODULECMWX1ZZABZ (datasheet)
BOARD POWER SUPPLY (USB/VIN)5V
SECURE ELEMENTATECC508 (datasheet)
SUPPORTED BATTERIESrechargeable Li-Ion, or Li-Po, 1024 mAh minimum capacity
CIRCUIT OPERATING VOLTAGE3.3V
DIGITAL I/O PINS8
PWM PINS13 (0 .. 8, 10, 12, 18 / A3, 19 / A4)
UART1
SPI1
I2C1
ANALOG INPUT PINS7 (ADC 8/10/12 bit)
ANALOG OUTPUT PINS1 (DAC 10 bit)
EXTERNAL INTERRUPTS8 (0, 1, 4, 5, 6, 7, 8, 16 / A1, 17 / A2)
DC CURRENT PER I/O PIN7 mA
CPU FLASH MEMORY256 KB (internal)
QSPI FLASH MEMORY2MByte (external)
SRAM32 KB
EEPROMno
CLOCK SPEED32.768 kHz (RTC), 48 MHz
LED_BUILTIN6
USBFull-Speed USB Device and embedded Host
CARRIER FREQUENCY433/868/915 MHz
LENGTH67.64 mm
WIDTH25 mm
WEIGHT32 gr.

Documentation

OSH: Schematics

The MKR WAN 1310 is open-source hardware! You can build your own board using the following files:

EAGLE FILES IN .ZIP

SCHEMATICS IN .PDF

FRITZING IN .FZPZ

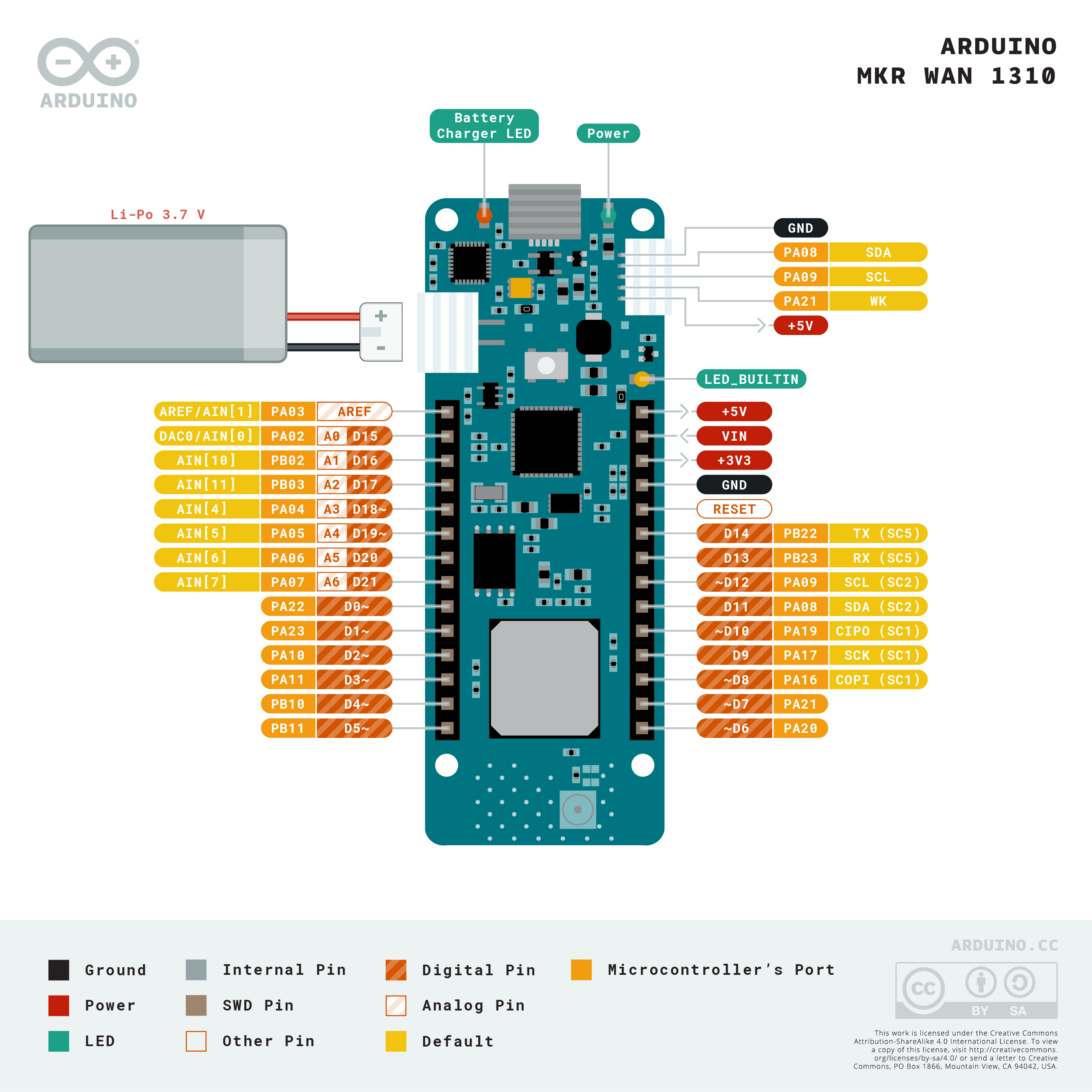

Pinout Diagram

Pinout MKRwan1310 latest 1

Download the full pinout diagram as PDF here.
