Out of stock Original Arduino Uno Rev3 Made in ITALY

Original Arduino Uno Rev3 Made in ITALY

2,200.00 EGP

Manufacturer: Arduino Officials
Micro-controller : ATmega328P.
Operating Voltage: 5V.
Input Voltage (recommended) : 7-12V.
Digital I/O Pins: 14 (of which 6 provide PWM output).
Analog Input Pins: 6.

SKU AR_UnoRev3 Original ITALY SKU SYS x3596 Availability In stock

Quantities are confirmed after reviewing your order. Orders are normally prepared and shipped within 3–5 business days. Online availability does not necessarily mean the product is currently available at the branch. تأكيد الكميات بيتم بعد مراجعة الأوردر، وتجهيز وشحن الطلب بيستغرق عادة من 3 إلى 5 أيام عمل. توافر المنتج على الموقع لا يعني بالضرورة توافره داخل الفرع، لذلك اعمل الأوردر مسبقًا لتأكيد الكمية وتجهيزه.

Original Arduino Uno Rev3 Made in ITALY

This item: Original Arduino Uno Rev3 Made in ITALY

2,200.00 EGP

Cable For Arduino UNO/MEGA (USB A to B) 30cm

1 × Cable For Arduino UNO/MEGA (USB A to B) 30cm

USB Cable For Arduino Uno (150cm)

30.00 EGP

Cable For Arduino UNO/MEGA (USB A to B) 5 Meter Blue

1 × Cable For Arduino UNO/MEGA (USB A to B) 5 Meter Blue

110.00 EGP

Fast shipping Delivery across Egypt

Flexible payment Cash and online options

Quantity confirmation Confirmed after order review

Technical support Help choosing compatible parts

Description

Original Arduino Uno Rev3 Made in ITALY

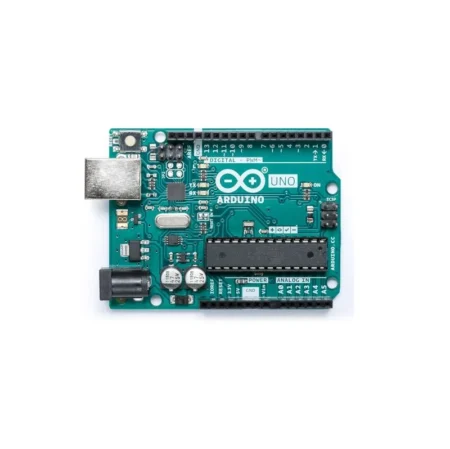

This Arduino Uno is an original microcontroller board from Arduino officials based on the ATmega328P. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz quartz crystal, a USB connection, a power jack, an ICSP header and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started. You can tinker with your UNO without worrying too much about doing something wrong, worst case scenario you can replace the chip for a few dollars and start over again.

“Uno” means one in Italian and was chosen to mark the release of Arduino Software (IDE) 1.0. The Uno board and version 1.0 of Arduino Software (IDE) were the reference versions of Arduino, now evolved to newer releases. The Original Arduino Uno Rev3 board is the first in a series of USB Arduino boards and the reference model for the Arduino platform; for an extensive list of current, past or outdated boards see the Arduino index of boards.

Getting Started

You can find in the Getting Started section all the information you need to configure your board, use the Arduino Software (IDE), and start tinker with coding and electronics.

Useful Links

On the Software on the Arduino Forum
On Projects on the Arduino Forum
On the Product itself through our Customer Support

Package Includes:

1 x Original Arduino Uno Rev3

SCHEMATIC DOWNLOAD

Model Type	Arduino Uno R3
Microcontroller Chip	ATmega328P
Operating Voltage (VDC)	5
Input Voltage(Recommended)	7-12V
Analog I/O Pins	6
Digital I/O Pins	14 (of which 6 provide PWM output)
PWM Digital I/O Pins	6
Clock Speed	16 MHz
Flash Memory	32 KB
SRAM	2
EEPROM	1 KB (ATmega328P)
DC Current for 3.3V Pin (mA)	50
DC Current per I/O Pin (mA)	20
On Board LEDs	Yes
Operating Temperature (°C)	-10 to 60
Weight (gm)	25
Length (mm)	68.6
Width (mm)	53.4
Height (mm)	12.5
Shipment Weight	0.05 kg
Shipment Dimensions	9 × 6 × 3 cm
