Description

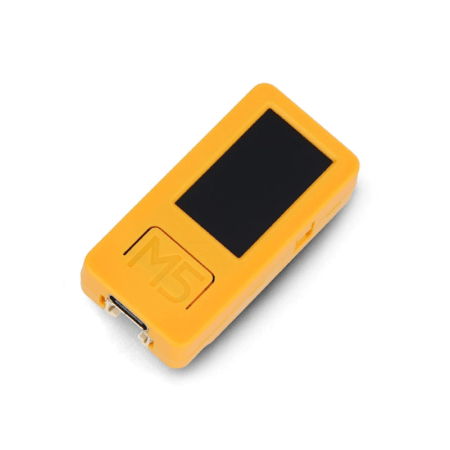

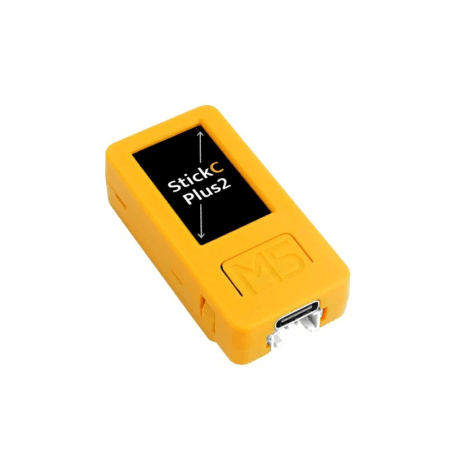

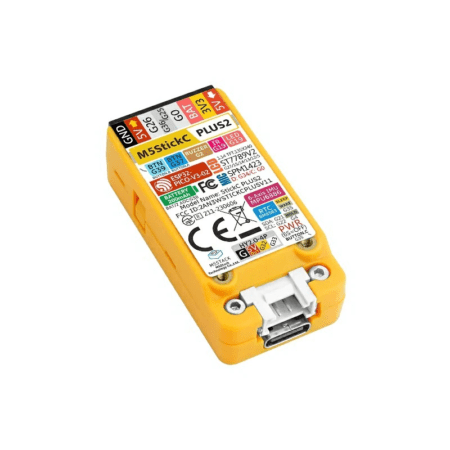

M5Stack M5StickC PLUS2 ESP32 Mini IoT Development Kit

M5StickC PLUS2 is an iterative version of M5StickC PLUS, featuring the ESP32-PICO-V3-02 chip as the main controller with built-in WiFi functionality. The compact device integrates a wealth of hardware resources within its small form factor, including infrared, RTC, microphone, LED, IMU, buttons, buzzer, and more. It boasts a 1.14-inch TFT screen with a resolution of 135*240, driven by the ST7789V2. The battery capacity has been increased to 200mAh, and the interface also supports HAT and Unit series products. This compact and versatile development tool is designed to spark limitless creative possibilities.

M5StickC PLUS2 facilitates the rapid prototyping of IoT products, streamlining the entire development process. Even beginners in programming can easily build interesting applications and apply them to real-life scenarios using M5StickC PLUS2.

Applications

• Internet of things terminal controller
• Wearable devices
• Stem education product
• DIY creation

Power on:
Wake up can be started by pressing “BUTTON C” for more than 2 seconds, or IRQ signal triggered by RTC regularly. After triggering the wake up signal, the hold(G4) pin needs to be set to a high level (1) in program initialization to maintain the power supply, otherwise the device will enter the shutdown state again.
Power off:
When there is no USB external power supply, press “BUTTON C” for more than 6 seconds; Or when there is no USB external power supply, set HOLD(GPIO4)=0 in the program operation, that is, to achieve power off.

Features:

1. ESP32-­PICO-­V3-­02-Base，support WiFi
2. Built-in 6-Axis IMU
3. IR transmitter
4. Microphone
5. RTC
6. Buttons, LCD(1.14 inch)
7. Built-in Lithium Polymer Battery@200mAh
8. Extendable Socket
9. Built-in Passive Buzzer
10. Wearable & Wall mounted
11. Compatible with multi-platform development:
    • UIFlow
    • MicroPython
    • Arduino
    • .NET nanoFramework

Package Includes:

1x M5StickC Plus2
